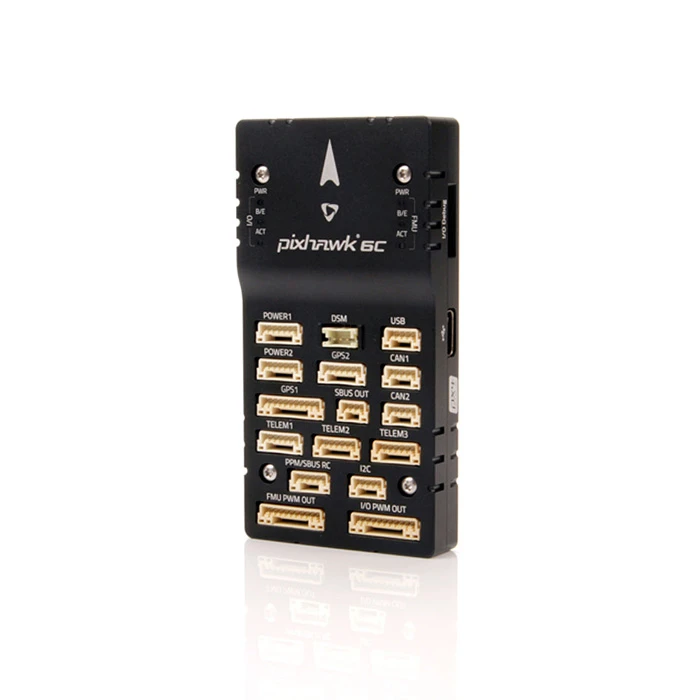

Holybro Pixhawk 6C PX4 Autopilot Flight Controller (Aluminum Case)

Holybro Pixhawk 6C PX4 Autopilot Flight Controller (Aluminum Case) - Image 2

Holybro Pixhawk 6C PX4 Autopilot Flight Controller (Aluminum Case) - Image 3

Holybro Pixhawk 6C PX4 Autopilot Flight Controller (Aluminum Case) - Image 4

Holybro Pixhawk 6C PX4 Autopilot Flight Controller (Aluminum Case) - Image 5

Holybro Pixhawk 6C PX4 Autopilot Flight Controller (Aluminum Case) -Drone Supply Store holybro pixhawk 6c px4 autopilot flight controller 31

Holybro Pixhawk 6C PX4 Autopilot Flight Controller (Aluminum Case) -Drone Supply Store holybro pixhawk 6c px4 autopilot flight controller 51

Holybro Pixhawk 6C PX4 Autopilot Flight Controller (Aluminum Case)

Name: Unmatched Quality: The Impeccable Holybro Pixhawk 6C PX4 Autopilot Flight Controller (Aluminum Case) Available at Drone Supply Store.
SKU: CMMTD 9690902442
Price: 97.99 USD
Availability: InStock

Original price was: $309.00.Current price is: $97.99.

Power Module

M9N GPS

Clear

SKU: CMMTD 9690902442 Categories: Flight Controller/GPS, MULTI-ROTORS

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

PRODUCT DESCRIPTION

The Holybro Pixhawk® 6C is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed.
Inside the Pixhawk® 6C, you can find an STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C’s H7 micro controller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.
The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

The Pixhawk® 6C is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points
—High performance H7 Processor with clock speed up to 480 MHz
–New cost-effective design with low-profile form factor
–Redundant inertial measurement unit (IMU) from Bosch® & InvenSense®
–Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
–IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Specifications:
Processors & Sensors

FMU Processor: STM32H743
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors
- Accel/Gyro: ICM-42688-P
- Accel/Gyro: BMI055
- Mag: IST8310
- Barometer: MS5611

Electrical data

Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V

Current Ratings:
- Telem1 Max output current limiter: 1.5A
- All other port combined output current limiter: 1.5A

Mechanical data

Dimensions: 84.8 * 44 * 12.4 mm

Weight: 59.3g

Interfaces

16- PWM servo outputs (8 from IO, 8 from FMU)

3 general purpose serial ports
- Telem1 – Full flow control, separate 1.5A current limit
- Telem2 – Full flow control
- Telem3

2 GPS ports
- GPS1 – Full GPS port (GPS plus safety switch)
- GPS2 – Basic GPS port

1 I2C port
- Supports dedicated I2C calibration EEPROM located on sensor module

2 CAN Buses
- CAN Bus has individual silent controls or ESC RX-MUX control

2 Debug port
- FMU Debug
- I/O Debug

Dedicated R/C input for Spektrum / DSM and S.BUS, CPPM, analog / PWM RSSI

Dedicated S.BUS output

2 Power input ports (Analog)

Package Included:

1 x Pixhawk 6C Flight Controller Module

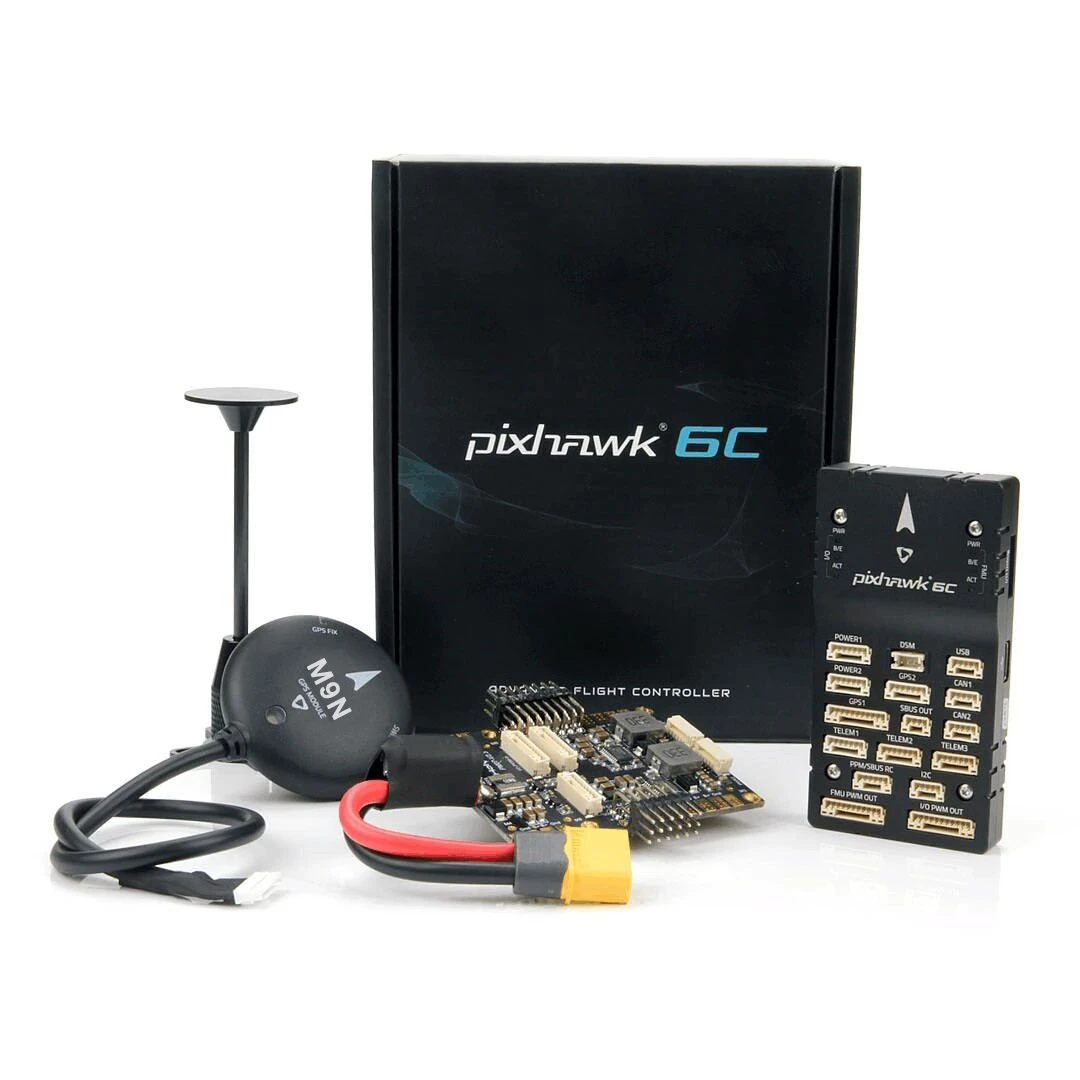

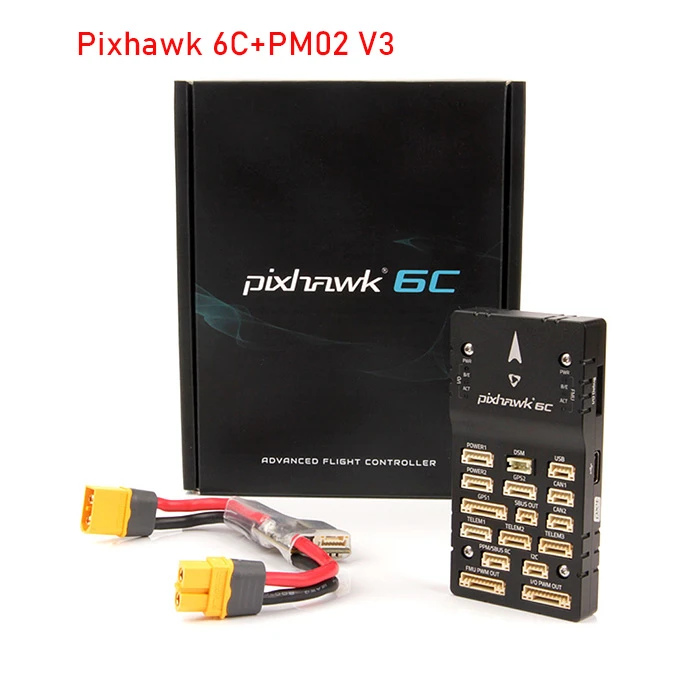

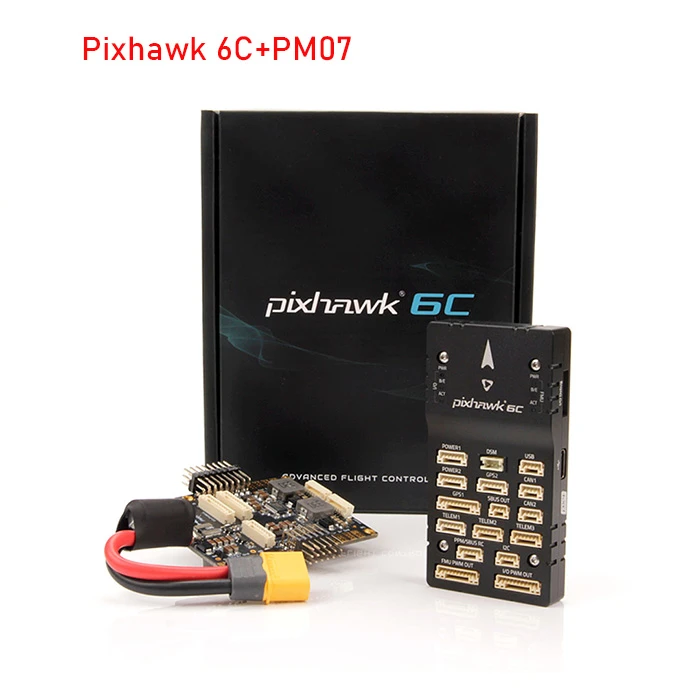

1 x PM02 V3 12S Power Module / PM07 12S Power Module (optional)
1 x Cable Set

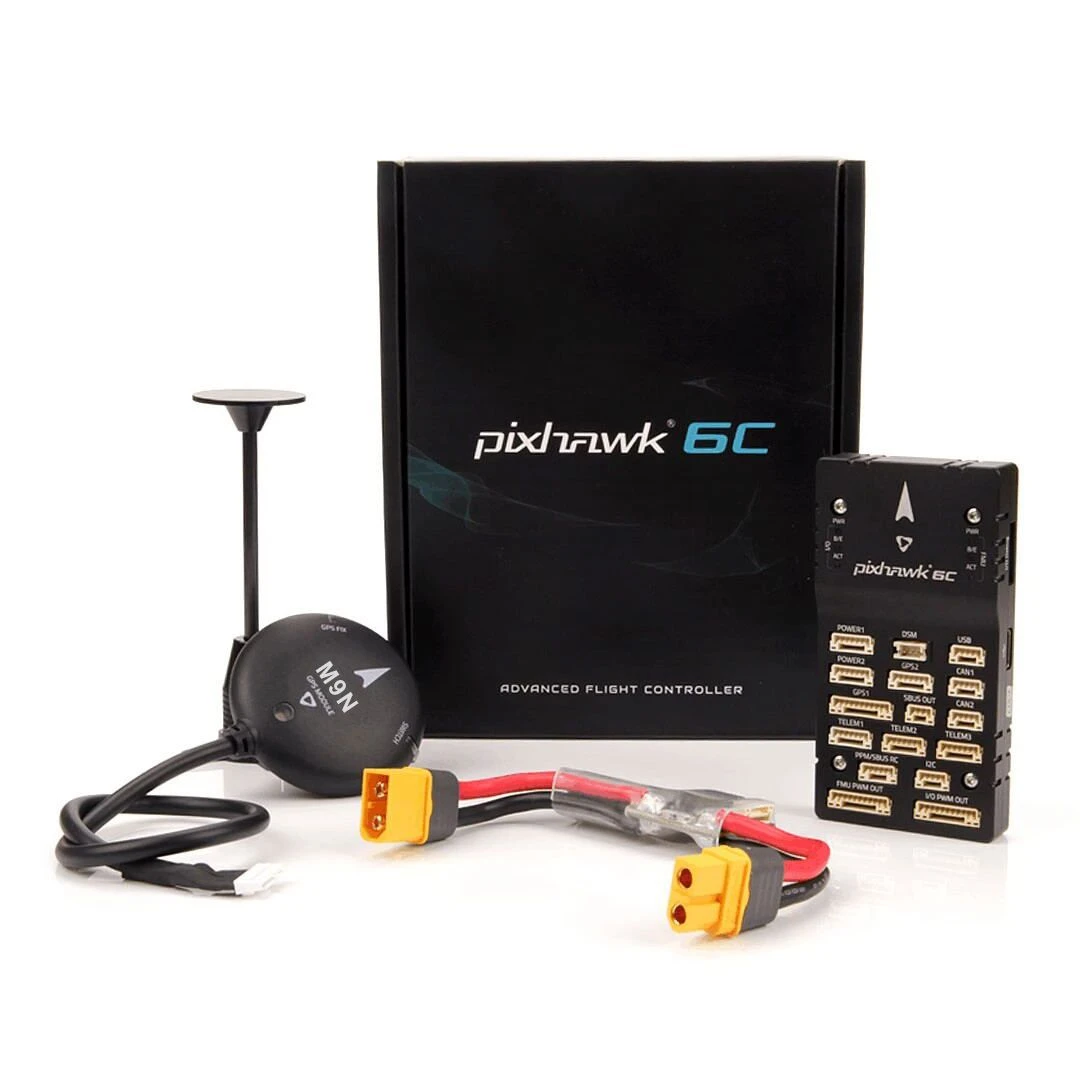

1 x M9N GPS (optional)

Some information you may need:
Support Firmware
Pixhawk 6C is shipped with PX4 master build.

PX4
Pixhawk 6C support was added in PX4 master.
Stable Release v1.13.0 does not support Pixhawk 6C. It will be added in stable v1.13.1 that will be released soon.

QGroundControl
Must use Daily QGC Build at this moment

Ardupilot
Must use “latest” Firmware at the moment, it will part of the 4.2.3 stable release.
Ardupilot Firmware Download
Copter: https://firmware.ardupilot.org/Copter/latest/Pixhawk6C/
Plane: https://firmware.ardupilot.org/Plane/latest/Pixhawk6C/
