Holybro Pixhawk 6X Autopilot Pixhawk Flight Controller With UBLOX M8N GPS

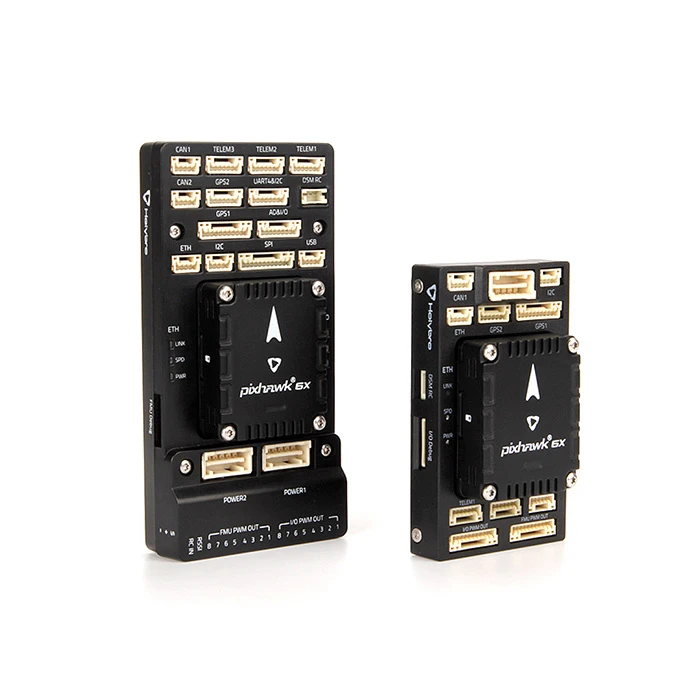

Holybro Pixhawk 6X is the most advanced Pixhawk Autopilot flight controller with H7 processor. There are two versions of the baseboard available: one  is the standard size (52.4 x 103.4 x 16.7mm), and the other is mini size (43.4 x 72.8 x 14.2 mm).


The Pixhawk® 6X is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6X Open Standard and the Pixhawk® Autopilot Bus Standard. It comes with PX4 Autopilot® pre-installed. Inside the Pixhawk® 6X, you can find an STMicroelectronics® based STM32H753, paired with sensor technology from Bosch®, InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.


The Pixhawk® 6X’s H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.


The FMUv6X open standard includes high-performance, low-noise IMUs on board, designed for better stabilization. Triple redundant IMU & double redundant barometer on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability. An independent LDO powers every sensor set with independent power control. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY, high-speed communication with mission computers via ethernet is now possible.


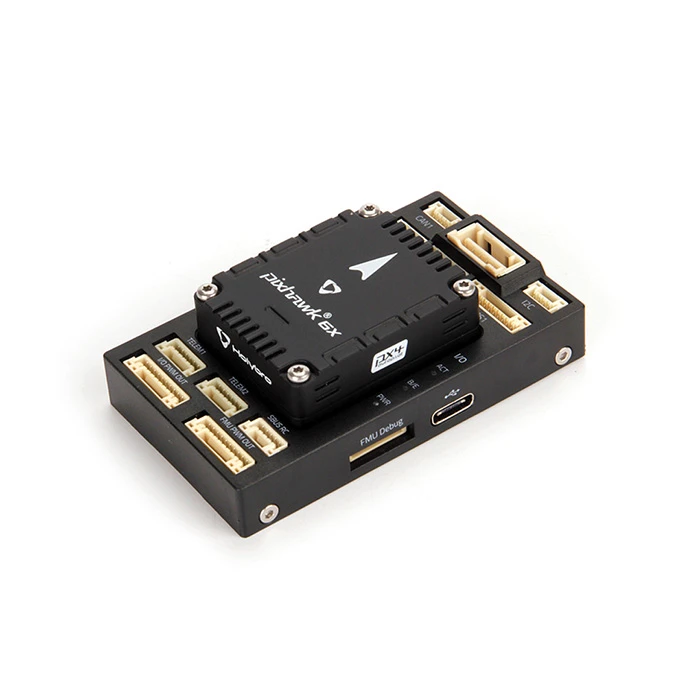

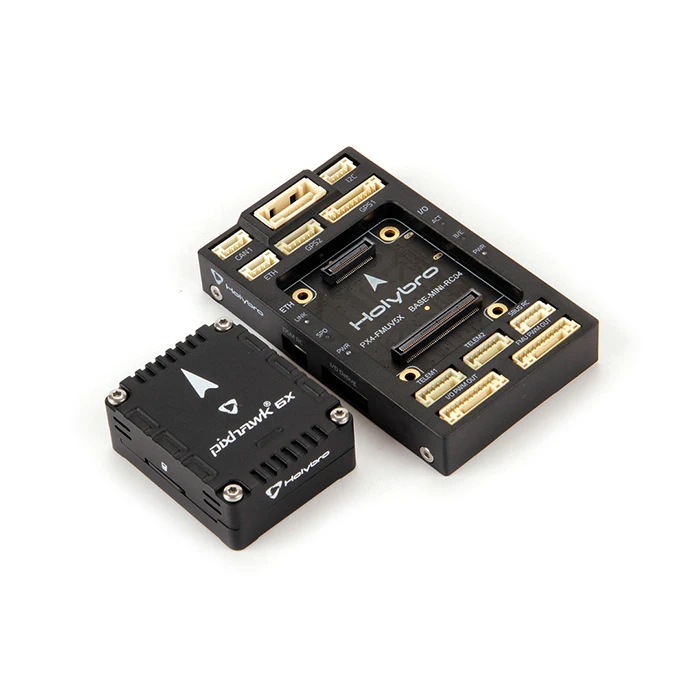

The Pixhawk® 6X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application. Holybro offers the Pixhawk Baseboard and the Pixhawk Mini-Baseboard, each with different form factor and interfaces.

Key Design Points

• High performance STM32H753 Processor with clock speed up to 480 MHz

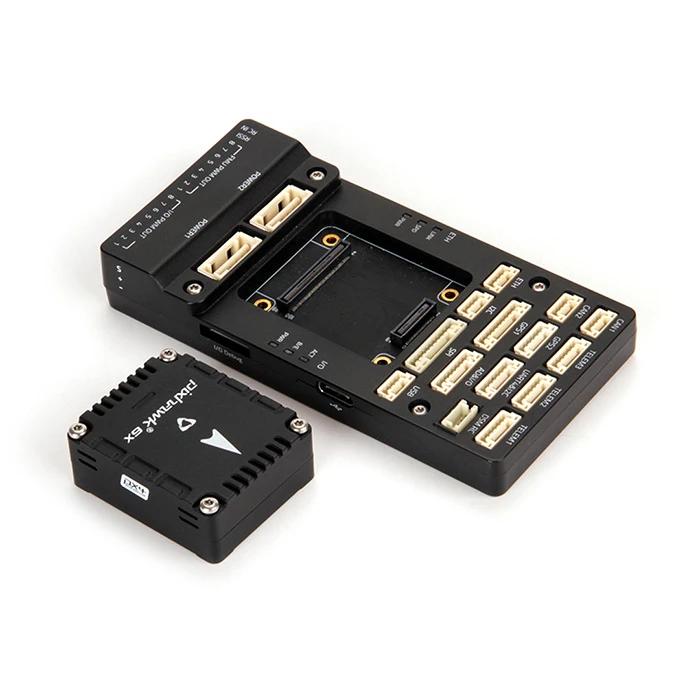

• Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
• Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses
• Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
• Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
• Ethernet interface for high-speed mission computer integration
• IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Specifications:
FMU Processor: STM32H753
32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
IO Processor: STM32F100
32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM
On-board sensors
Accel/Gyro: ICM-20649
Accel/Gyro: ICM-42688-P
Accel/Gyro: ICM-42670-P
Mag: BMM150
Barometer: 2x BMP388
Electrical data
Voltage Ratings:
Max input voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Current Ratings:
Telem1 output current limiter: 1.5A
All other port combined output current limiter: 1.5A
Mechanical data

Dimensions
Flight Controller Module: 38.8 x 31.8 x 14.6mm
Standard Baseboard: 52.4 x 103.4 x 16.7mm
Mini Baseboard: 43.4 x 72.8 x 14.2 mm

Weight
Flight Controller Module: 23g
Standard Baseboard: 51g
Mini Baseboard: 26.5g

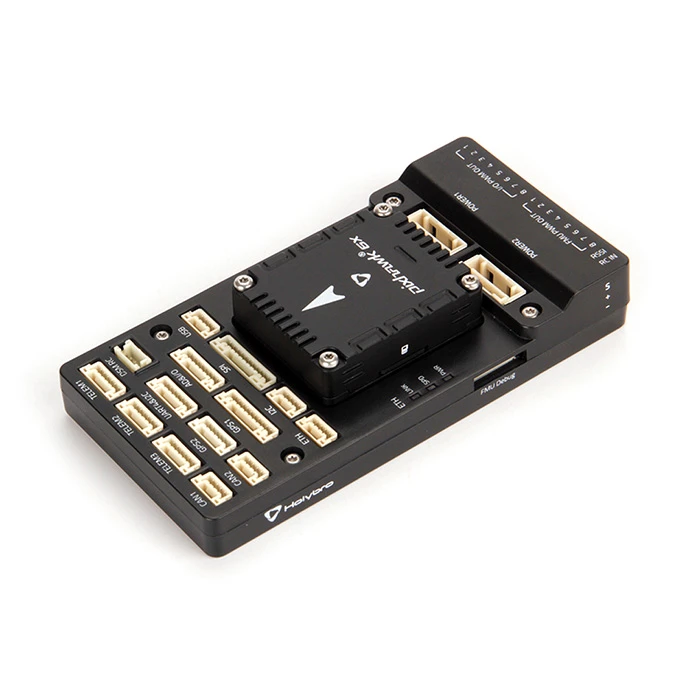

Interfaces
16- PWM servo outputs
R/C input for Spektrum / DSM
Dedicated R/C input for PPM and S.Bus input
Dedicated analog / PWM RSSI input and S.Bus output
4 general purpose serial ports
3 with full flow control
1 with separate 1.5A current limit (Telem1)
1 with I2C and additional GPIO line for external NFC reader
2 GPS ports
1 full GPS plus Safety Switch Port
1 basic GPS port
1 I2C port
1 Ethernet port
Transformerless Applications
100Mbps
1 SPI bus
2 chip select lines
2 data-ready lines
1 SPI SYNC line
1 SPI reset line
2 CAN Buses for CAN peripheral
CAN Bus has individual silent controls or ESC RX-MUX control
2 Power input ports with SMBus
1 AD & IO port
2 additional analog input
1 PWM/Capture input
2 Dedicated debug and GPIO lines

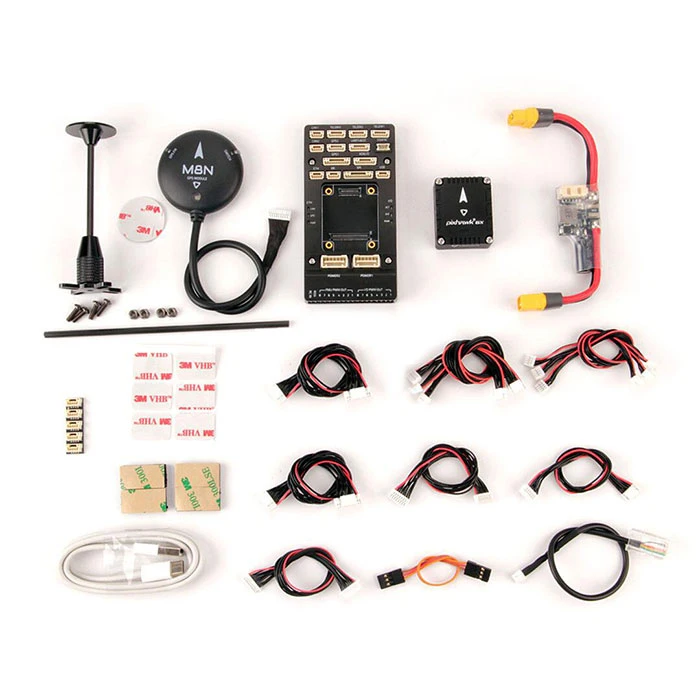

Package Included:

• Pixhawk 6X Flight Controller Module
• Pixhawk Standard Base / Pixhawk Mini Base
• PM02D Power Module
• Cable Set
• M8N GPS (optional)
