Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module - Image 2

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module - Image 3

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module - Image 4

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module - Image 5

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module -Drone Supply Store fc power module 26

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module -Drone Supply Store fc power module 27

Holybro PM07-12S Power Module Pixhawk 4 5X 6X 6C Power Module

Original price was: $45.99.Current price is: $32.19.

SKU: CMMTD 9939162583 Categories: Flight Controller/GPS, MULTI-ROTORS

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

Description
Reviews (0)

PRODUCT DESCRIPTION

The Power Management Board (PM Board) serves the purpose of a Power Module as well as a Power Distribution Board. In addition to providing regulated power to Pixhawk 4 and the ESCs, it sends information to the autopilot about battery’s voltage and current supplied to the flight controller and the motors.

Specifications：
PCB Current: total 120A outputs (MAX)
UBEC 5v output current :3A
UBEC input voltage : 7~51v (2~12s LiPo)
Dimensions:68*50*10 mm
Mounting Holes:45*45mm
Weight: 47.5g

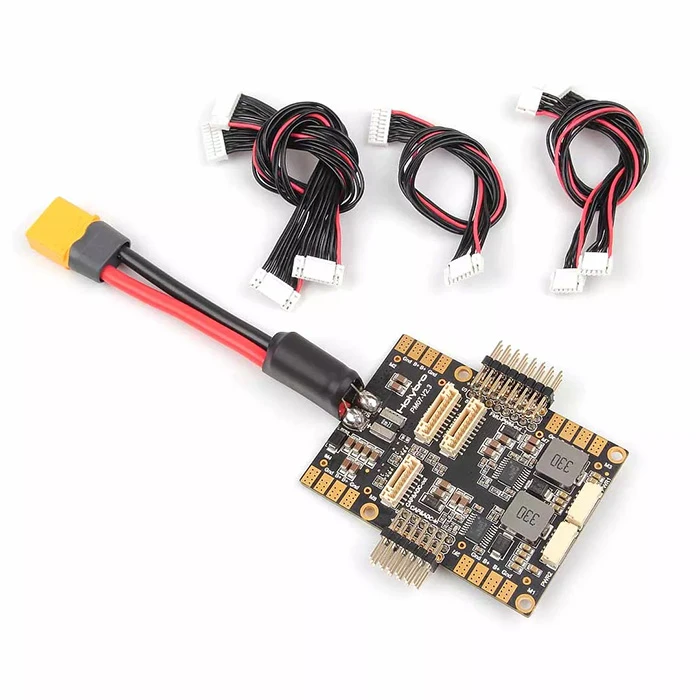

Package Include：
1x Holybro PM07 board
1x 80mm XT60 connector wire (installed)
1x Electrolytic capacito: 220uF 63V (installed)
2x JST GH 10P Cable
1x JST GH 8P Cable
2x JST GH 6P Cable
