Holybro UBLOX M9N GPS For PIXHAWK PX4 PIX32 Flight Controller

Holybro UBLOX M9N GPS For PIXHAWK PX4 PIX32 Flight Controller - Image 2

Holybro UBLOX M9N GPS For PIXHAWK PX4 PIX32 Flight Controller - Image 3

Holybro UBLOX M9N GPS For PIXHAWK PX4 PIX32 Flight Controller - Image 4

Holybro UBLOX M9N GPS For PIXHAWK PX4 PIX32 Flight Controller - Image 5

Holybro UBLOX M9N GPS For PIXHAWK PX4 PIX32 Flight Controller -Drone Supply Store holybro ublox m9n gps for pixhawk px4 pix32 flight controller 41

Holybro UBLOX M9N GPS For PIXHAWK PX4 PIX32 Flight Controller

Name: Get the Lowest Price on Holybro UBLOX M9N GPS For PIXHAWK PX4 PIX32 Flight Controller at Drone Supply Store from United States of America.
SKU: CMMTD 4541212730
Price: 48.30 USD
Availability: InStock

Original price was: $69.00.Current price is: $48.30.

Versions

Clear

SKU: CMMTD 4541212730 Categories: Flight Controller/GPS, MULTI-ROTORS

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

PRODUCT DESCRIPTION

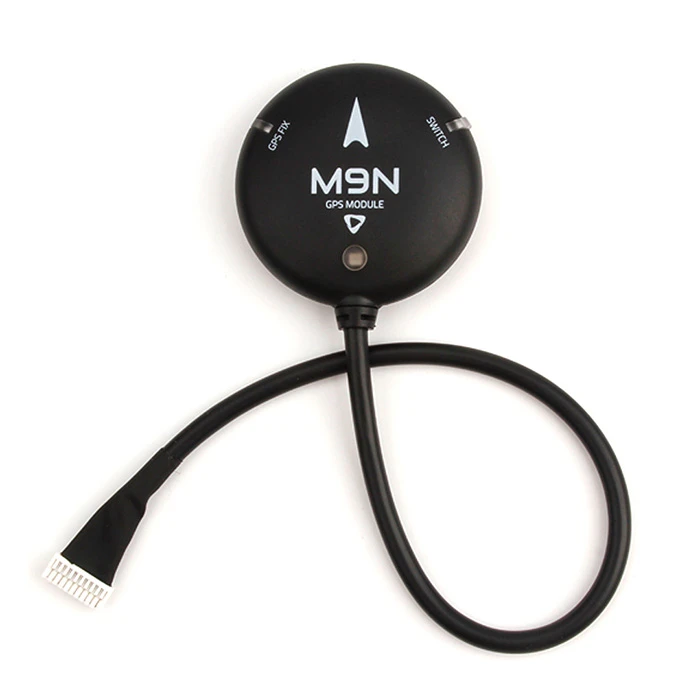

The M9N GPS has an UBLOX M9N module, IST8310 compass, tri-colored LED indicator, and a safety switch. There are 3 different connectors options for different purposes.
This module ships with a baud rate of 115200 5Hz

Features and Specifications:

– Ublox Neo-M9N module
– Industry leading –167 dBm navigation sensitivity
– Cold starts: 26s
– LNA MAX2659ELT+
– 25 x 25 x 4 mm ceramic patch antenna
– Rechargeable Farah capacitance
– Low noise 3.3V regulator
– Current consumption: less than 150mA @ 5V
– Fix indicator LEDs
– Protective case
– 26cm cable included
– Diameter 50mm total size, 32 grams with case.

The Holybro M9N GPS comes with 3 version connectors, suitable for different situations. You can choose the proper one according to your own needs.

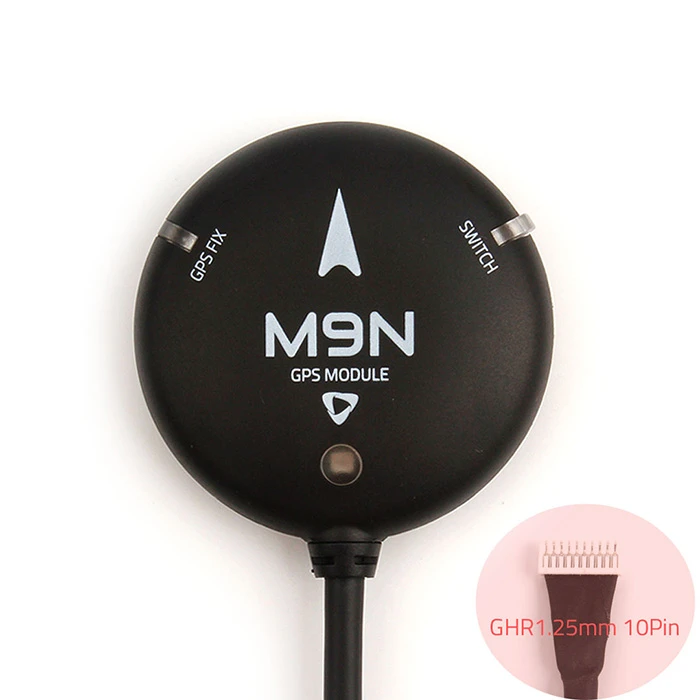

Holybro M9N GPS (JST GHR1.25mm 10 pin cable)–NA0181-12027
This JST GH 10Pin connector can be used on Pixhawk series 10pin “GPS module” or “GPS1” input port.

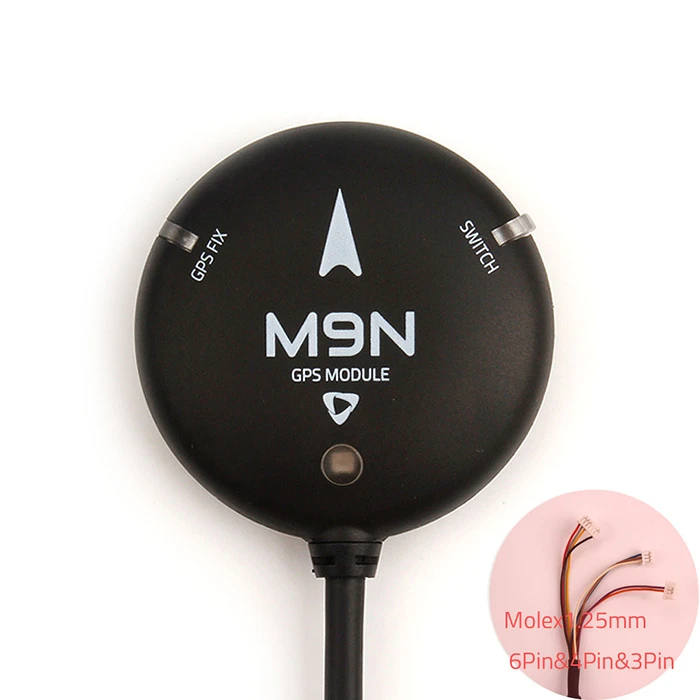

Holybro M9N GPS for Pix32(Molex1. 25mm 6pin & 4pin & 3pin cable)–NA0181-12028
These Molex1 25mm 6pin & 4pin &3pin connectors are for Pix32 “Switch”, “GPS”,and “I2C” input ports.

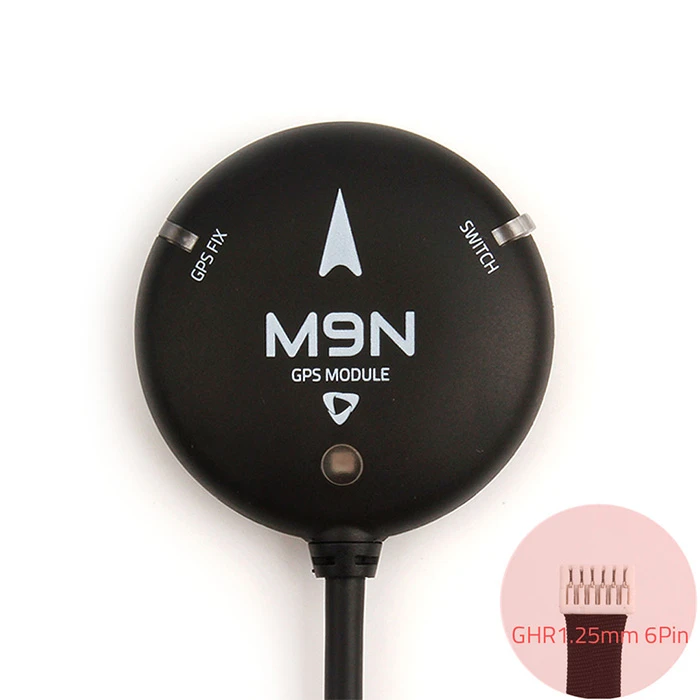

Holybro M9N 2nd GPS (JST GHR1 .25m 6pin cable)–NA0181-12029
This JST GH 6Pin connector can be used on Pixhawk Series 6pin”UART & I2C”or GPS2″ input port as secondary GPS.

Dimensions:

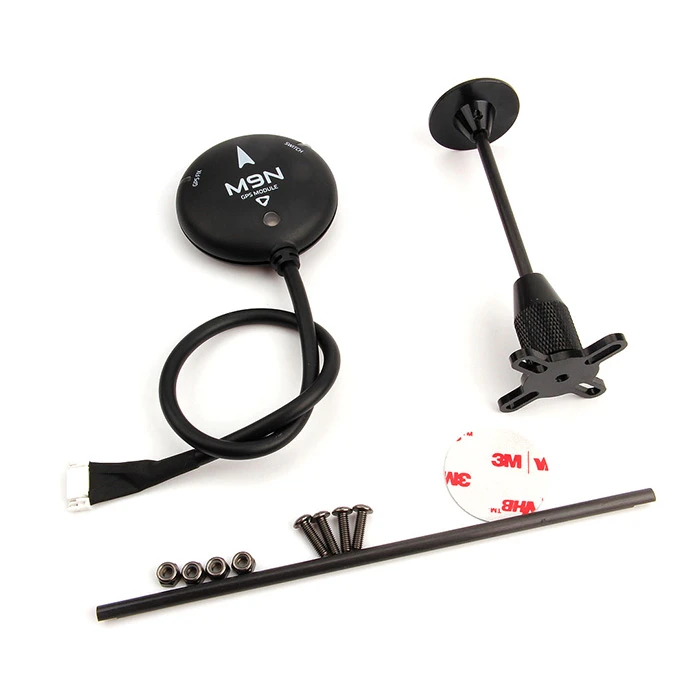

Package Included:
M9N GPS Module *1
‘X’ type folding pedestal mount *1
Carbon rod 70mm & 140mm *1
