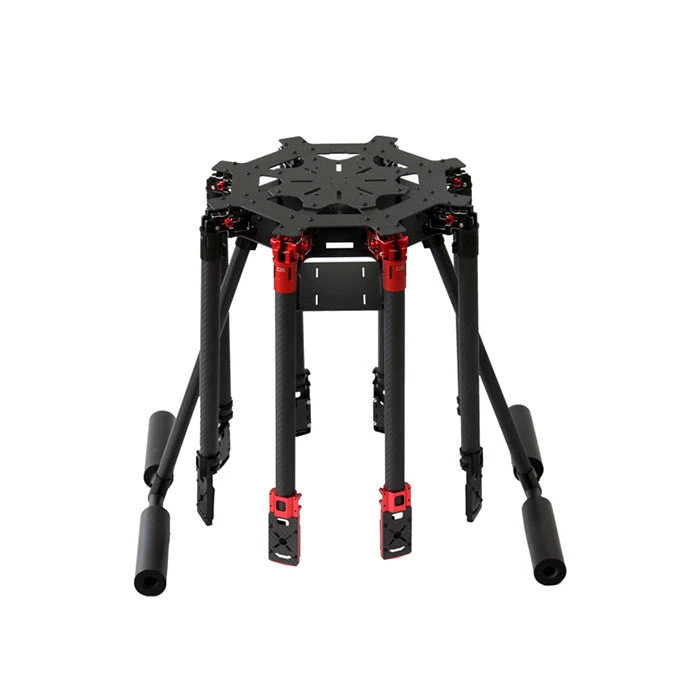

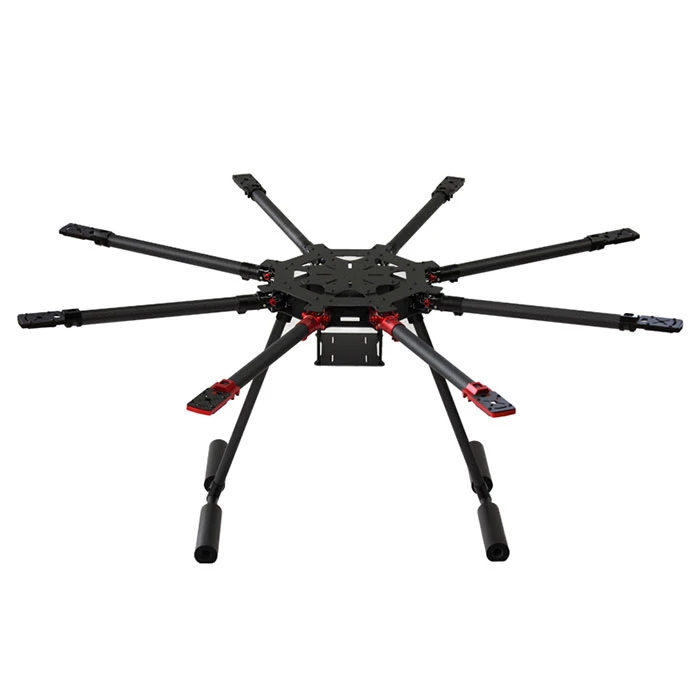

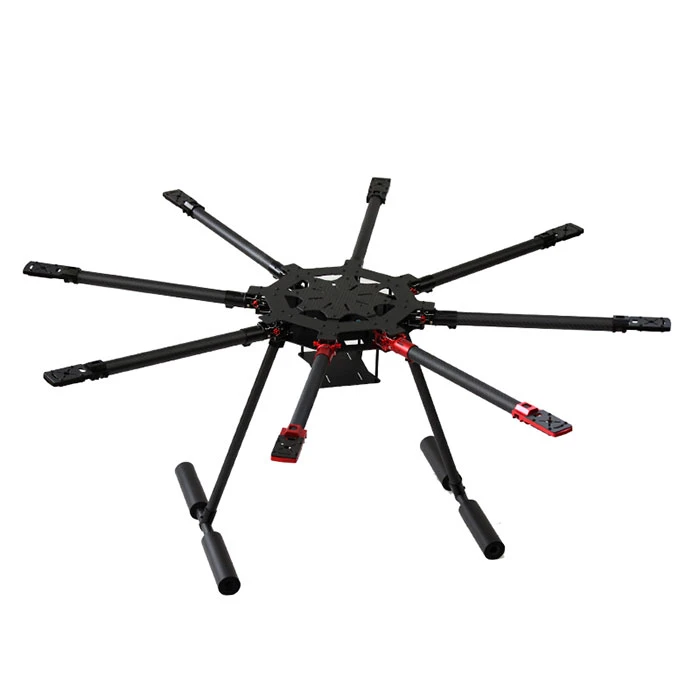

Hummingbird X8 1100mm 8 Axis Heavy Lift Multirotor Frame Kit

Hummingbird X6 hexacopter frame kit is specially designed for aerial photography, mapping and other applications. It adopts V type 8 axis design, this not only provides sufficient power, but also achieves power redundancy. When used with flight control, even if a certain axis is accidentally stopped, the aircraft can be kept in a stable state to the greatest extent.It adopts 5 degree pitch up design of the motor arm, which makes your flight more stable.

The standard CNC folding assembly arm can be folded down, which can minimize the transportation volume of the whole machine and is convenient for transportation and carrying. You only need to raise the arms, power on the system, and it will be ready for flight, which greatly shortens the preparation time for each flight.

The upper center board adopts an open design to facilitate the layout and maintenance of electronic equipment, and integrates a large 200A power distribution board and down Move, vacate the center position to place the flight controller, and the maximum take-off weight can reach 10kg with sufficient power.

Specifications:
Diagonal wheelbase: 110mm
Propeller size: 15-16 inches
Center plate thickness: 2mm
Center plate diamter: 338mm
Arm size: 25mm
Landing skid Height: 420mm
Net Weight: 2050g

Recommended Parts:
Flight controller: DJI NAZA V2, N3, DJI A3, PIX, PIXHACK
Motor: ARRIS 5008 brushless motor, 4110,4115,4216 motors
ESC: 40-50A ESC
Propeller: 15-16″ Propellers
Battery: 6S 10000mah to 6S 22000mAh Lipo Battery

Package Included:
Hummingbird X8 1100mm 8 Axis Heavy Lift Multirotor Frame Kit x 1
