IFlight Chimera5 5” DC LR 4S Analog FPV Racing Drone Quadcopter BNF

Introducing iFlight’s first ultra-light Long Range 5″ Chimera5 5″ Analog BNF. The Chimera5 is equipped with iFlight’s newest SucceX-E mini F7 hardware on board coupled with the XING 2005 motors, GPS, CaddX Ratel V2, and more!
GPS Rescue ready for easy recovery in case of signal loss, or even if you’ve been surfing those mountains and suddenly can’t find the way back home. Betaflight OSD pre-setup GPS elements will show you the way! Custom iFlight 150mm LR antenna for best signal coverage even at long distances.
Go crazy and strap a Li-On 4S and get a flight time above 25min using at least Li-On 4S 3000mAh packs!

Features
Mini long-range quad
XING 2005 2550KV Ultralight motors (Prop mount pattern currently only compatible with iFlight Nazgul Props)
Deadcat geometry frame (higher efficiency and no props in view)
GPS pre-installed for more safety at a distance
SucceX-E mini F7 Stack

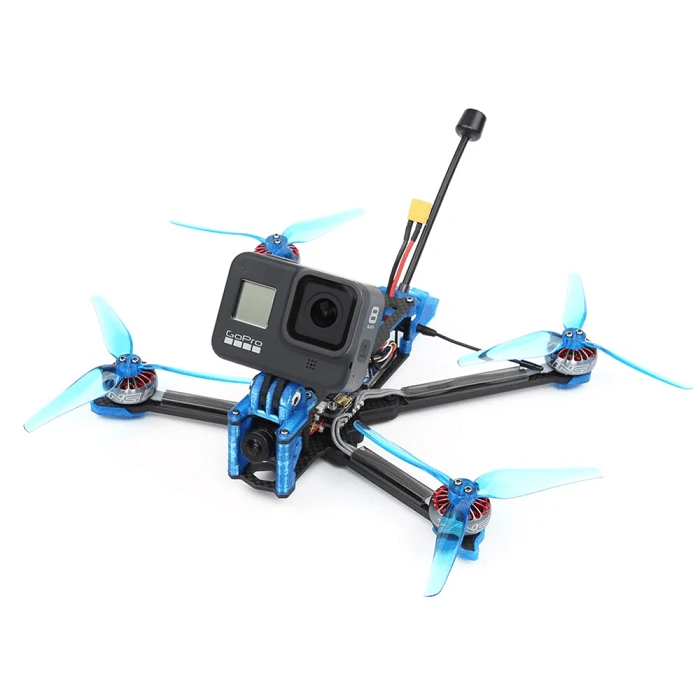

Naked GoPro and Full GoPro ready (included TPU base mounts)
360° TPU protection, Vista cam protection, and antenna mounts
RaceCam R1 Mini FPV Camera

Specifications

FRAME // ：Chimera5

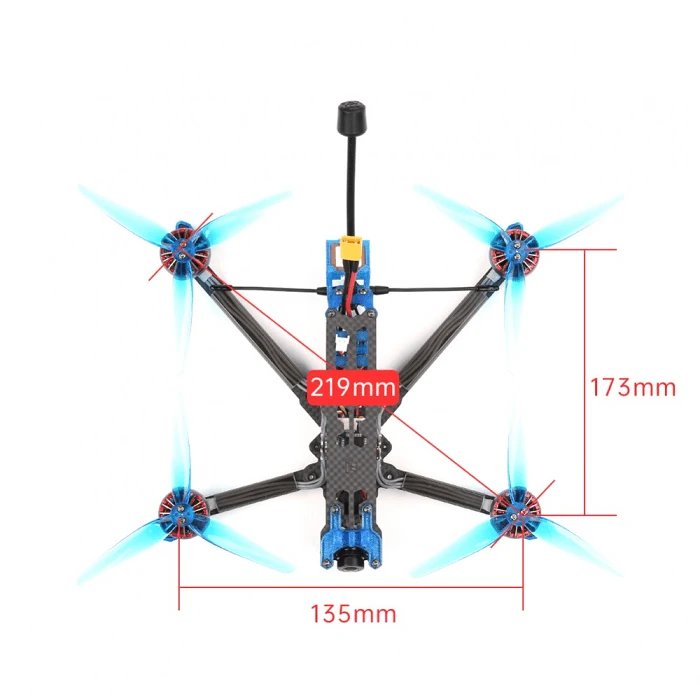

Wheelbase: 219mm
Main body dimension: 135*173mm
Bottom to top distance: 28mm
Arm thickness: 4mm
Bottom plate thickness: 2mm
Top plate thickness: 2mm
Middle Plate thickness: 2.5mm
TPU Camera plate
FC: 25.5*25.5mm/20*20mm
FPV Cam: 19mm Micro / 20mm

SucceX-E mini F7 Stack (35A 4-in-1 ESC)

MCU: STM32F22RET6 216 MHz
Gyro: MPU6000
Blackbox: 8MB
BEC output: 5V 2.5A
Barometer: BMP280(I2C）
Connector: Micro-USB
OSD: IFLIGHT OSD （AT7456E）
FC Firmware：IFLIGHT_SUCCEX_E_F7 4.2.0
Mounting pattern: 20*20mm φ3 mounting
Dimensions: 27*27mm
Weight: 4.9g

ESC // SucceX-E Mini 35A

MCU: BB21 F16G
Current Sensor: Yes
Input: 2-6S LIPO
Current scale: 200
Constant: 35A / Burst: 40A
BLHeli: BLHeliS
Telemetry: no
Target: G-H-30
Mounting pattern: 20*20mm/Φ3mm
Dimensions: 31*30mm (including the power pads)

Additional Suggested Parts (Not Included)
Naked GoPro Hero8 Case
Recommended battery: 4S 1300mAh and above!
Without GoPro: 11-13min // 4S 1300mAh, 14-15min // 4S 3000mAh Lion pack, 22-24min
With naked GoPro: 4S 1300mAh, 12-13min // 4S 3000mAh Lion pack, 20-22min
With full GoPro Hero8: 4S 1300mAh, 4-6min

Package Includes
1 x Chimera5 DC Frame
1 x RaceCam R1 Mini 1200TVL 2.1mm 19*19mm Camera
1 x Albatross RHCP mmcx 90° antenna
2 x Nazgul 5030 inch 3-blades 2 cw+2ccw
1 x naked GoPro TPU base mount (installed)
1 x full GoPro TPU base mount
1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
