Sale!

IFlight DC3 HD 145mm 3" Frame For DJI FPV Air Unit

IFlight DC3 HD 145mm 3" Frame For DJI FPV Air Unit - Image 2

IFlight DC3 HD 145mm 3" Frame For DJI FPV Air Unit - Image 3

IFlight DC3 HD 145mm 3″ Frame For DJI FPV Air Unit

Original price was: $25.99.Current price is: $18.19.

SKU: CMMTD 2533298135 Categories: Racing Drone Kit, RACING DRONES

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

Description
Reviews (0)

PRODUCT DESCRIPTION

The iFlight DC3 HD frame was specially designed for the DJI Digital FPV System with less total weight than 250g. It is also suited for a 5-inch propeller power system and flight controllers. The DC3 HD Frame design makes installation and maintenance easy. With the 3-inch propeller power system, users have ensured a super great flying experience.

Main Features：
-Full 3K Carbon Fiber airframe
-TPU bracket protect to crash Air Unit Module
-144mm wheelbase，40.5g
-Popular Deadcat style configuration, No prop in View
-Fits 20×20 stacks

Specifications:
– Item Brand: iFlight
– Item Model: iFlight DC3 HD
– Type: 3″ FPV Freestyle frame
– Frame wheelbase: 144mm

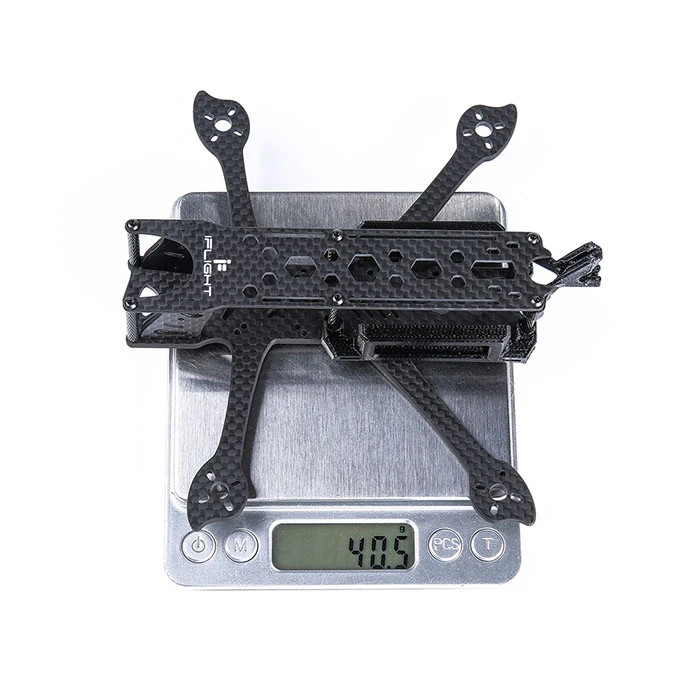

– Frame weight:40.5g approx
– Standoff: M2*25mm(4pcs)
– 3mm thickness, 11.3mm width arms,1.5mm vertical side plates
– 2mm top, the upper & bottom plate
– Mounting Holes: 20*20mm
– Support camera size: 19*19mm 22*22mm
– Recommended motors: 14XX，12XX

Package included:
-1 x DC3 HD Frame
-1 x Screw Bag
-1 x TPU Camera mount adapters
-1 x TPU DJI Air Unit Bracket Mount
-1 x TPU DJI Air Unit Antenna Mount
-2 x Battery Straps

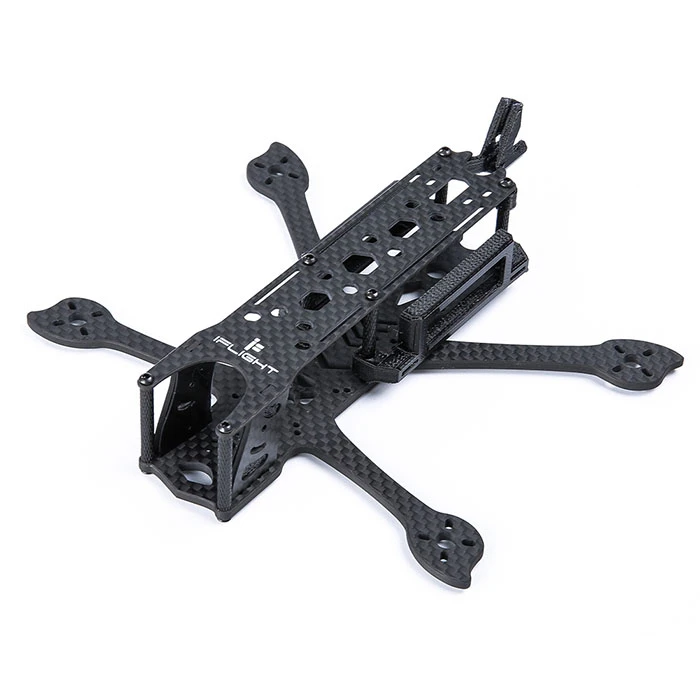

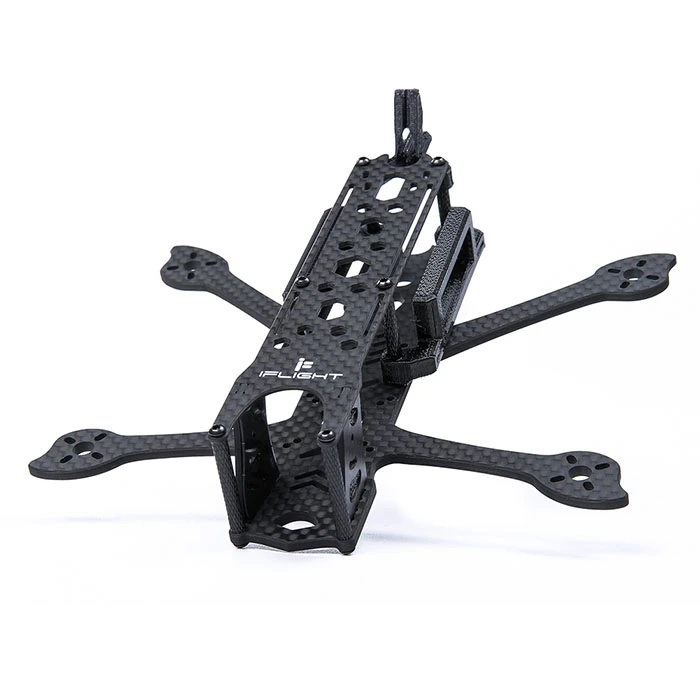

Some assembling Pictures
