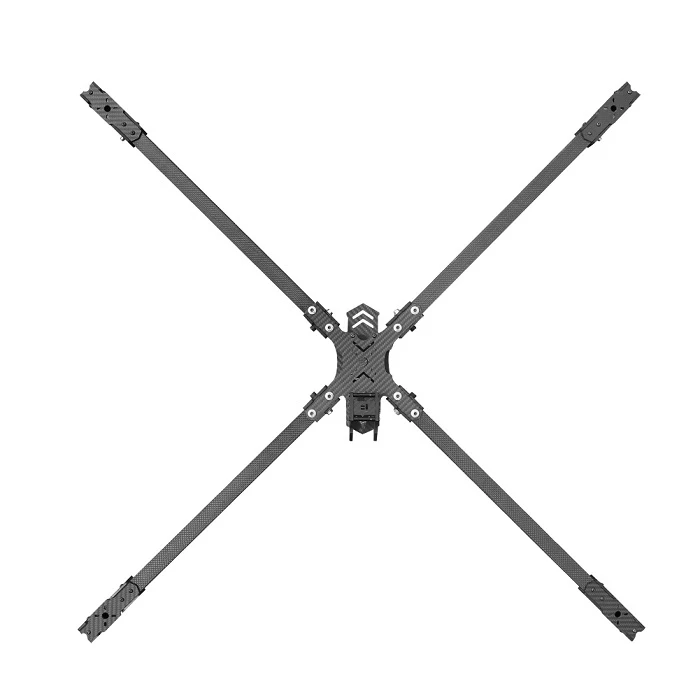

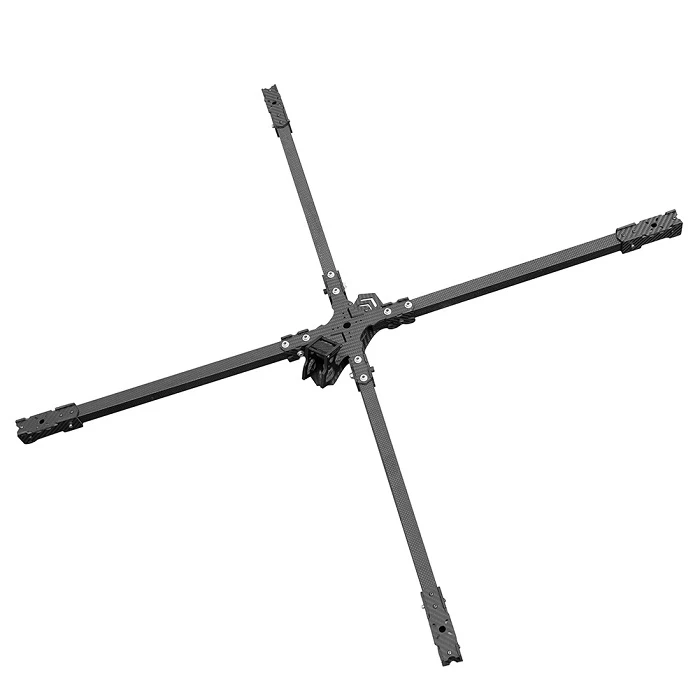

IFlight IX15 XC15 950mm X-CLASS Racing Frame Kit

iXC15 is the first X CLASS drone of iFlight.It’s finally released after half a year of developing and testing. This is one of the most amazing frames while the most flexible frame designed and developed by the iFlight R&D team. This time, iFlight still stands at the forefront of the market. Let’s take a look at the development of iXC15.
Mounting Screw Pattern fits most motors on the market, which greatly facilitates the motor installation and eliminates the need to add the motor adapter seat. It helps reducing arm front end weight, thereby improving the flexibility of the frame. The motor base is locked to the arm via two crisscrossing standoffs, wherein the outer center is strengthened which makes the frame stable, reliable and easy to adjust.

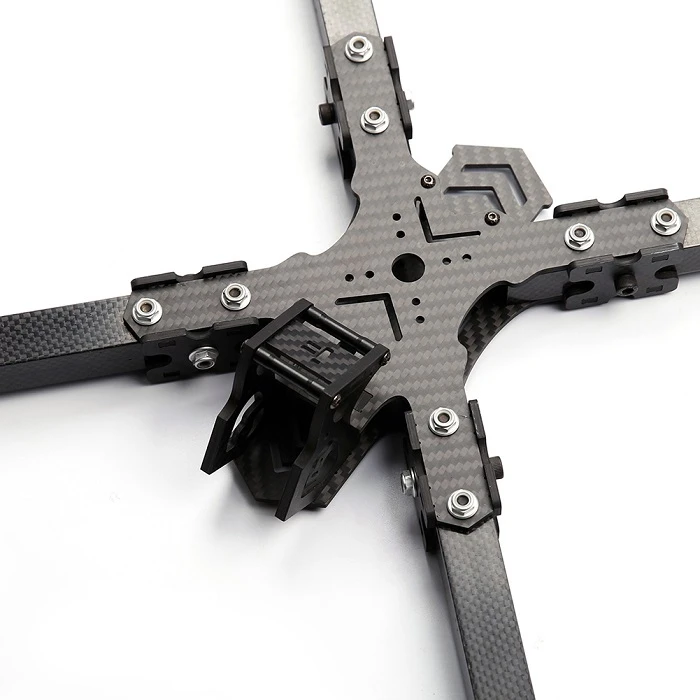

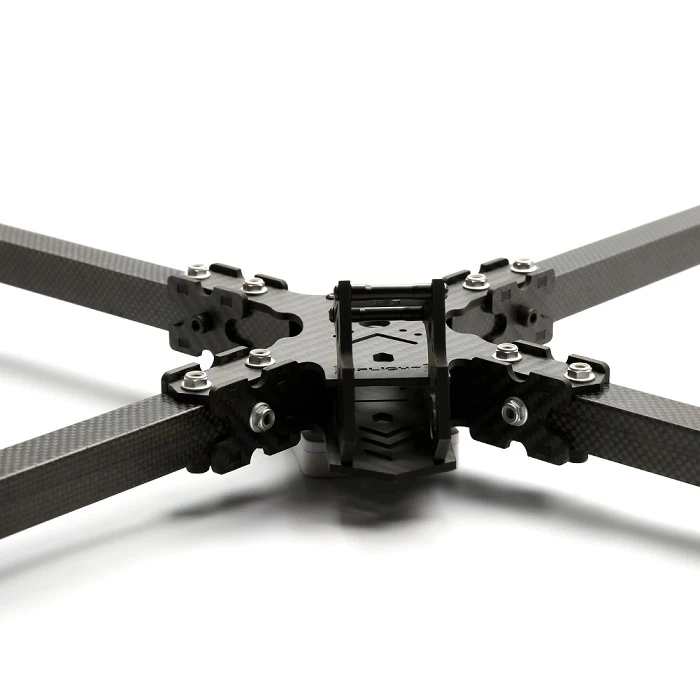

The arm and the mounting part of the frame body are fixed by two crisscrossing “Power- Lock” M5 long screws & M5 nut. Besides, two vertical side plates have added to each arm to make the arms and the body more secure. This fixing method is not only reliable but also makes replacing and repairing arms easier on site. In addition, a flexible 3D print antenna mount is used at the rear of the body to secure the tail antenna for easy antenna installation.

Refer to the frame body, two simple but rigid 3mm thick top & bottom plates are used, providing large space to install equipment. iXC15 has been improved in every part during development, from the first sample to the final mass production. It took half a year- 6 times of proofing-from round tube to square tube, continuous improvement, and testing, and finally released.

iXC15, the perfect design, coupled with incredible performance, gives you a more enjoyable flight experience.

Specification:
Wheelbase：950mm
Bottom plate thickness：3mm
Top plate thickness：3mm
Arm vertical side plate thickness：3mm
Carbon tube arm dimension：20mm*20mm*425mm
Tube：20mm（out OD），18mm（inner OD）
Singles Tube Length：425mm
Motor seat mounting holes：19x19mm-25x25mm/30x30mm
FPV Camera Vertical side plate thickness：3mm
The distance between FPV Camera Vertical side plates:：28mm
The distance between top&bottom plates：20mm
FC mounting size：30.5*30.5mm,20*20mm
Weight：643g（included hardware）

Suggested electric parts (not included):
– Motor 41xx~52xx
– ESC 80A BLHELI
– Prop:13-15 inch
– FC: F4
– PDB: 200A

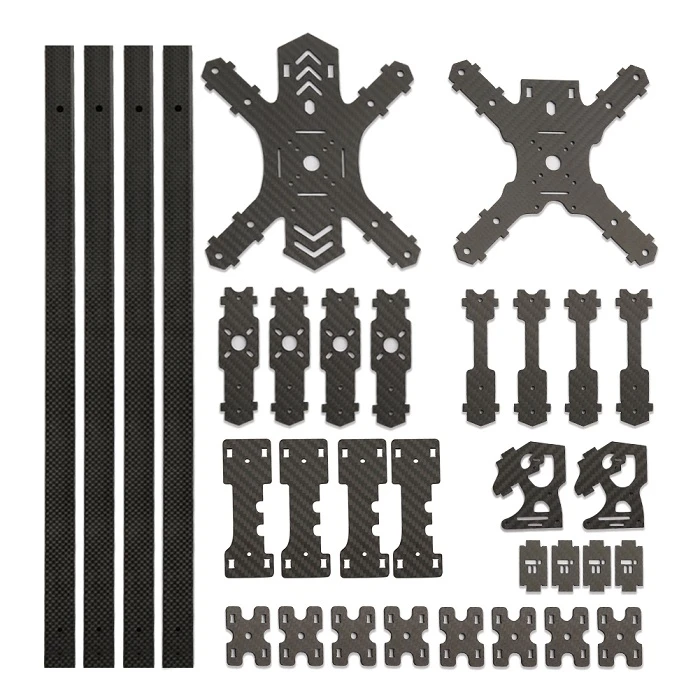

Package included:
1 x iFlight iXC15 950mm X CLASS Racing Frame
