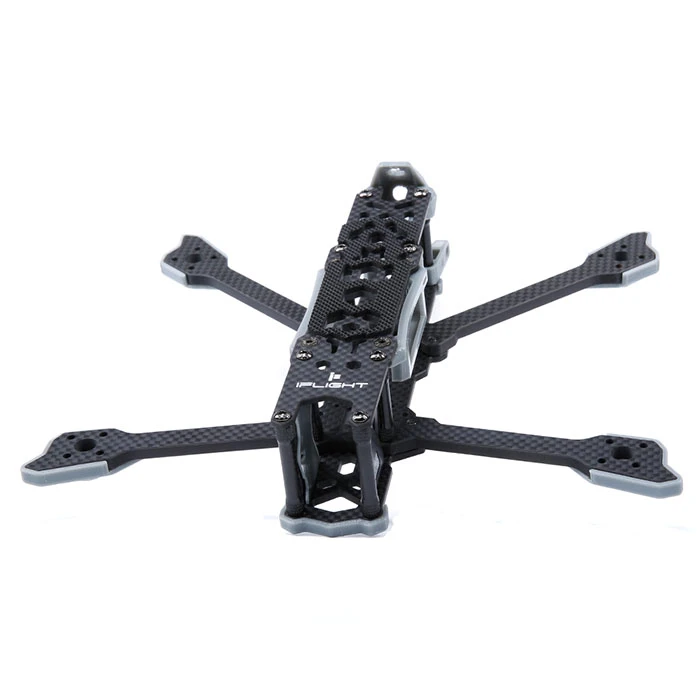

Iflight TITAN DC5 Freestyle Frame For DJI FPV Air Unit

The iFlight TITAN DC5 was designed for the DJI Digital FPV System. It is also suited for a 5-inch propeller power system and flight controllers. The TITAN DC5 Frame design makes installation and maintenance easy. With the 5-inch propeller power system, users have ensured a super great flying experience.

Specifications:
– Type: 5″ FPV Freestyle frame
– Frame wheelbase: 222mm
– Frame weight:131g approx
– Standoff: M3*25mm(4pcs), M3*32mm(4pcs）
– 5mm thickness, 10mm width arms
– 2.5mm top plate and 3.0mm bottom plate
– Height for Electronic parts: 35mm
– Mounting Holes: 30.5*30.5mm/20*20mm
– Support camera size: 19*19mm 22*22mm
– Recommended motors: 22xx, 23xx

Package included:
-1 x DC5 HD Frame
-1 x Screw Bag
-1 x TPU print parts bag

Note: If you need the fully set up version, please contact [email protected] for more informations. The DJI Air unit does not include in the frame, just for reference.
