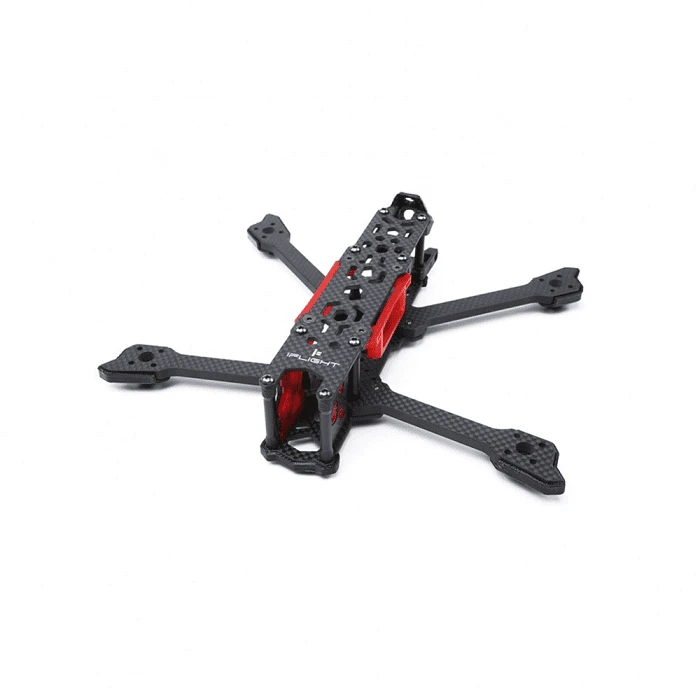

Iflight TITAN DC5 V1.4 HD 5inch Freestyle Frame

Kindly note : the original DJI FPV Air Unit MMCX 90° to SMA Cable is short for DC5 V1.4, please select the choose option”MMCX to RP-SMA Female Adapter Cable (pair)”.

The TITAN DC5 V1.4 HD Frame perfect fits the amazing new DJI FPV system, this quad makes flying FPV truly breathtaking.

Features:
– Popular Deadcat style configuration, No prop in View
– Optimized weight distribution: DJI unit and Stack centered
– Fits both 30.5x and 20x stacks

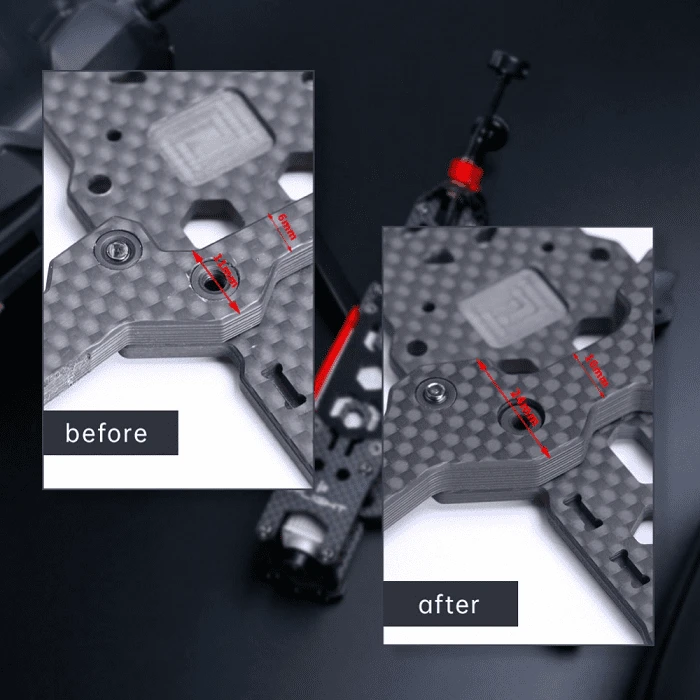

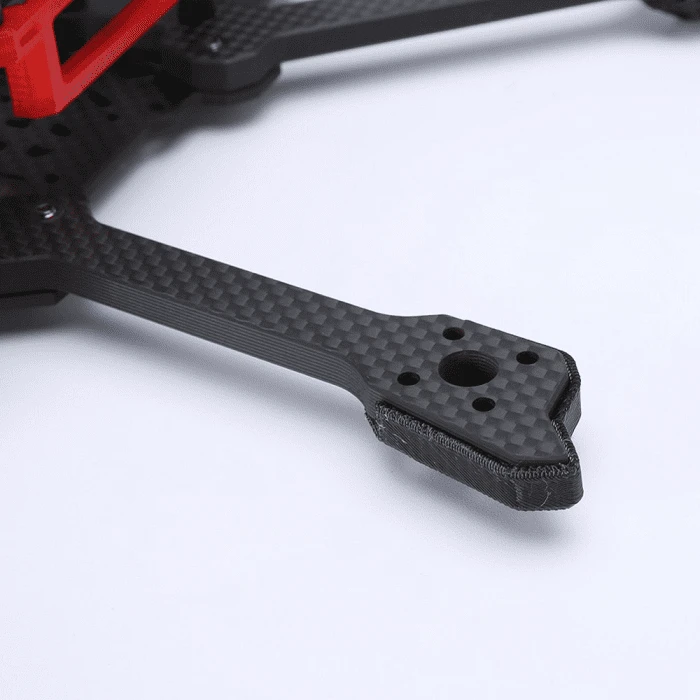

– Full 3K Carbon Fiber airframe with chamfered arm
– 222mm wheelbase

Specifications:

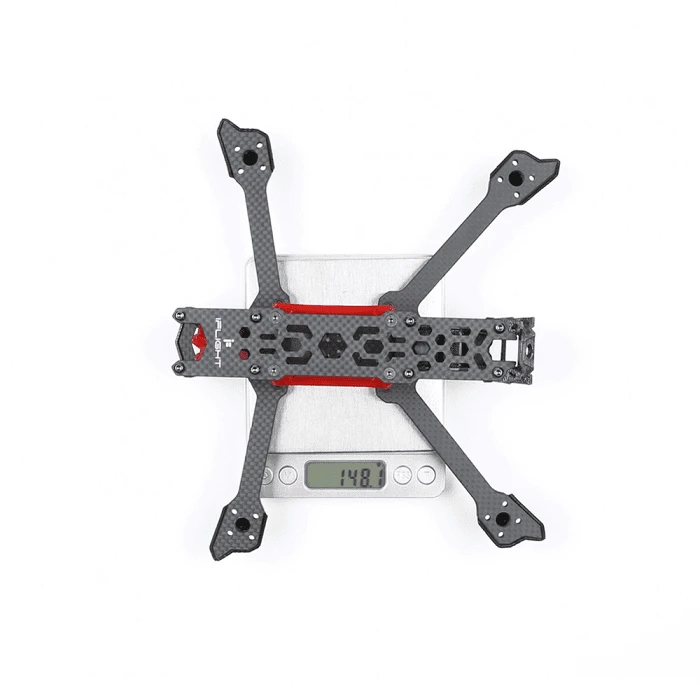

– Weight: 150.4 (with TPU parts, and battery anti-slip pads)
– Wheelbase: 222mm

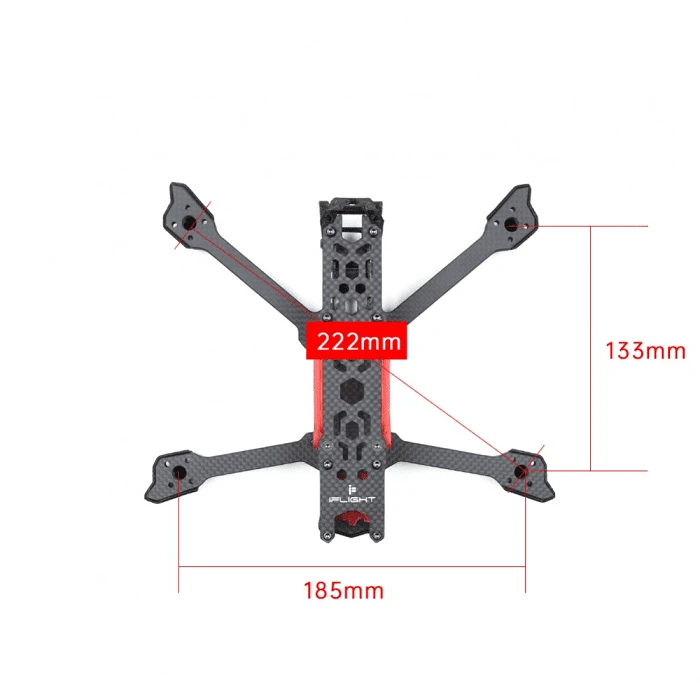

– Main body dimension: 185*133mm
– Bottom to top distance: 35mm
– Arm thickness: 6mm
– Bottom plate thickness: 3mm
– Top plate thickness: 2.5mm
– Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)
– Mounting Holes: 30.5*30.5mm
– Support camera size: 19*19mm 22*22mm
– Recommended motors: 22xx, 23xx

Package included:
-1 x TITAN DC5 V1.4 HD Frame
-1 x Screw Bag
-1 x TPU Camera mount adapters
-4 x Arm guard/Motor mount
-1 x TPU DJI Air Unit Bracket Mount
-1 x TPU DJI Air Unit Antenna Mount
-1 x TPU bottom plate front protective mount
-1 x TPU bottom plate rear protective mount
-1 x Battery Anti-slip Mat
-2 x Battery Straps
