Iflight TITAN XL5 Analog/HD FPV Freestyle Frame Kit 6mm Arms

After our popular TITAN DC5 (DeadCat style frame) approach we decided to take a step back to the roots and create a new X-Geometry frame to get the best performance on both axis and better weight distribution for freestyle.

Features:
-iFlight titan xl5 frame,popular true-x configuration
-6mm arm design for more durability
-360° tpu protection,tpu guard for arms and antenna mounts
-with tpu bracket mount for fpv air unit
-Fits both 30.5×30.5 and 20×20 fpv flight stacks

FRAME // TITAN XL5：

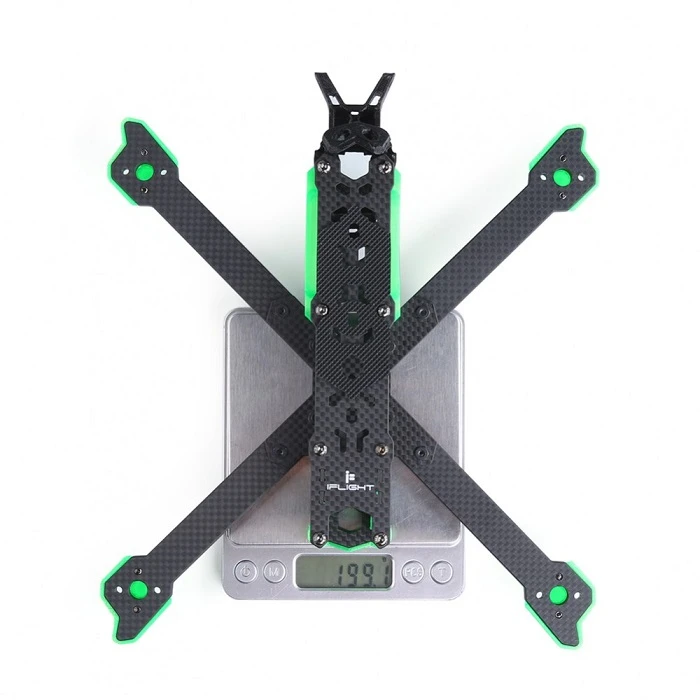

– Weight:199.1g (HD version) 184.5g(Analog version)
– Wheelbase: 250mm
– Main body dimension: 185*133mm
– Bottom to top distance: 30mm
– Arm thickness: 6mm
– Bottom plate thickness: 2mm
– Top plate thickness: 2mm
– Camera plate thickness: 2mm (2.5mm included TPU inserts)

Recommended Parts: (not included)
– SucceX-D F7 Flight Controller
– SucceX BLHeli32 50A 4-in-1 ESC 2-6S
– XING 2208 Motor Unibell（4S 2450KV，6S 1800KV）

Package Includes:
1 x Iflight TITAN XL5 Analog/HD Frame Kit
