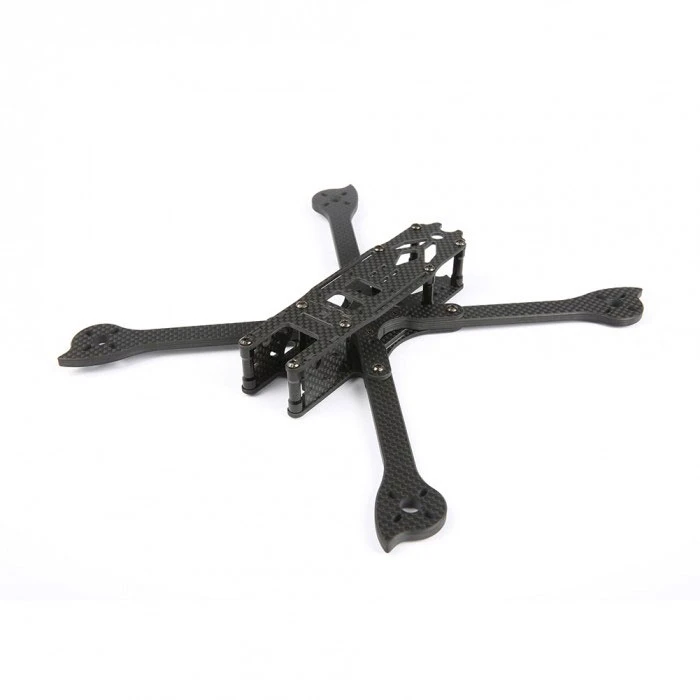

IFlight XL5 Lowrider V3 FPV Race Frame For 5″ Drones

Define a new Hyper-Low version frame which mix racing and freestyle together, its hyper lower version based on previous XL5 frame. True X freestyle design with 4pc 5mm thick removable arms locking structure ensures outstanding flying and stronger than XL5. This racing & freestyle frame gives you ultimate control over weight distribution and CoG by not only allowing the use of M3x15mm standoff but also offering a reversible build orientation for a true mid-mount set up.This frame comes with micro camera adapotors, easy for mouting micro cameras.

Main Features:
– Designed for 18mm wide micro camera,adjustable camera placement
– Chamfred Edge High quality Pure 3K carbon plate
– Top mounted battery for optimal CG
– True X frame design
– Replaceable 5mm arms and plates
– Grade 12.9 Black Nickel Plating high quality screw hardware
– Compact & camera easy repairing design
– 22mm Standoffs
– Slim version XL5, narrowest position 12mm on arm

Specifications:
Type: 5″ Freestyle frame
Frame wheelbase: 240mm
Dimensions :170*177mm(body dimension)
Frame weight:117g approx
Motor c-clip hole: 8mm
Standoff Height: 22mm
5mm arms,1.5mm vertical side plates
2mm top plate & upper plate
Mounting Holes: 30.5 x 30.5mm
Carries: 1300-1500mAh lipo + GoPro Session

Package Included:
1 x XL5 Lowrider V3 FPV Race Frame
1 x Red 3D print micro camera adaptor
