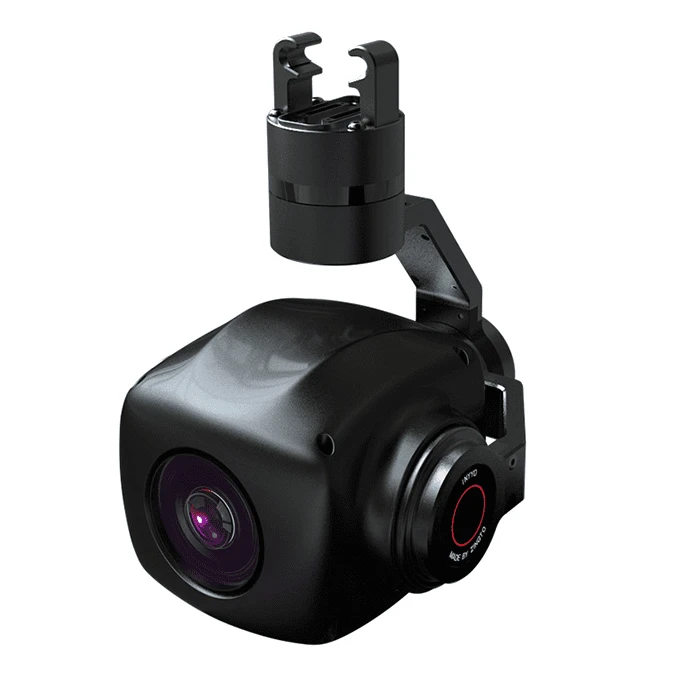

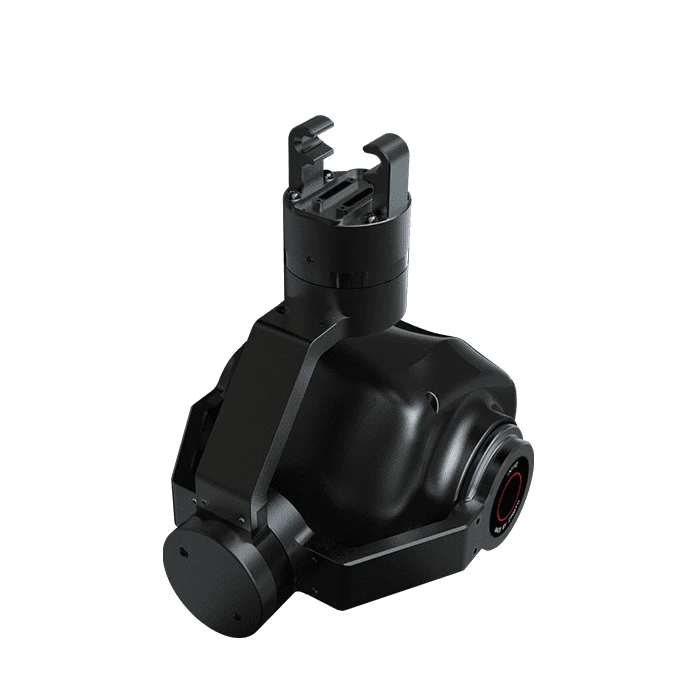

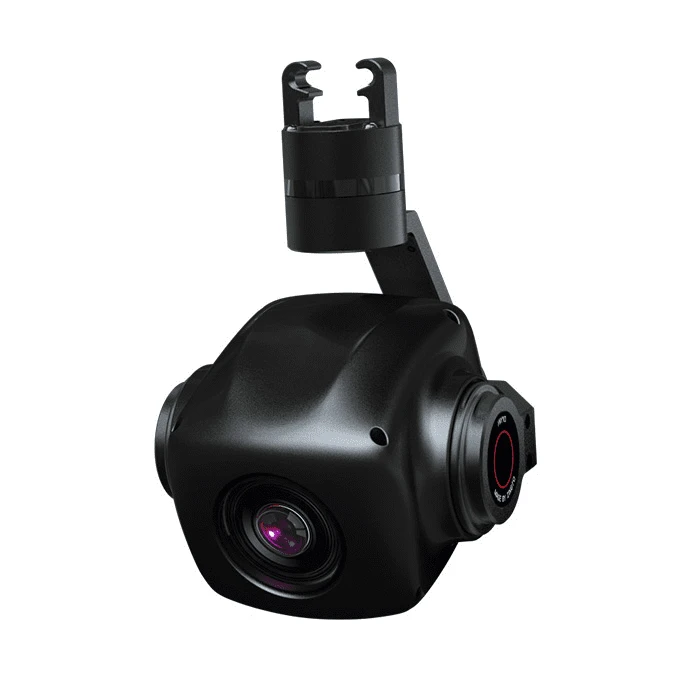

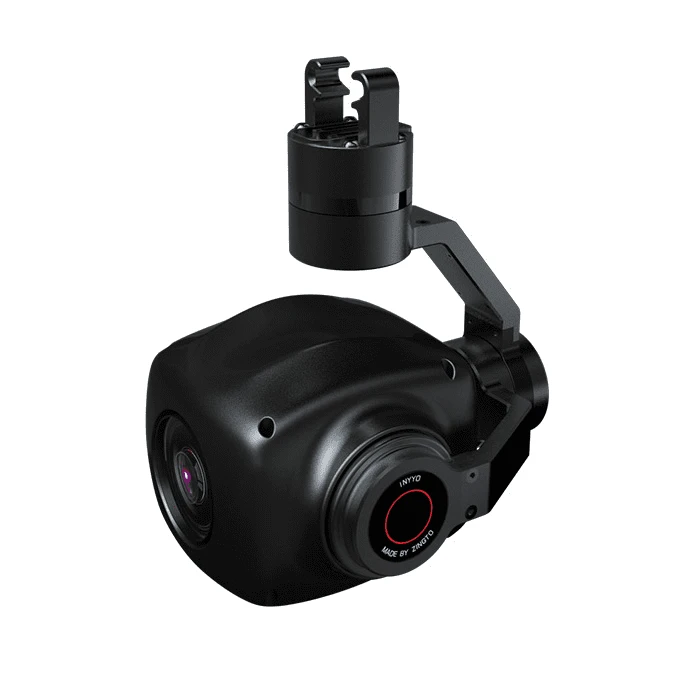

INYYO QRS 30X Optical Zoom Starlight Camera With 3 Axis Gimbal 360° Rotation For Industrial Applications

The INYYO QRS 30 pod is a new 30x optical zoom camera with 3-axis gimbal which supports 360 degree rotation. It features excellent stability, accuracy and sensitivity, it is able to keep the camera steady under any states, even under the circumstance of high speed flying and intense shaking status with the coming of 3-axis stablization. The 30X optical zoom night vision camera can easily capture remote details and clearly present the long-range view in and daytime and at night.

It can be mounted on multi-rotor drones, helicopters, fixed wings, VTOL, robot and other platforms for the applications in the fields like energy inspection, law enforcement, environmental monitoring, traffic inspection, power line inspection, disaster prevention & mitigation and search and rescue.

Main Features:
–INYYO QRS 30 integrates high multiple optical zoom camera and high performance 3 axis gimbal;
–One key switch between Network Port and HDMI output port;
–Support 360 degree rotation of the Yaw Axis;
–The manual control rate can be adapted to the optical module zoom, which is convenient for users to obtain good results at large magnifications.
–Great control experience;
–Adopt quick release structure, easy to mount on the platforms;
–Two sets of serial port command sets that can be used at the same time;
–One-key switching of serial port and SBUS control;
–One-key temperature calibration function;
–Support external target tracking module to realize target tracking function. (The Pro version comes with this module)

INYYO QRS 30 is made of aviation aluminum alloy and high-strengthnylon, with high strength, good vibration absorption, rain resistance, dust prevention and corrosion resistance, and can adapt to harsh field working environment.

The advanced triaxial stabilization PTZ works closely with mechanical platform, and the high-speed processor controls the precise operation of the motor to compensate for every slight movement, maintains the stable shooting angle of camera.

The original intelligent mechanical design structure realizes 360 ° no blind angle rotation, can free access to unrestrained omni-directional vision.

The trigger locking structure can be loaded and unloaded at high speed, which greatly increases the
connection strength and enjoys the pleasant experience brought by the intelligent structure.

High magnification optical zoom night vision camera can easily capture remote details and clearly present the long-range view no matter in the daytime or at night; It is easy to carry out reconnaissance, surveillance and other tasks.

INYYO Series electro – optical pod can add target positioning module, through the INYYO GCS app software to connect the integrated data&video Transmitter or the data&video integrated ground station to realize all the control of the photoelectric pod, and the longitude latitude coordinates, military Gauss rectangular coordinates and elevation information of the target can be intelligently calculated and displayed.

The special control module has multiple optimization one-click function, which makes the control experience more comfortable.

INYYO series series Electro – optical pod can be compatible with all kinds of mechanical platforms, and a
variety of peripheral connection schemes can make your use free from any restriction.

Specifications
Material: Aviation aluminum alloy, Nylon
Pod size: 146x118x184mm
Weight: 645g
Working Temperature: -10℃-50℃
Storage Temperature: -20℃-60℃
Axis of Stablization: 3 Axis
Input Voltage: 4S-6S (14.8V-22.2V)
Power: 13.6W
Angel Control Range: Yaw (360°); Pitch (-120°-30°);Roll (-40°-40°)
Angle jitter: +0.03°
Control Signal: S.BUS, UART
Mode: Lock Yaw, Follow Yaw, Vertical Overlook

Sensor: 1/2.8″ Exmor CMOS
Focal length: 4.3-129.0mm
Zoom: 30X Optical Zoom
AF Time: <1S
Pixels: 2.13MP
Video Output: 1080P, 30fps/ 1080P, 20fps
Video Storage: 1080P, 30fps
F-number: F=1.6-4.7
FOV: H: 63.7-2.3°
M.O.D.: 10mm(W)-1200mm(T)
Night Vision: 0.001Lux
Storage: Micro SD: Max 32GB

Tracker (Optional) (Pro version comes with this module)
Size: 41.8×41.8x39mm
Weight: 60g
Input Voltage: 12V (Power supply by the controller)
Target size: 16×16-160×160 pixel
Frame rate: 50HZ, delay<15ms
Video interface: HDMI, Network H.264 (simultaneous output)
Storage: Micro SD: MAX 128 GB

Package Included:

Normal Connection Solutions:

Quick Installation Steps:
1. First make sure that the “locking fastener” on both sides are compressed;
2. Align the white points of the “pod” and ” Support frame” and insert the “Hoisting lug” into the ” Support frame”; when you hear a “click”, the ” locking fastener” pops out to both sides, “Hoisting lug” is fixed;

Quick Detachable Steps:
Hold down the pod by hand to prevent it from falling down. Press the “locking fastener” on both sides firmly to keep the “locking fastener” in a compressed state and lift the pod down from the “Support frame”.

Channel :

Note:
1. Put the control channel gear to mid-range before turning on the remote control;
2. One-key temperature calibration: First, the pod must ensure that the three axes are in the one-click center position, and then RC_ _CH8 channel
Enter the temperature calibration mode from the mid-range -> low-level pan/tilt. When the pan/tilt starts again, the temperature correction is completed;
3. The pod can be photographed in the video.
4. The pod trigger interval for taking pictures is 20 seconds, and the trigger interval for recording videos is 1 minute.
