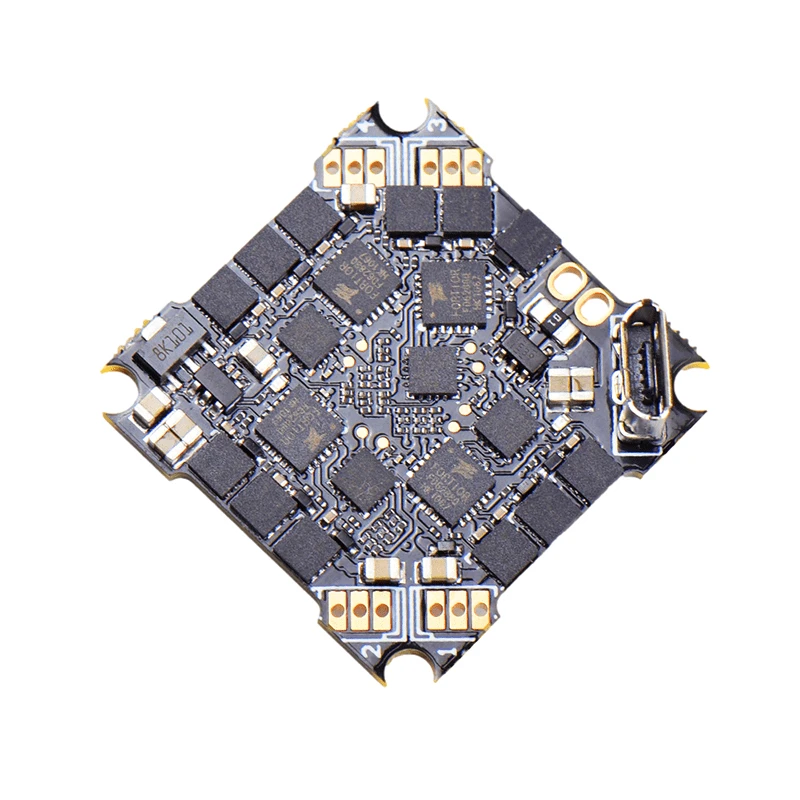

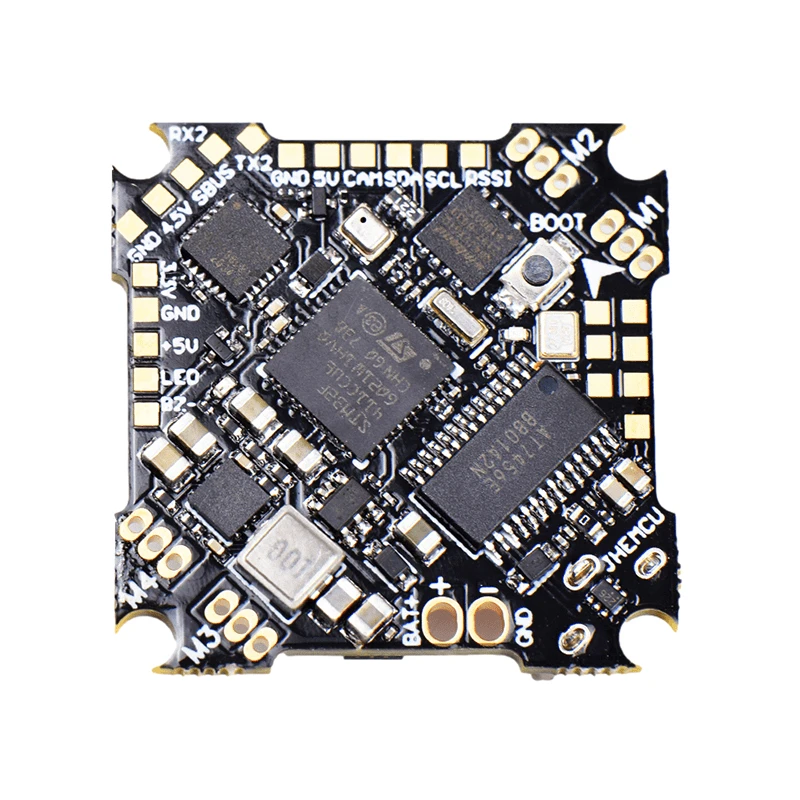

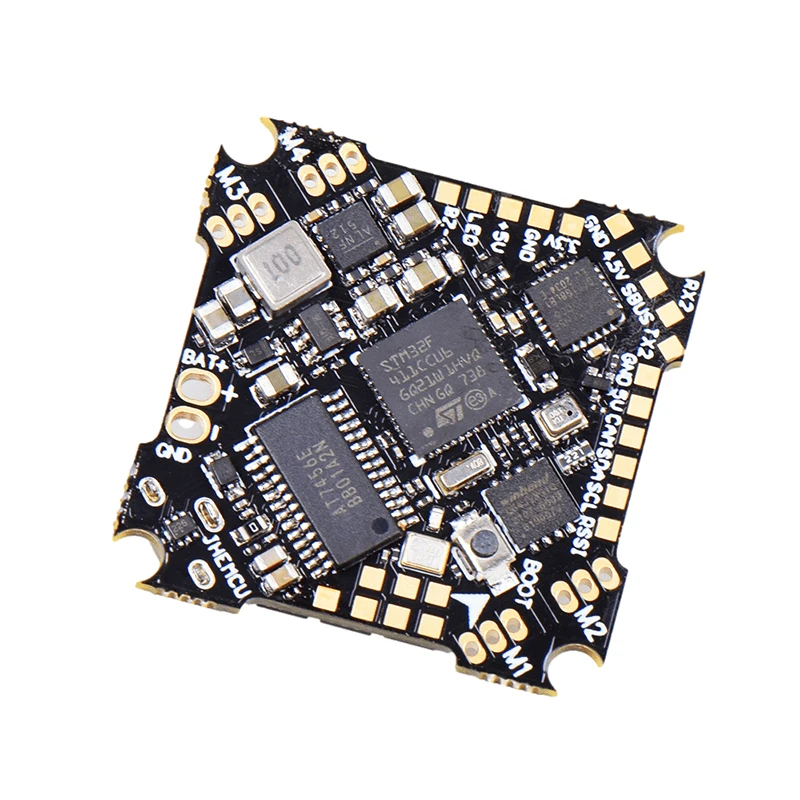

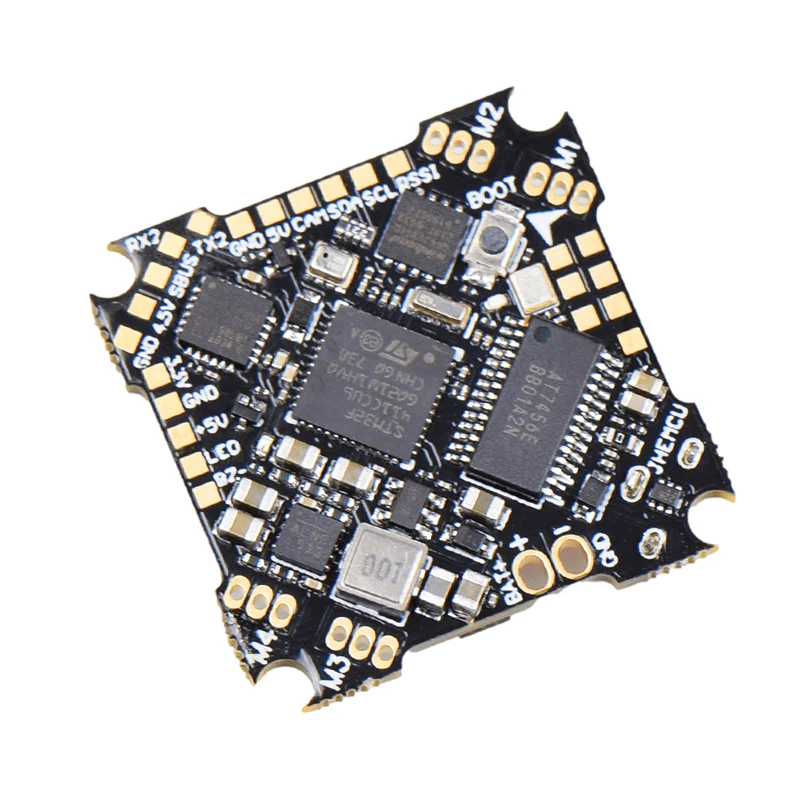

JHEMCU GHF412AIO 12A 2-4S 25.5×25.5mm Hole F4 AIO Flight Controller BLHeli_S BLHeli_S For RC FPV Racing Drones
Original price was: $56.99.$39.89Current price is: $39.89.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION
Brand: JHEMCU
Model: GHF412AIO
Item Name: F4 Flight Controller AIO 12A 4IN1 ESC
CPU: STM32F411 (100MHZ)
MPU: MPU6000 (SPI connection)
Size: 32.5×32.5mm (25.5mm mounting hole)
Firmware: JHEF411
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Receiver: Support Frsky XM / XM + receiver / Futaba receiver / Flysky receiver / TBS Crossfire receiver / DSMX receiver
Support programmable LED such as WS2812
Built-in current sensor
Weight: 5g
ESC
Support BLheli / BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2-4S Lipo
Continuous current: 12A
Firmware: BLHELI_S (G_H_30_REV16_7.HEX)
Motor connector: 1.25mm pin header connector
Package Included:
1x JHEMCU GHF412AIO 12A flight controller
1x 18AWG red wire
1x 18AWG black wire
4x M2*6.3MM red line shock absorbing balls
4x 3P*1.25MM straight socket
1x XT-30 plug
1x 470UF/25V electrolytic capacitor
