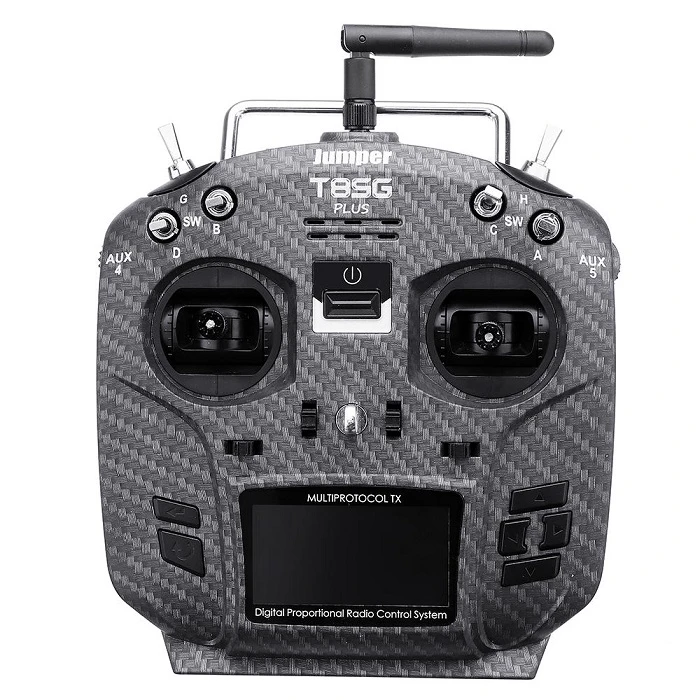

Jumper T8SG V3 PLUS Carbon Edition Hall Gimbal 2.4G 12CH Multi-Protocol Transmitter

The Jumper T8SG V3 Plus Carbon Multi-Protocol radio features a compact size and a host of protocol options all built in to one product. Four individual RF Chip modules are all integrated with the main internal RF Module. Various protocols can be quickly and easily selected from the model menu allowing you to bind the radio to just about any major protocol in today’s market. An external module bay allows for additional proprietary protocol use for Long range flyers.

Main Features:
Built in four-in-1 RF Module (CC2500 CYRF6936 A7105 NRF2401), and remote control distance is over 2km.
Open source multi-protocol firmware, compatible with most mainstream remote controls in today’s hobby market.
Up to 12 channels of output (depending on the receiver), Open Source Firmware, all channels are fully programmable.
2.42 inch LED display – works even in direct sunlight.

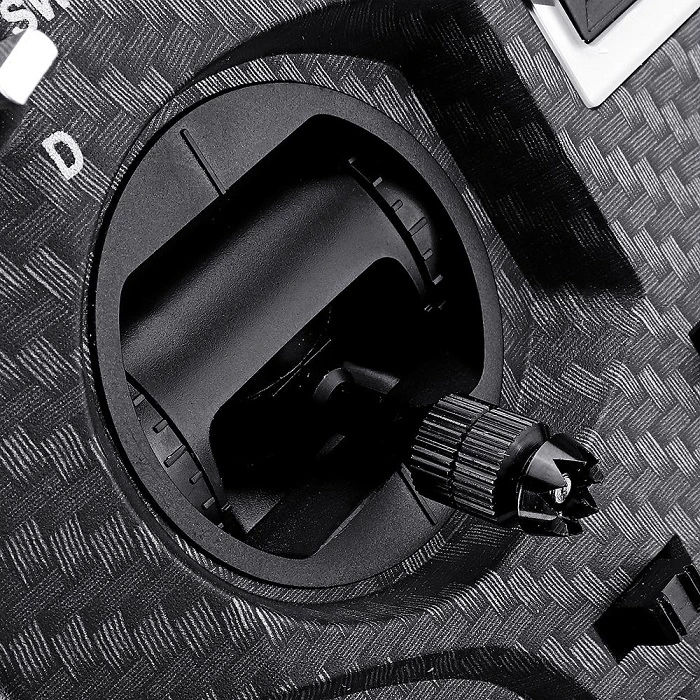

Smooth Hall Sensor gimbals – brings you a better reliability and quality feel.

Specification:
Model Name: Jumper T8SG V3 Plus
Size: 158 x 150 x 58mm
Weight: 338g (without battery)
Transmission frequency: 2.400GHZ-2.7GHZ
Transmitter Module: Four in One High Frequency Module (CC2500 CYRF6936 A7105 NRF2401)
Transmit power: maximum 22dbm (transmit power adjustable)
Antenna gain: 2db (detachable antenna, easy modification)
Working current: [email protected]
Working voltage: DC4.5-DC18V (factory with 4 * AA battery box, lithium battery recommended 2s balanced head line, batteries not included)
Remote control distance:> 2km @ 22dbm
Channels: up to 12 channels (depending on the receiver)
Display: 2.42 inch LCD display
Upgrade method: USB online upgrade
Support Protocols: Walkera full range, DSM2/X full range, Flysky and Flysky 2A, FrSKY, FUTABA s-fhss full range, WL Toy series, Hubsan series, Esky series and many more (Currently a total of more than 40 supported protocols)
Simulator mode: 3.5mm standard ppm output

Package included:
1 x Jumper T8SG V3 PLUS Carbon Edition Transmitter



Jumper Warranty:
1. The radio can be swapped a new unit within 7days if any issues caused by manufacturer. Any return radio must be coming with original full package and parts in good condition.

2. Jumper provides two years warranty from the date of purchase. Customer should bear the shipping cost and we don’t accept the return if the radio is unofficially modified or any change in original design.

3.Any radio exceed the warranty period Jumper still provide service and parts. Please call for our after service team for enquiry. Or if you have any problem and question in operating the radio. You may send email to [email protected] for assistance.

4.Any technical issues, parts replacement, please do not hesitate to contact [email protected] for assistance.
