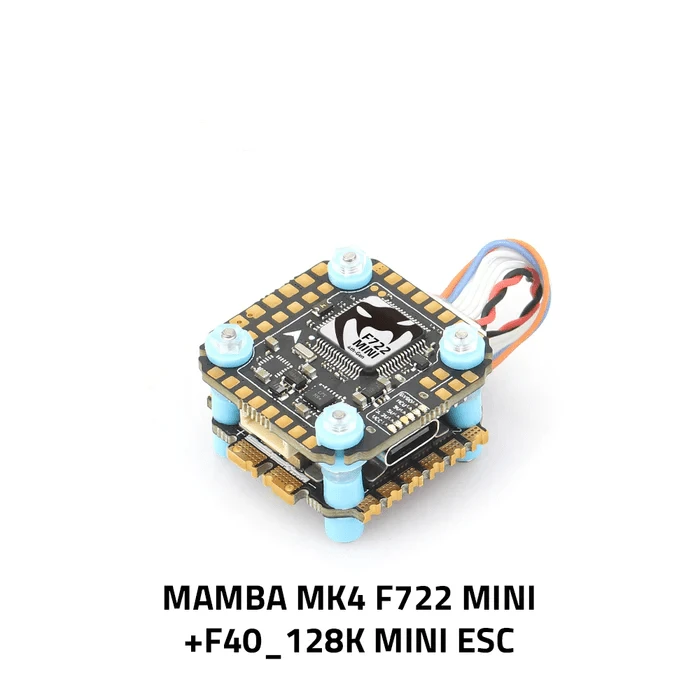

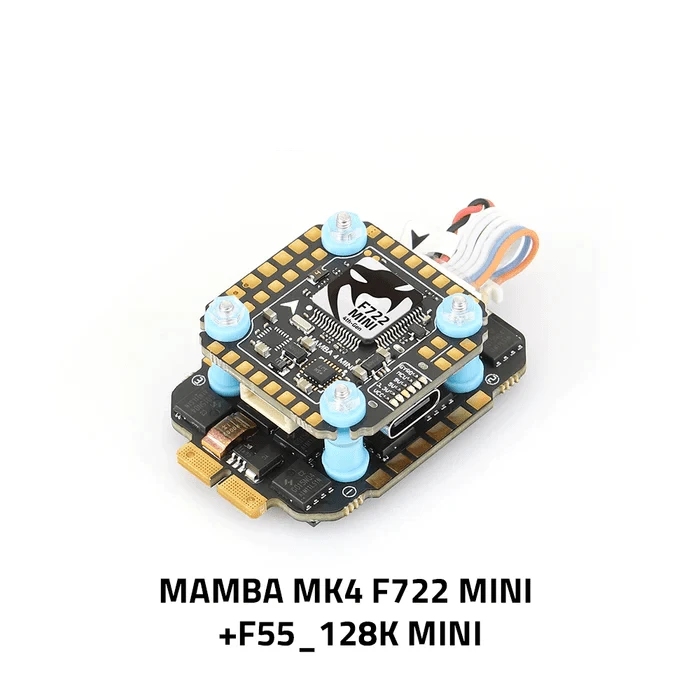

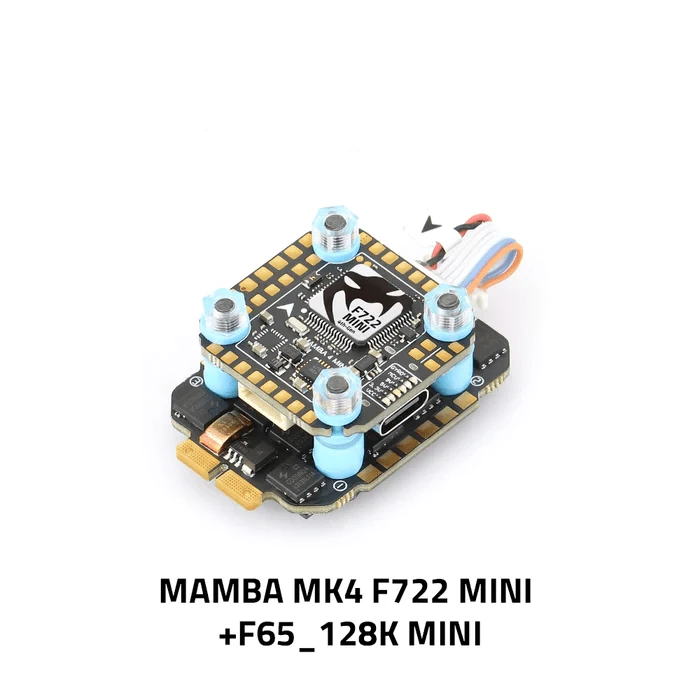

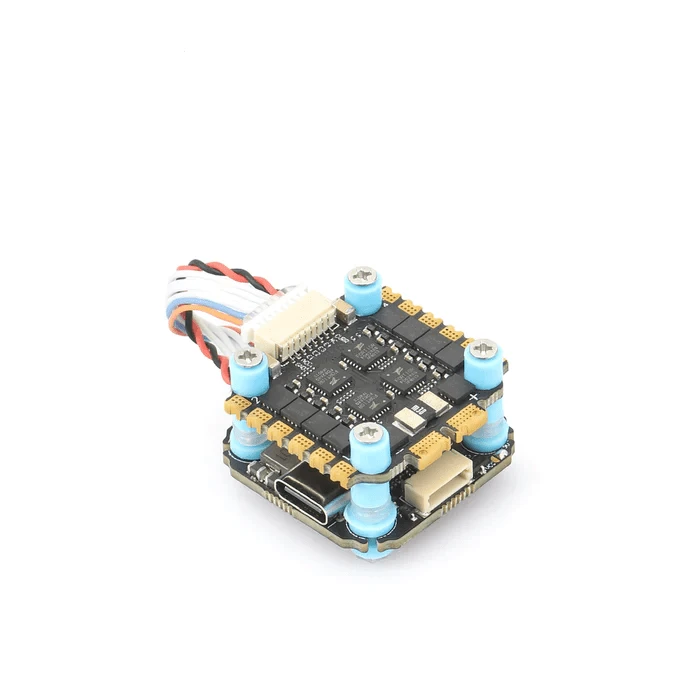

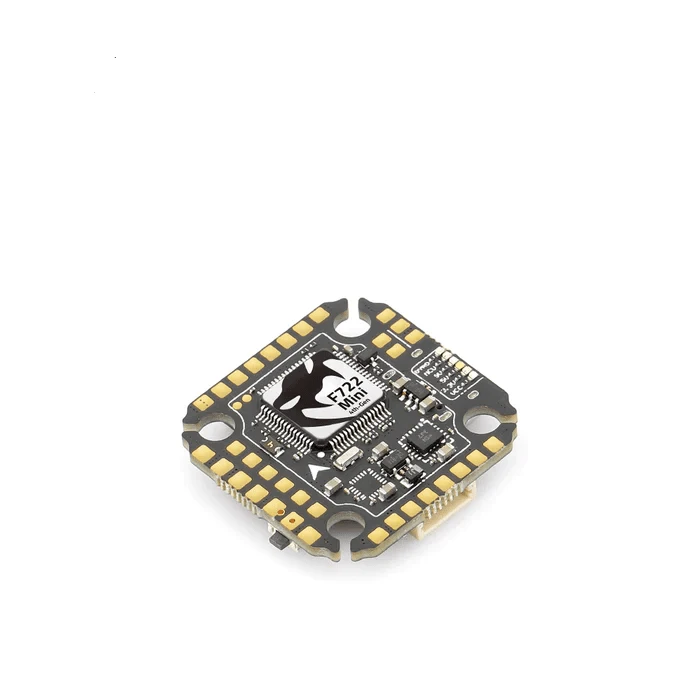

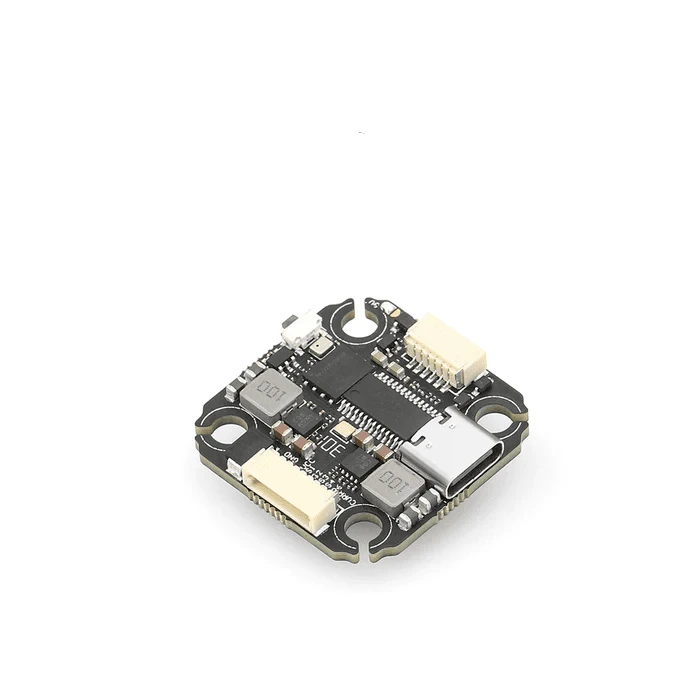

MAMBA MK4 F722 MINI F40/F55/F65128K Flight Controller Stack 3-6S MPU6000 20mm/M2
Original price was: $110.99.$77.69Current price is: $77.69.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION
Features:
1.Synchronous rectifying BEC
2.Large soldering pads
3.Type-C interface
4.BMI270 Gyro
5.Easy to use
6.20×20 sizeÂ
Specifiaction:
Receiver: TBS/SBUS/|IBUS/DSM
Mounting: 20.5x 20.5mm/M3
Receiver Protection: Yes
Blackbox: 16M Memory
WIFI: SpeedyBee APP
Frequency: 216MHz
Software: Betaflight
BEC Protection: Yes
TVS Protection: Yes
AIR UNIT Port: Yes
MCU: STM32F722
ESC Signal: 8 Set
Buzzer Pad: Yes
Gyro: MPU6000
VTX Switch: Yes
OSD: AT 7456E
BEC 3.3V: 0.5A
CURR Pad: Yes
Input: 6S Lipo
MB LED: Yes
Weight: 10g
BF LED: Yes
Uarts: 6 Set
BEC 9V: 3A
BEC 5: 3A
F.Port: Yes
12C: Yes
65A 128K ESC
Target：BLHeli_32 MAMBA F40_128K
Input Voltage: 3~6S Lipo 12.6-25.2V
Mounting Pattern: 20.5mm/M3
Protocol: Dshot300/600/1200
Continuous Current: 40A×4
Burst Current: 45A (10S)
BLHeli: BLHeli_Suite32
TVS Protection: Yes
PWM:24~128K
BEC: No
Package Includes:
1x Diatone  Mamba 3-6S MPU6000 MK4 F722 Mini Flight Stack with 40A/55A/65A BLHeli ESC
5x M3 ESC Isolation Dampers
5x M3 Silicone Dampers
1x 6-Pin Air Unit Cable
2x 8-Pin Cable
| ESC | 40A, 55A(+$7), 65A(+$27) |
|---|
