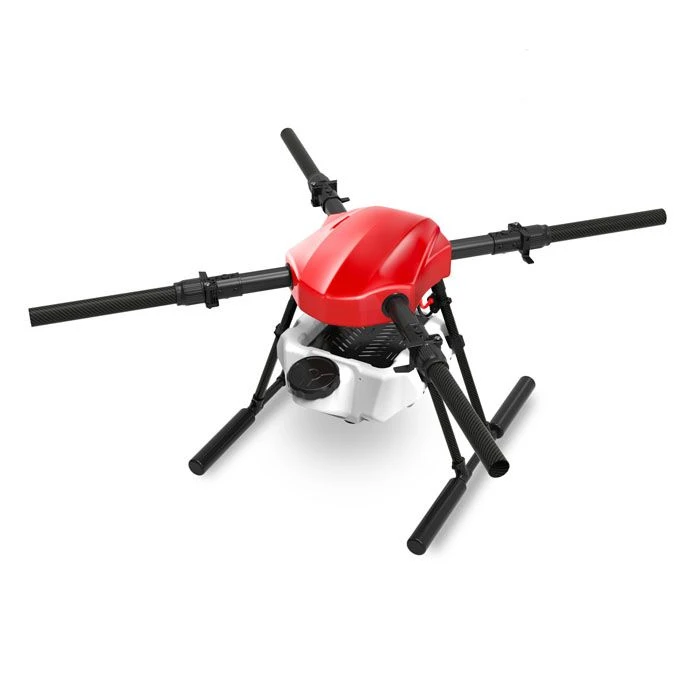

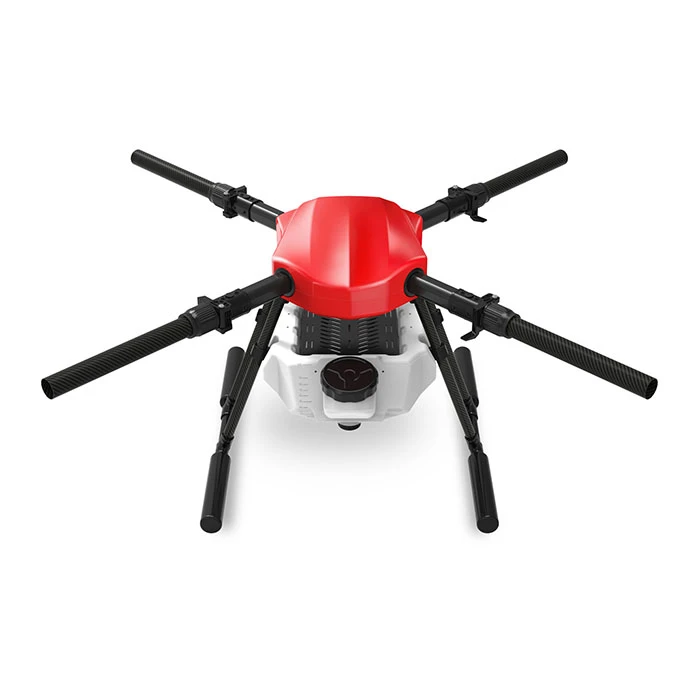

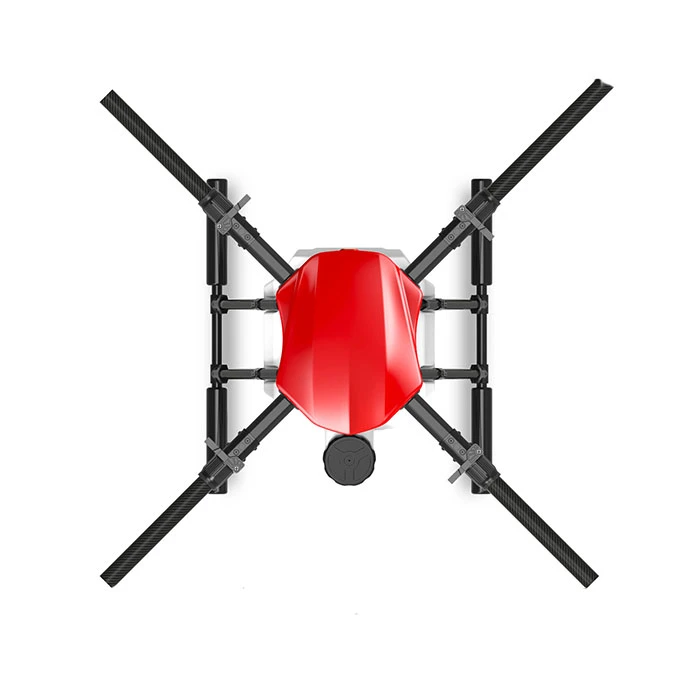

New ARRIS E410S 4 Axis 10L Agriculture Sprayer Farm Drone

Why Choose the Agricultural Drones?

1.High Efficiency
The agricultural drone operation is faster, and the single agriculture drone machine has an operating area of 400-600 mu per day, which is 50 times that of manual work. Large-scale operations can achieve the effect of unified defense.

2.Environmental Protection
Agriculture drone operation can save water and medicine, reduce the soil pollution and waste of water resources.

3. Good Effect
Under the pressure of the wind, the atomized liquid medicine is distributed to all levels of the crop with the wind force, so that pests and germs have nowhere to hide, and thanks to rapid operations, large-scale crops can be simultaneously controlled to achieve the effect of unified control.

4. Low Cost
Rechargeable lithium battery operation, one-time investment, long-term gains. At the same time, it can save manpower, water, medicine investment and reduce plant protection costs.

ARRIS E410S is the upgrade version of the popular E410 4 AXIS 10L UAV agriculture drone. The main difference between the two is the folding parts. As all we know, the folding parts on those agriculture drones are really important. The new folding parts are injection-molded and the structure is more stable and durable.

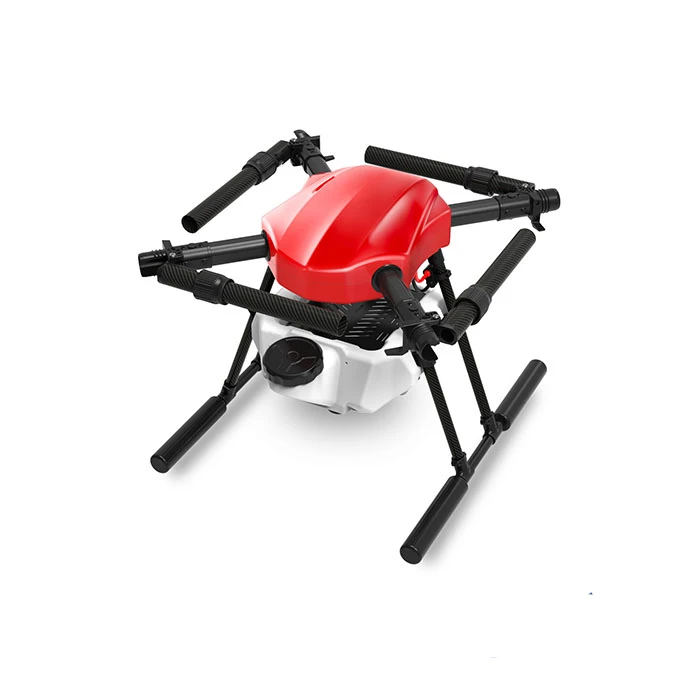

The unique L-shaped bracket design can support the motor when the arm is folded, avoiding the sagging of the arm during transportation.

Specifications:
Item Brand: ARRIS
Item Model: ARRIS E410S
Digonal Wheelbase: 1393mm
Unfolding sze: 1075x1075x490mm
Folding Dimensions: 635x666x490mm
Payload: 10L
Frame kit: 5kg (without spraying systems)

Recommended components:
Motor: X8, F8, 8118
Propeller: 29-32″ folding propeller
ESC: 80A ESC
Power Supply: 12S
Max take off weight: 25kg

Main Features:
Waterproof Body
With the new industrial design, the entire body is waterproof. New integrated power system,adopts FOC sinusoidal drive scheme,strong power, high efficieny and super durable.The body is streamlined and full of science and technology.It is overall waterproof, can be washed directly with water.

Brand new folding parts
The new folding parts are injection-molded and the structure is more stable and durable.The unique L-shaped bracket design can support the motor when the arm is folded, avoiding the sagging of the arm during transportation.

Cool taillights, Quick tuning
Unique hexagon tail light design, with the flight controlller indicator built-in installation, waterproor and concise. There is USB data dable interface in the button,Settings can be adjusted without removing the canopy, more convenient.

Hidden distribution board
The new distribution board adopts a separate and hidden design to isolate the power supply and signals, optimize the internal electromagnetic environment of the aircraft, and provide a larger space for flight control installation, which makes the wiring more concise.

Reserved equipment expansion port
There are several equipement expansion ports reserved at the side and botton of the frame. It is convenient to install RTK, water pump, radar and other extended equipment under the premise of waterproof protection.

Increase the Pesticide tank inlet
The overall expansion of the drug-adding port reduces the spillage of the liquid and makes the dosing process smoother.

Reinforced power plug
The main power cable exits from the side,and the battery interface is fixed on the side of the landing skid to avoid obstruction of the plug when replacing the battery. The plug connector is more secure and stronger.Two version of connectors are optional:AS150 and XT150U.

Frame Combo Included:
ARRIS E410 Frame x 1
Spaying system x 1

Combo 1 Included:
ARRIS E410S 4 Axis 10L Agriculture Drone Frame x 1
Spraying System x 1
ARRIS A30 Propulsion system CW X 2
ARRIS A30 Propulsion system CCW X 2
