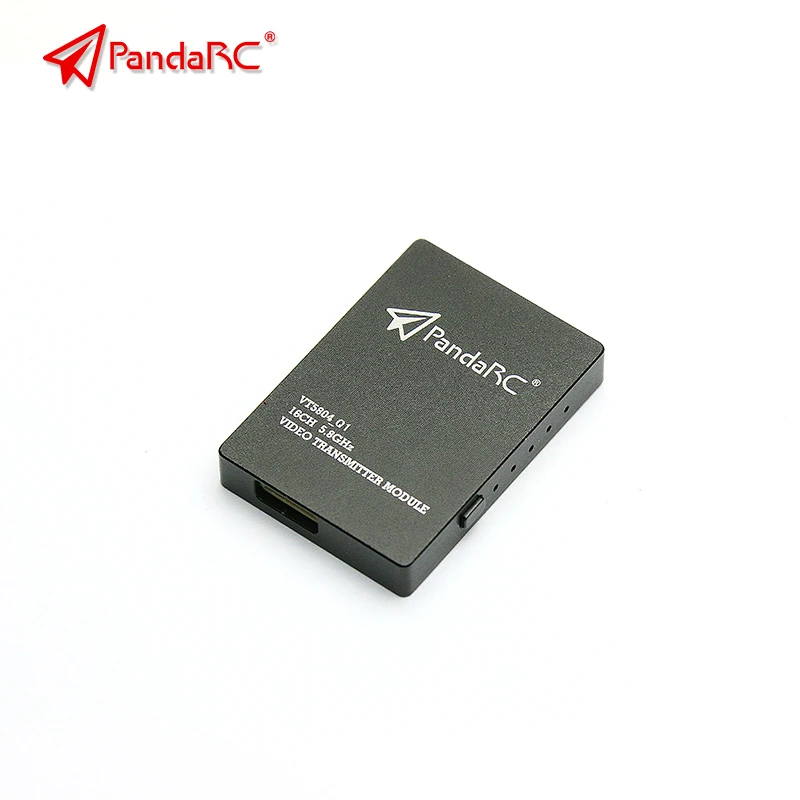

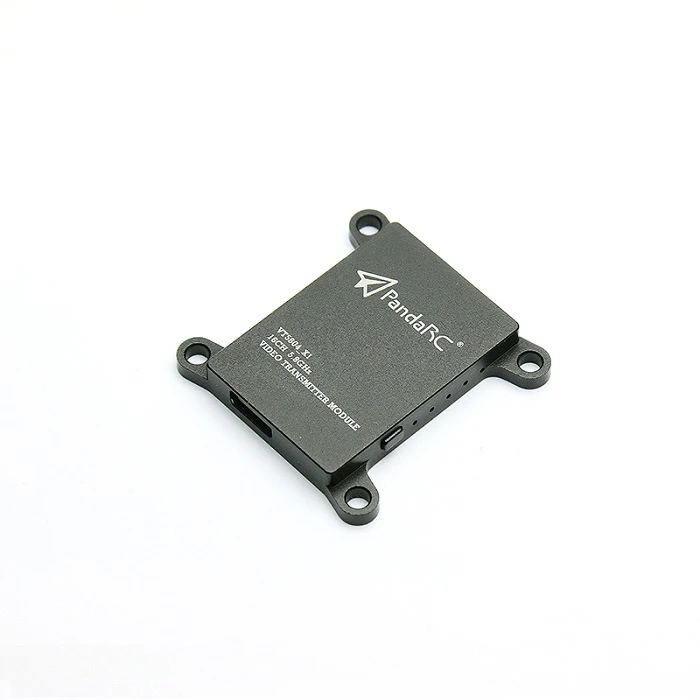

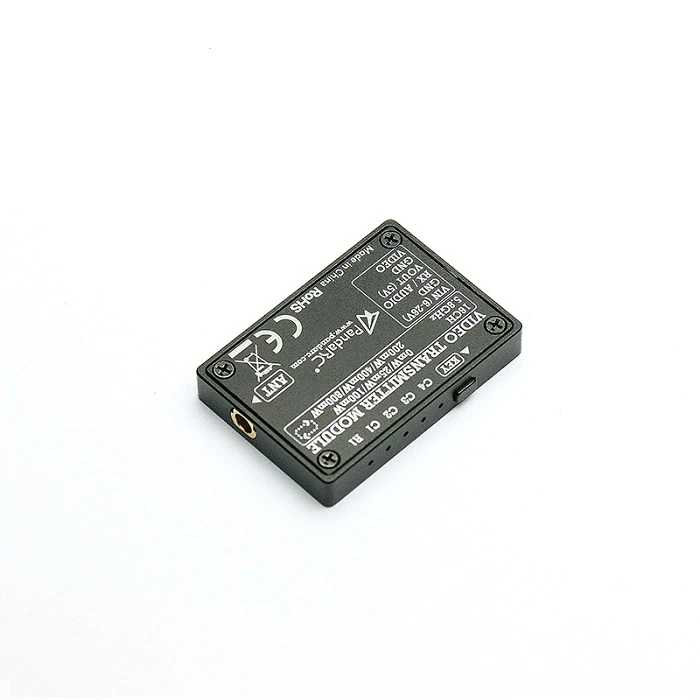

PandaRC VT5804 X1 Q1 25mW/200mW/400mW/800mW Switchable Video Transmitter

PandaRC VT5804 X1 is the newly big power video transmitter released by Panda RC. It has big and stable output power, long distance transmission,strong power supply performance. It can also ensure that the image has no snowflake and no horizontal stripes under the maximum throttle. It support 8 people flying at the same time. And the number of cumbersome channels has been reduced to 16 common channels (including all R and A channels).

Specification:
Radio Frequency Output Impedance:50 Ohm
output power : 28.5-29.5dBm
input voltage : 6-26V
Video Bandwidth:8MHZ
Audio carrier frequency:6.5MHZ
Video input level:0.8-1.2 VP-P
Audio input level:0.5-2.0 VP-P
Audio input impedance:10K Ohm
Antenna interface : MMCX
weight : 9g
Size : VT5804-X1 36*36*5.5MM

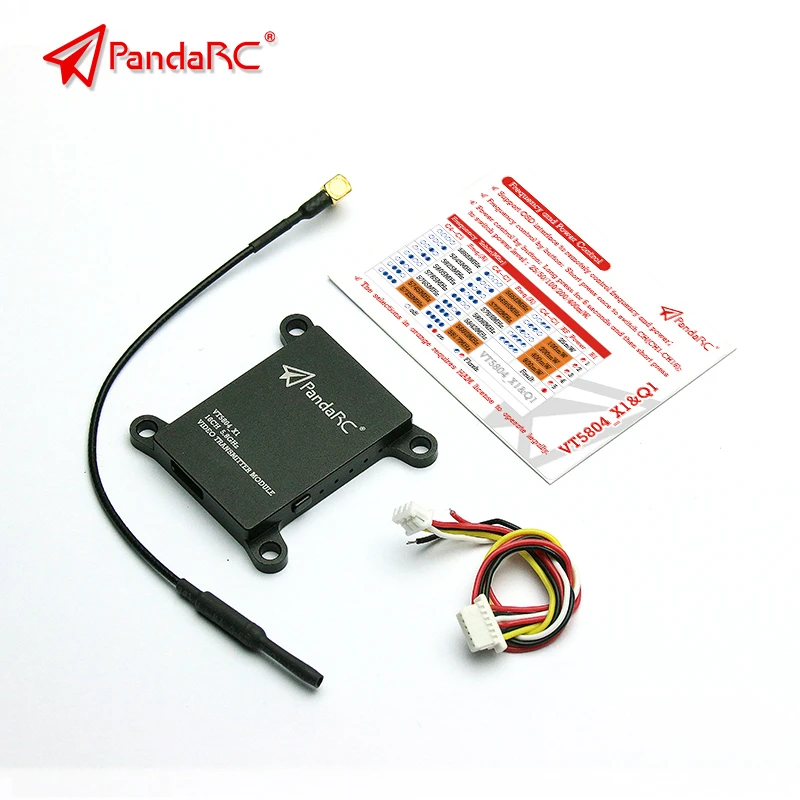

Package included:
1 x PandaRC VT5804 X1 25/100/200/400/800mW FPV Transmitter

Precautions for use:
1. Make sure that the antenna is installed at the output before powering up to avoid damage to internal components.
2. Note that the input voltage is within the specified range and is correct and correct to avoid damaging the internal components;
3. If the antenna is replaced, please select the standing wave and the antenna with good gain to obtain a longer transmission distance;
4. Pay attention to static electricity during transportation and installation
