Radiolink AT9S 10 Channel 2.4GHz Radio With R9DS Receiver

Radiolink AT9S 10 Channel 2.4GHz Radio with R9DS Receiver

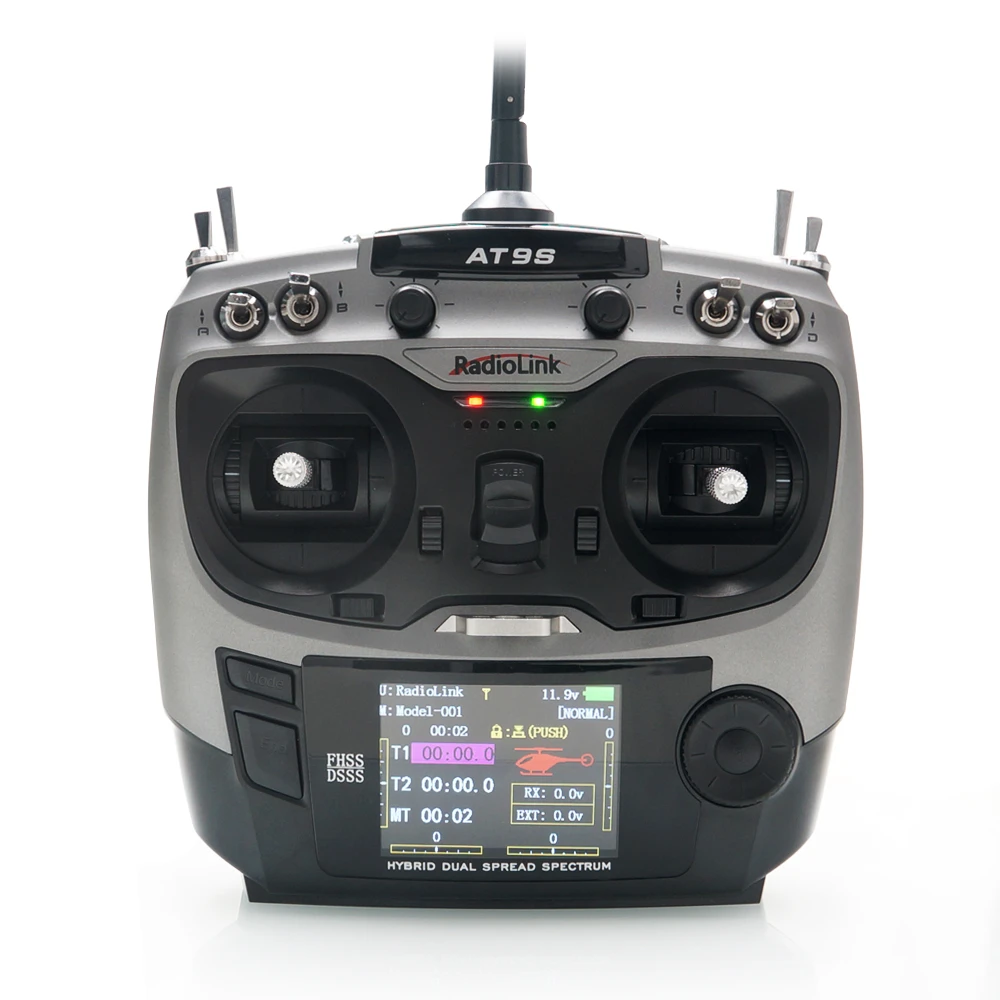

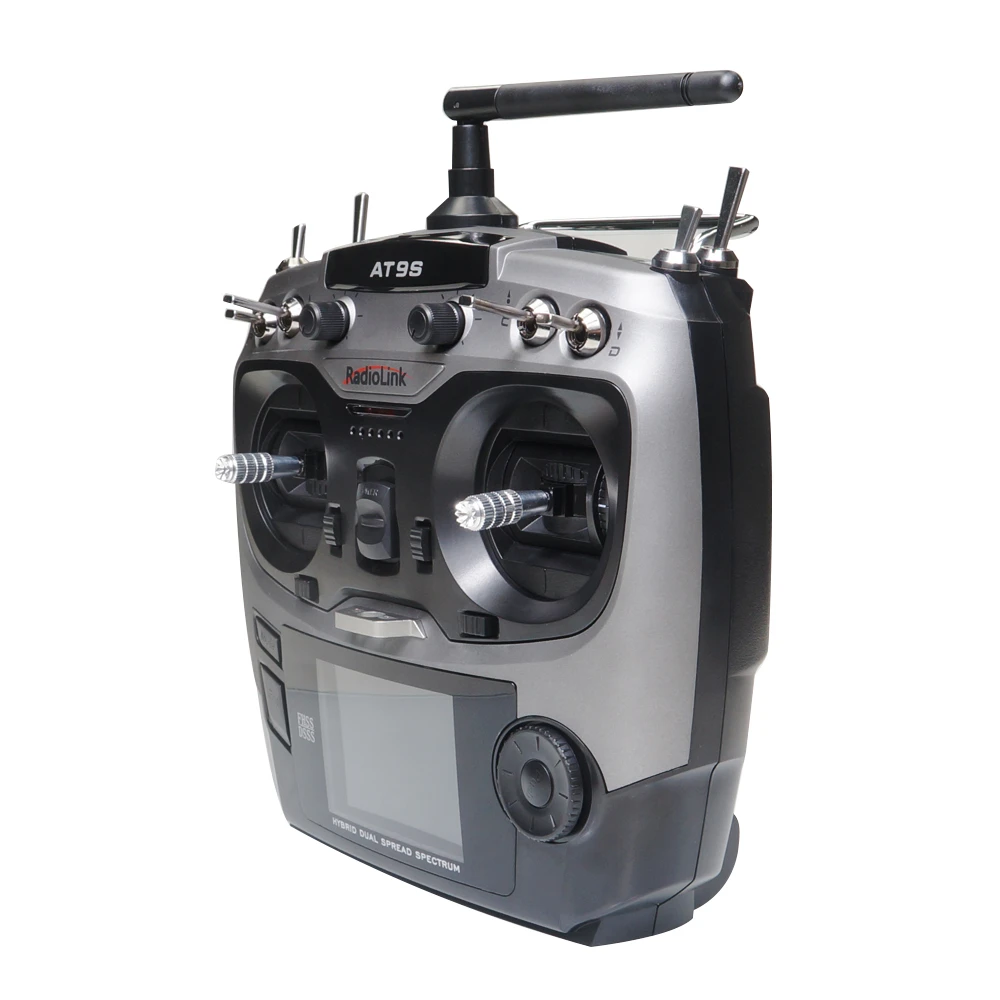

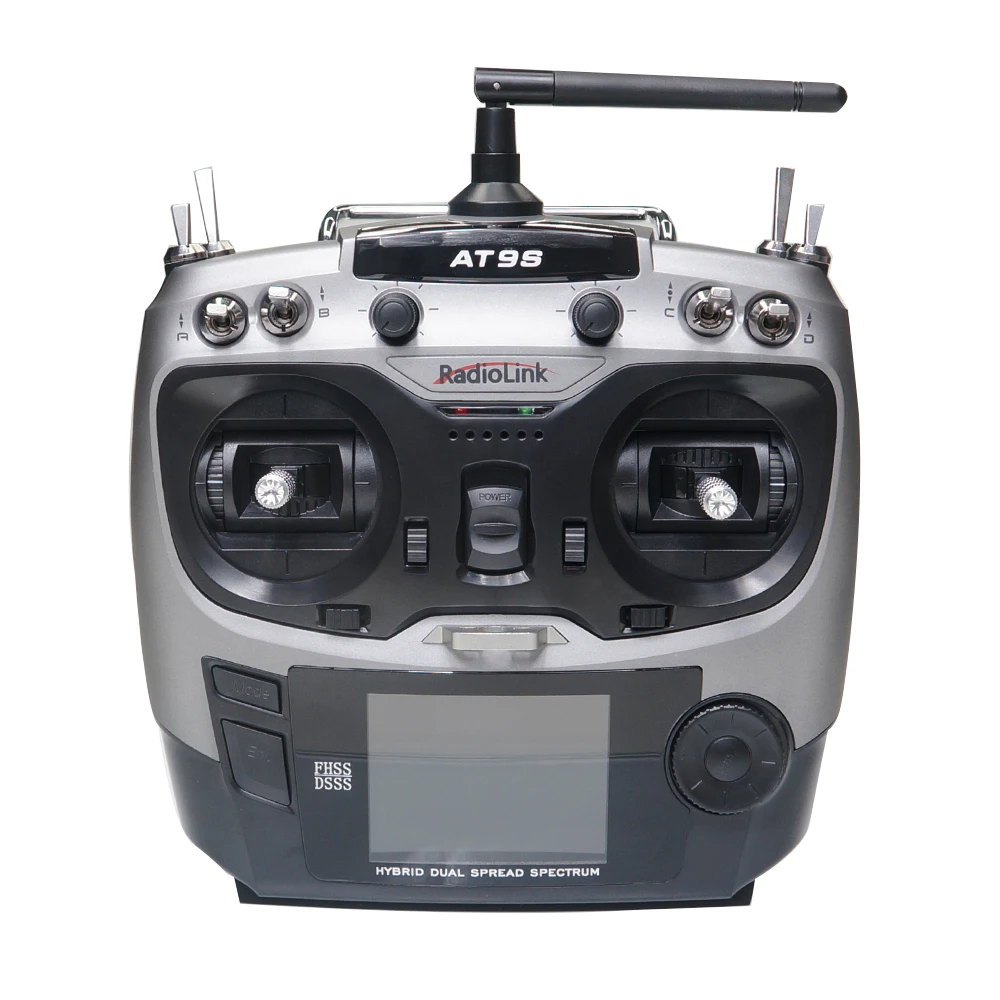

Radiolink AT9S 10 Channel radio is a newly released radio from Radiolink. It can support SBUS, PPM and PWM signal. The controllable range of the radio is about 900 meters ground and 1500 meters air. The radiolink AT9S can be used to control the multirotors, helicopters,airplanes, fixed wing,RC car and RC boat. One of the main feature is the multilanguage menu: English, Spanish, German, Italian, French, Turkish, Russian, Korean and Chinese are available in the menu.

Specification
Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
Modulation mode: QPSK
Channel bandwidth: 5.0 MHz and 250Kbps
Spread spectrum: DSSS&FHSS
Adjacent channel rejection: >38dbm
Transmitter power: less than 100mW (20dbm )
Operating current: 90mA@12V
Operating voltage: 7.4~18.0V
Control distance: More than 900 meters ground, 1500 meters air (the actual controldistance depends on the flying environment)
Channel: 10 channels,5-10 channels are customized
Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
Simulator model: under the simulator model the transmitter action turn off, change to power saving model
Screen: 2.8 inches 16 colorful screen, 240*320 pixels
Support receivers: R9DS(S-BUS&PWM), R10DS and R6DS
Size: AT9S- 183 x 100 x 193mm, R9DS- 41 x 23 x 14mm
Weight: 0.88kg

Package Included:
Radiolink AT9S 10 Channel Radio x 1
Radiolink R9Ds receiver x 1
Radil Sling x 1
