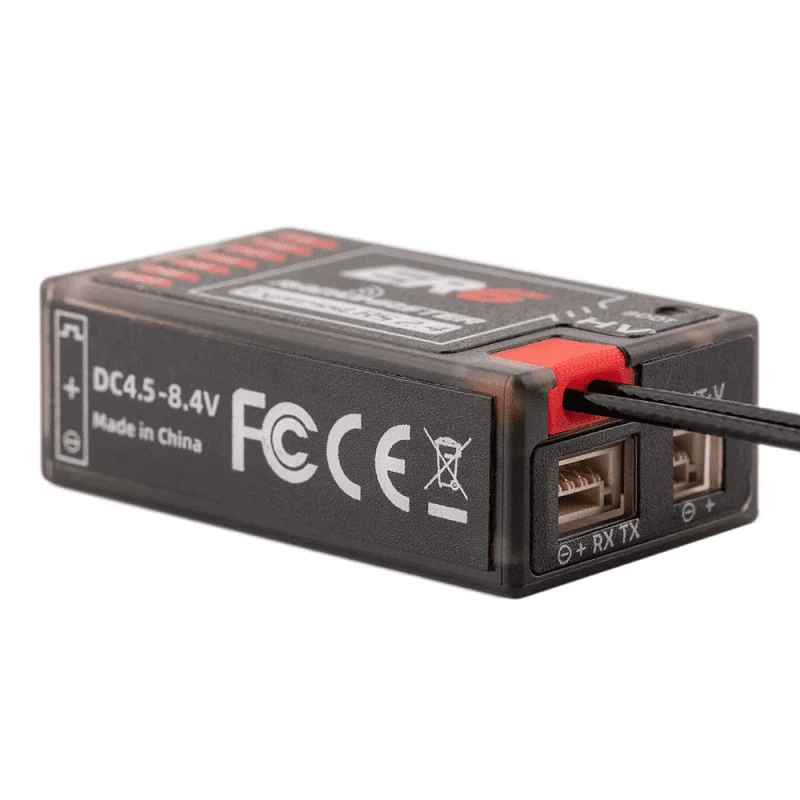

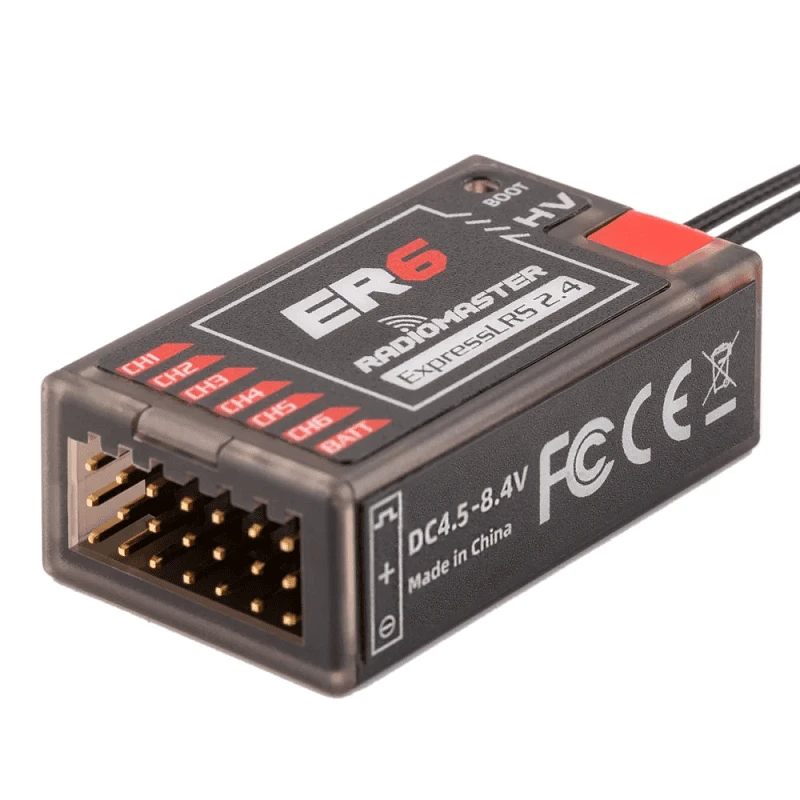

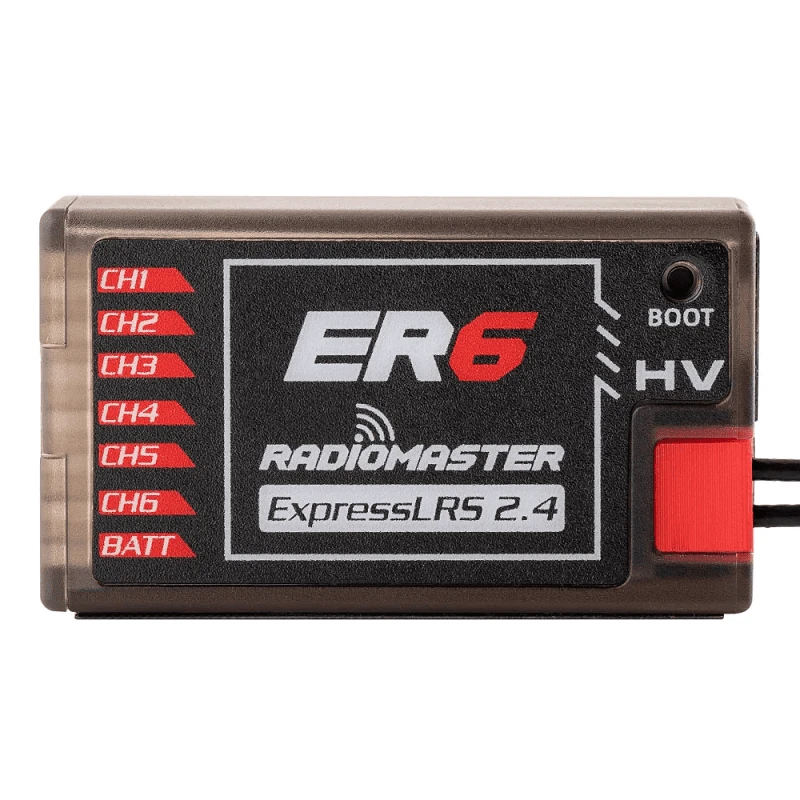

Radiomaster ER6 2.4GHz ELRS PWM Receiver For Fixed-Wing Aircraft

Radiomaster ER6 2.4GHz ELRS PWM Receiver For Fixed-Wing Aircraft - Image 2

Radiomaster ER6 2.4GHz ELRS PWM Receiver For Fixed-Wing Aircraft - Image 3

Radiomaster ER6 2.4GHz ELRS PWM Receiver For Fixed-Wing Aircraft - Image 4

Radiomaster ER6 2.4GHz ELRS PWM Receiver For Fixed-Wing Aircraft - Image 5

Radiomaster ER6 2.4GHz ELRS PWM Receiver For Fixed-Wing Aircraft -Drone Supply Store radiomaster er6 receiver 15

Radiomaster ER6 2.4GHz ELRS PWM Receiver For Fixed-Wing Aircraft -Drone Supply Store radiomaster er6 receiver 16

Radiomaster ER6 2.4GHz ELRS PWM Receiver For Fixed-Wing Aircraft

Original price was: $24.99.Current price is: $17.49.

SKU: CMMTD 9371027558 Categories: ACCESSORIES, Radio & Receiver

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

Description
Reviews (0)

PRODUCT DESCRIPTION

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.
The Radiomaster ER6 receiver has been specially designed for fixed-wing users. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER8 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Features
1.Based on the Revolutionary ExpressLRS System
2.High performance, high reliability, flexible configuration, fast response speed and ultra-long range
3.Support 8 PWM Channels
4.Optimized ground up PCB design
5.Automatically voltage telemetry of external battery voltage or built-in receiver voltage
6.Supports Wi-Fi updates and WEBUI configuration
7.High quality 2.54 mm connector
8.Standard 20 cm High Sensitivity Antenna
9.Reserve 4pin CRSF input port
10.Shell adopts one-piece molding process with high structural strength
11.For fixed-wing aircraft and more

Specification
Item: ER6 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 – 8.4V

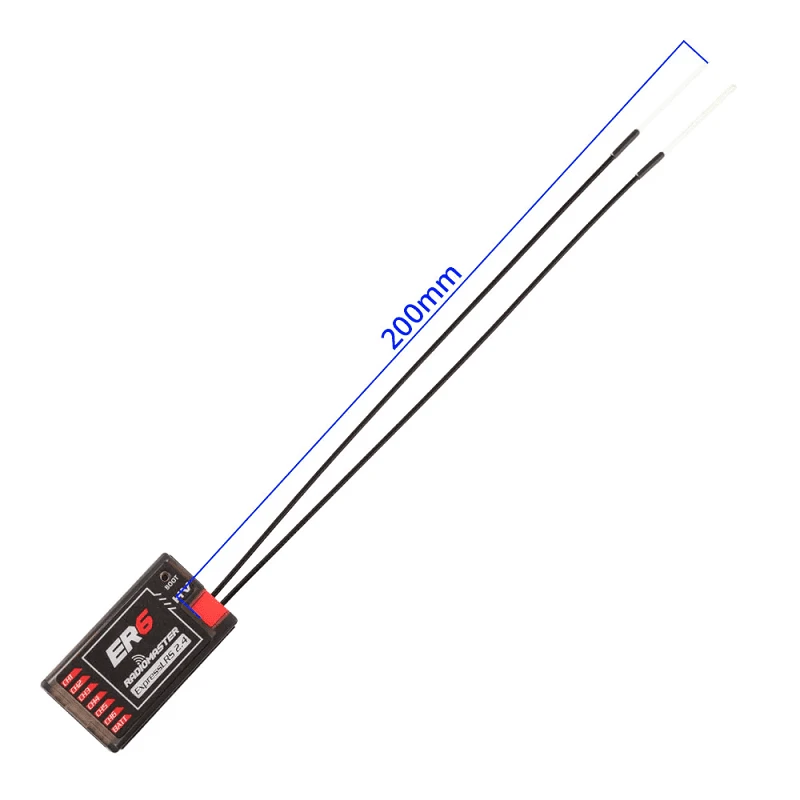

Antenna type: 20cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 8CH PWM
Telemetry power: maximum 100mw (LUA Adjustable)
Battery voltage detection range: DC 4.0 – 35V
Bus interface: CRSF
Weight: 14.5 grams

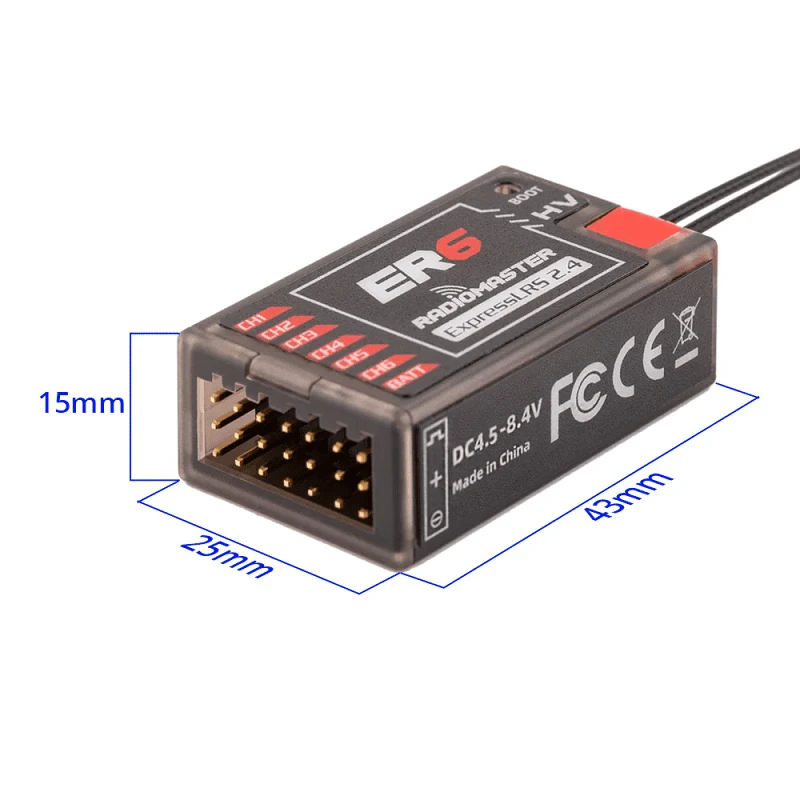

Size: 43*25*15mm
Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8 2400 PWM RX

Package Includes
1x ER6 2.4GHz ELRS PWM Receiver
1x Voltage telemetry wire (Type-B)
1x CRSF wire
1x ELRS- RX- SBUS wire
1x User Card
