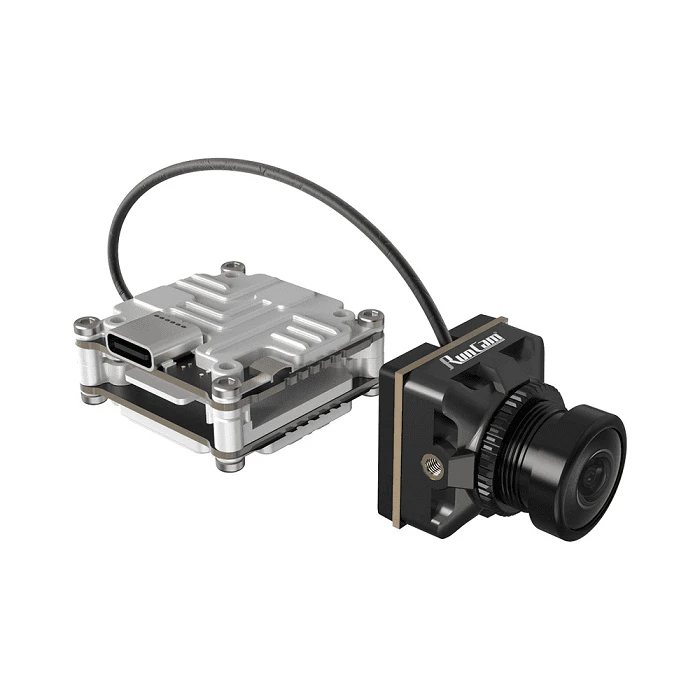

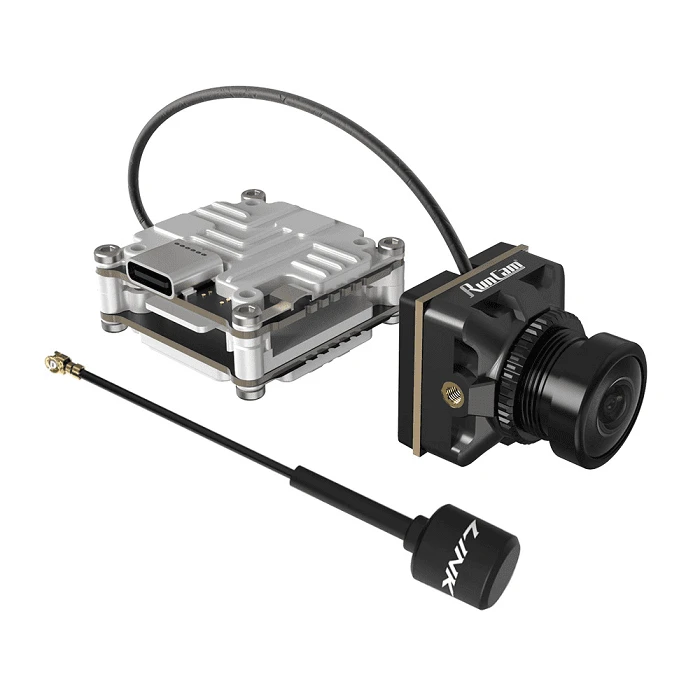

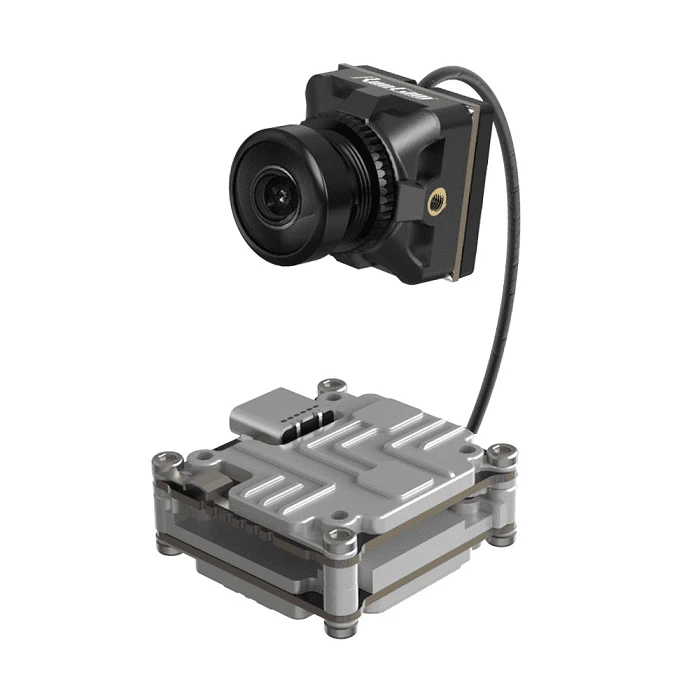

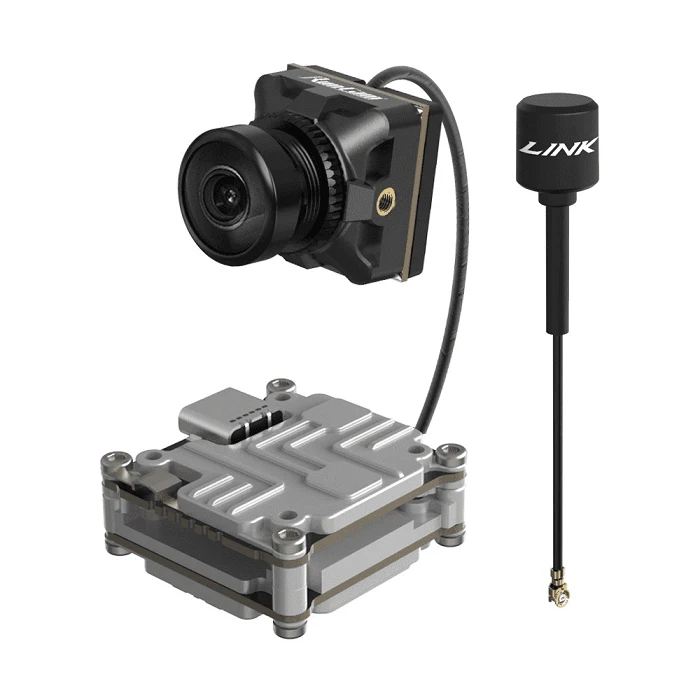

RunCam Link Phoenix Digital HD Air Unit FPV Camera Kit

The RunCam Link Phoenix HD Kit includes Link Air Unit + Phoenix HD Camera . The RunCam Link is  1280×720 60fps resolution to see clearly and boasts great low-light performance thanks to its 1/2″ high-sensitivity sensor.

About Runcam Link Digital FPV Air Unit
The Runcam Link Digital FPV Air Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 1280 x 720 60fps image transmission, with a transmission range of up to 4 km and a minimum end-to-end latency within 32 ms*. The air unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly.

Frestures:
1.8 channels,drones:The HDL FPV transmission system and the FPV AIR Unit are equipped with eright frequency channels,which allow up to eright drones to fly simultaneously.Each operator has an exclusive channel.Theis helps to reduce cross-interference and provide an optimal racing experience.
2.Embedded remote controller receiver:Uers can wirelessly conenct their DJI FPV Air Unit to the DJI FPV Remote Controller without having to purchase addtional receivers.
3.Use 1/2 inch,up to 10650 mV/Lux-sec ultra-high sensitivity sensor,excellent night vision.

Specifications:
RunCam LINK Phoenix HD Kit
Weight: Air Unit (camera included): 27 g
Weight: Air Unit (alone): 19.5
Dimensions :
Air Unit: 29×29×13 mm
Camera:L19mm*W19mm*H23.5mm
Coaxial Cable: 120 mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP) :
FCC/SRRC: <30 dBm;
CE: <14 dBm
Min. Latency (end-to-end): 1280 x 720 60fps: 32 ms
Max. Transmission Distance: FCC/SRRC: 4 km; CE: 0.7 km;
I/O Interface: Type-C, IPEX, 3-in-1 port,
Supported Flight Control System: BetaFlight
Operating Temperature Range: 0° to 40° C (32° to 104° F)
Power: 7.4-26.4V@ 4-9W

RunCam Phoenix HD Camera

Image Sensor: 1/2
Resolution: 1280*720@60fps
LENS: FOV D:157° H:133° V:72°
Shutter: Rolling Shutter
Coaxial Cable: 120 mm
Dimensions: L19mm*W19mm*H23.5mm
Weight: 7.5g

Package Includes:
1 x Link Air Unit + Phoenix HD Camera
1 x APEX Antenna
1 x JST SH 1.0 6pin Cable
