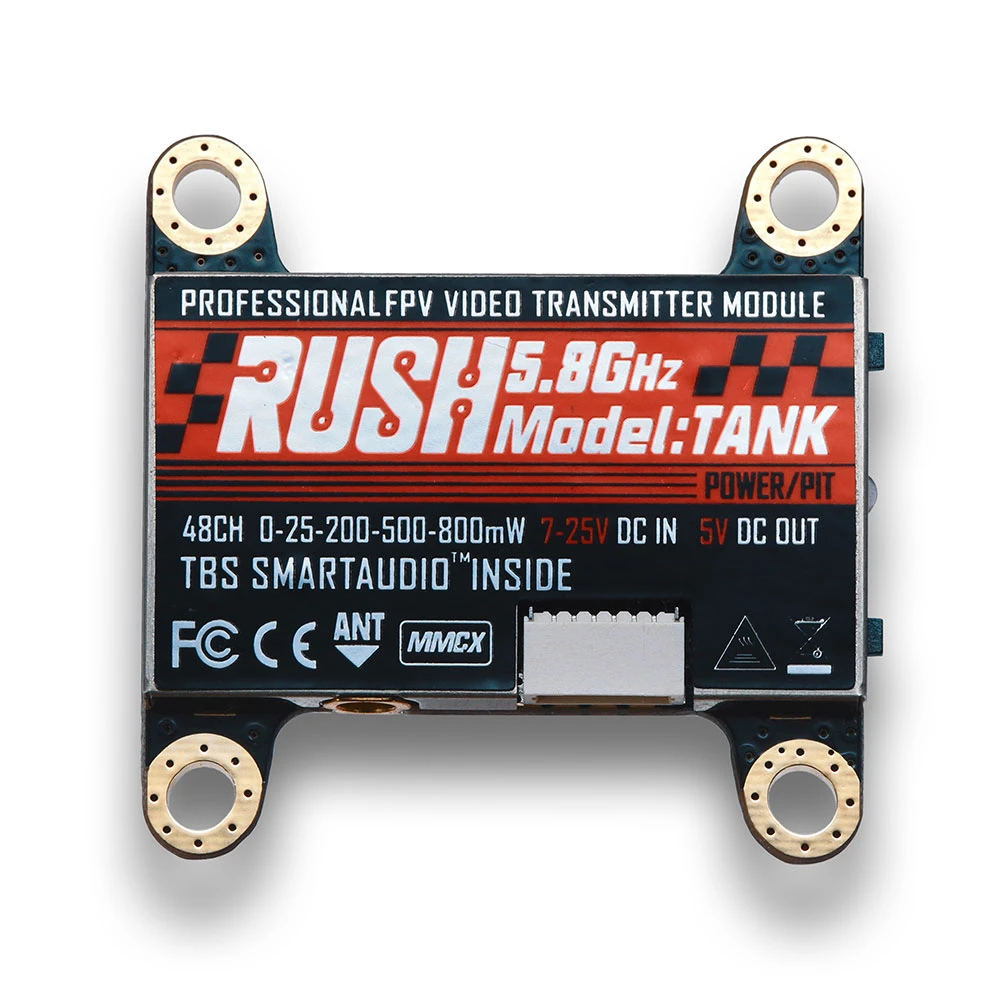

RUSH TANK PIT/25/200/500/800mW 48CH Video Transmitter For FPV Racing Drones

RUSH TANK PIT/25/200/500/800mW 48CH Video Transmitter is specially designed for fpv racing quads. It has strong anti-interference ability and super table transmission. 4 transmit power is adjustable, more convenient to use. Reserved with 30.5×30.5 installation holes for tower structure flight controller. Under teh fully covered metal case, there are 6 layers of PCB after waterproofing work, the VTX is fully protected. What’s more, the thickness of the vtx is only 4mm, and the weight is only 6.8g.

Specifications:
Model: RUSH TANK ULTIMATE 5.8G VTX
Input Voltage: 7-25V HV (2-6S Lipo)
On board DC output: 5V 1A max
Channels: 48
Transmit Power: PIT/0mW 25mW/14dBm 200mW/23dBm 500mW/27dBm 800mW/29dBm
Video format: PAL/NTSC
Serial prototol: TBS Smart Audio V1
Antenna connector: MMCX 50Ω
Socket: JST 1.0mm 6 pin /PADS
Mounting holes: M3 x 4 30-30.5mm spacing
Size: 36mm x 36mm x 4-4.5mm
Weight: 6.8g (Cable not in cluded)

Package Included:
RUSH TANK PIT/25/200/500/800mW 48CH VTX x 1
