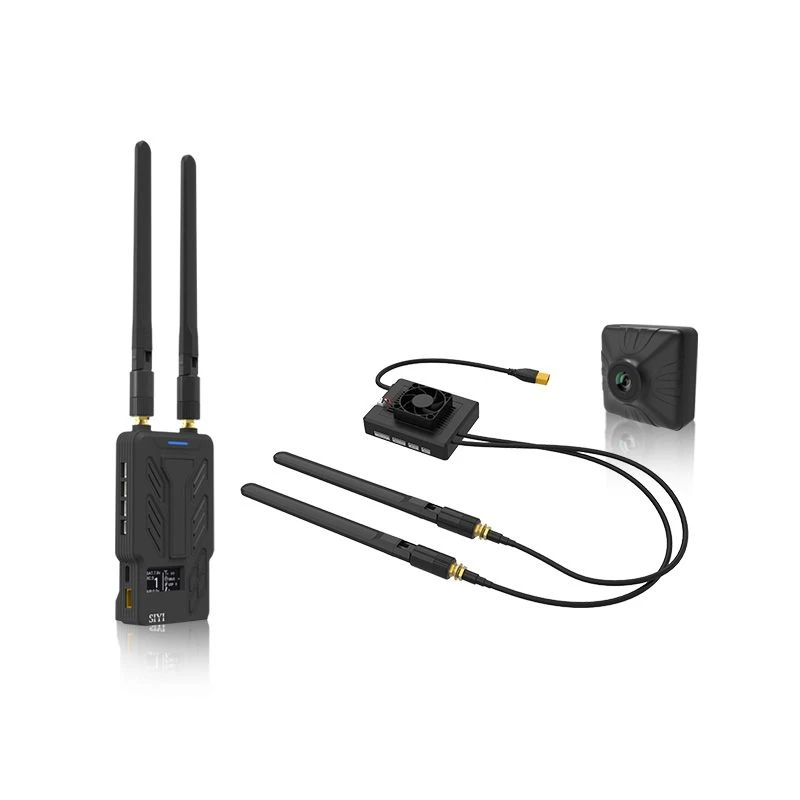

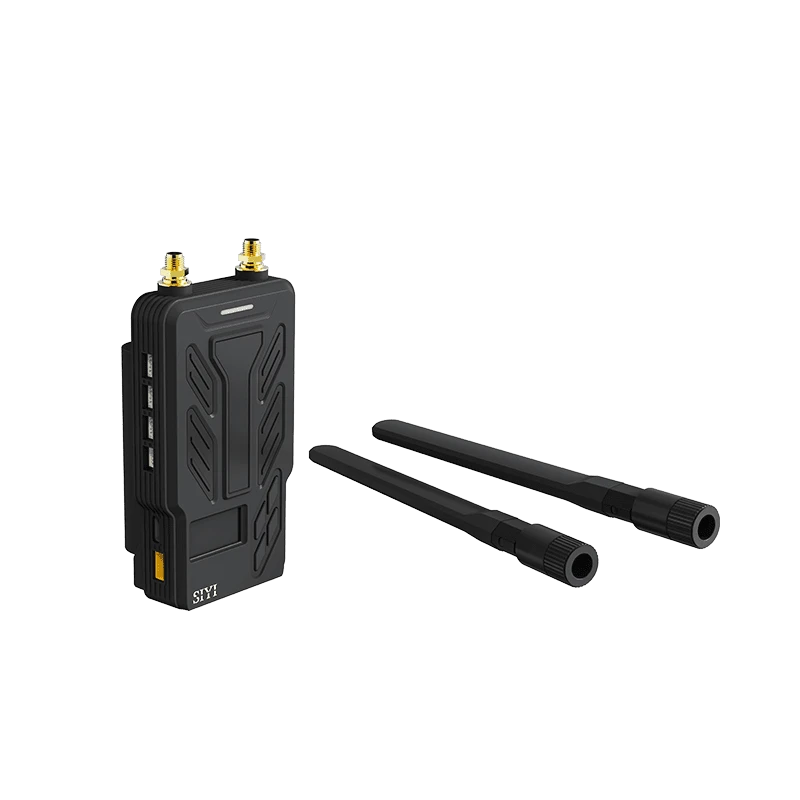

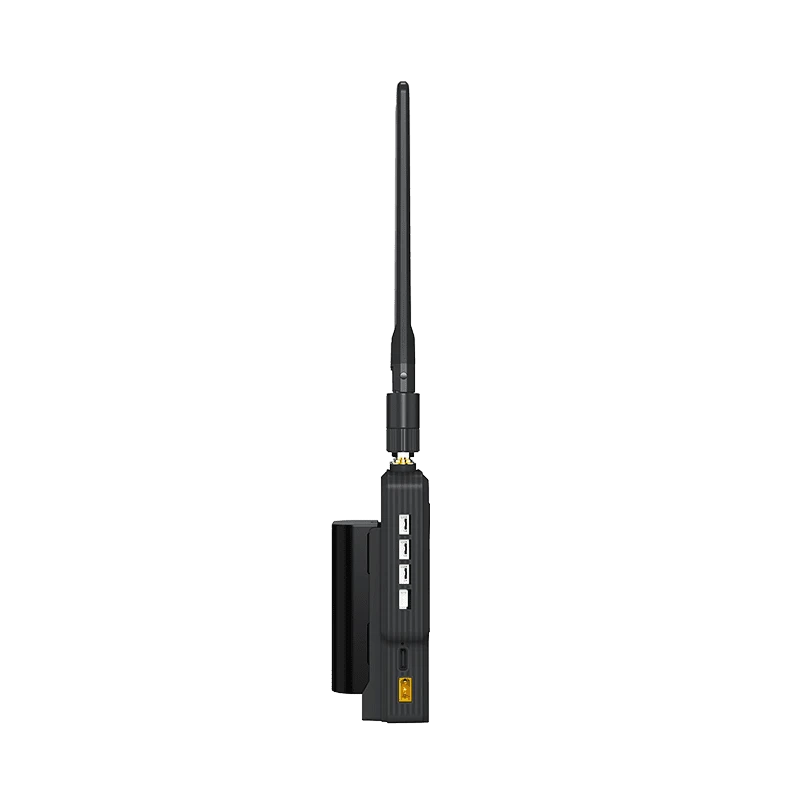

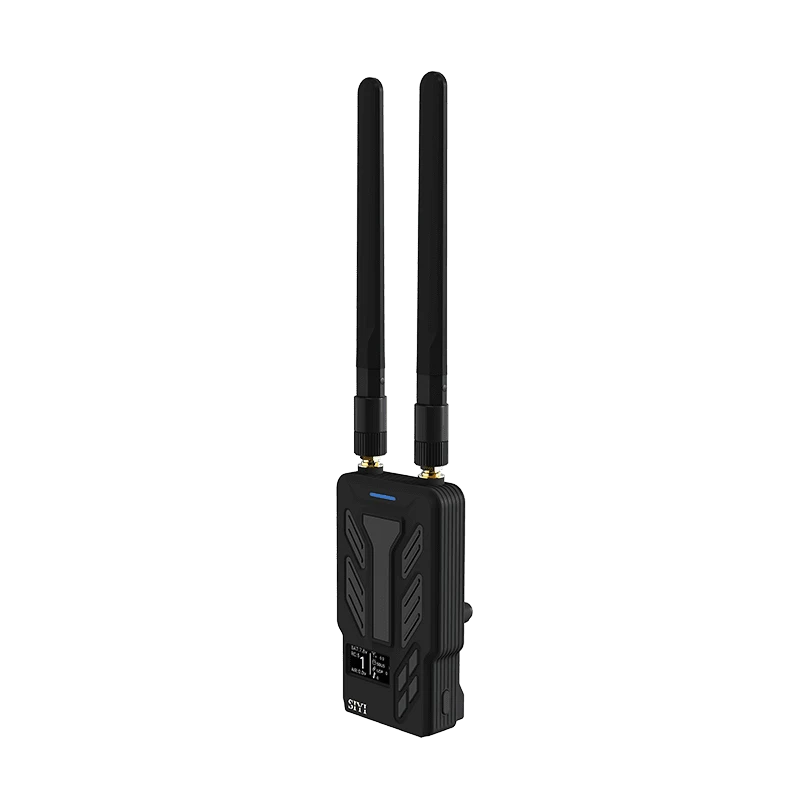

SIYI HM30 30KM Long Range 1080P Full HD Digital Wireless Transmission System
Original price was: $299.99.$95.99Current price is: $95.99.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION
Range Test Video:
Main Features:
–Full HD Digital Image transmission
–Up to 30KM long range
–150ms low latency
–1080P@60fps H.264/H.265 Decoding
–OLED touchscreen
–FPV OSD
–Support PIX and QGC
–Android & IOS Device compatible
| Max Transmission Range | 30 km (Unobstructed, free of interference) |
| Channels | 16 communication channels |
| Datalink Compatible Flight Controllers | PX4 / ArduPilot Open-Source Flight Controllers: SIYI N7, etc. INAV Open-Source Flight Controllers |
| Video Stream Compatible GCS (Android) | SIYI Factory Apps: SIYI FPV Open-Source GCS: QgroundControl Mission Planner |
| Video Stream Compatible GCS (Windows) | Open-Source GCS: QGroundControl Mission Planner (H264 only) |
| Monitor |
0.96-inch OLED Display |
| Compatible Battery Type |
NP-F550 / F750 / F950 Series Quick Release Batteries (HM30 fly more combo comes with NP-750 quick release battery) |
| Fast Charging Protocol |
PD 30W |
| Antenna Gain |
Standard Omni Antenna: 5 dBi Standard Long Range Antenna: 11 dBi (Optional) Lollipop Antenna: 5 dBi |
| Interface & Ports |
S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin)Â Datalink Output: UART (GH1.25 4-pin)Â Ethernet Port: LAN (GH1.25 4-pin)Â Power Output: VCC (GH1.25 4-pin, without bucket)Â GCS Datalink Communication: Type-CÂ Firmware Upgrade: Type-CÂ Charge: Type-CÂ Power Input: PWR (XT30)Â Tripod Connector: 1/4-inch Screw Hole |
| Product Dimensions (Battery and antennas excluded) |
109 x 61 x 28 mm |
| Product Dimensions (Battery and antennas excluded) |
132 g |
| Waterproof Level |
IP53 |
| Working Temperature |
-10 ~ 50℃ |
| Signal Output |
16 channels of S.Bus 5 channels of PWM |
| Interface & Ports |
S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin)Â Datalink (to FC): UART (GH1.25 4-Pin)Â PWM Channel 1 to 5: PWM (GH1.25 6-Pin)Â Video Input / Network Communication: LAN (GH1.25 8-Pin)Â Firmware Upgrade: Type-C |
| Antenna Gain |
Omni Antenna: 5 dBi (Standard) Lollipop Antenna: 5 dBi (Optional) |
| Working Voltage |
HM30 Air Unit:Â 3S ~ 6S / 12.6 ~ 25.2 VÂ 4S to 18S Power Module (Optional):Â 16.8 ~ 75.6 V |
| Power Consumption |
HM30 Air Unit:Â – Average: 2.8 WÂ – Summit: 12 WÂ Â HM30 Air Unit + 4S to 18S Power Module:Â – Average: 3.2 WÂ – Summit: 12 W |
| Dimensions (Antenna Excluded) |
70 x 55 x 16 mm (fan included) |
| Weight (Antenna Excluded) |
HM30 Air Unit: 74 g HM30 Air Unit + 4S to 18S Power Module: 109 g |
| Working Temperature |
-10 ~ 50℃ |
| Video Output Port |
Ethernet |
| Image Sensor |
1/2.9 Inch, 2 MP |
| FOV |
Diagonal: 90° Horizontal: 80° |
| Working Voltage |
12 V |
| Power Consumption |
2.5 W |
| Video Recording Resolution |
1080p (1920*1080) @ 30 fps 720p (1280*720) @ 30 fps |
| Recording Bitrate |
12 Mbps |
| Video Recording Format |
MP4 |
| Supported TF / SD Card Type |
MicroSD Class10Â Less than 32GB |
| File Storage Format |
FAT32 |
| Dimensions |
42 x 42 x 25 mm |
| Weight |
23 g |
| Working Temperature |
-10℃ ~ 50℃ |
| Version | FPV Combo (MA0186), Fly More Combo (MA0187)(+$50) |
|---|
