SIYI HM30 DUAL Long Range Full HD Digital Image Transmission FPV System With Dual Operator And Remote Control Relay
Original price was: $397.00.$99.99Current price is: $99.99.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION

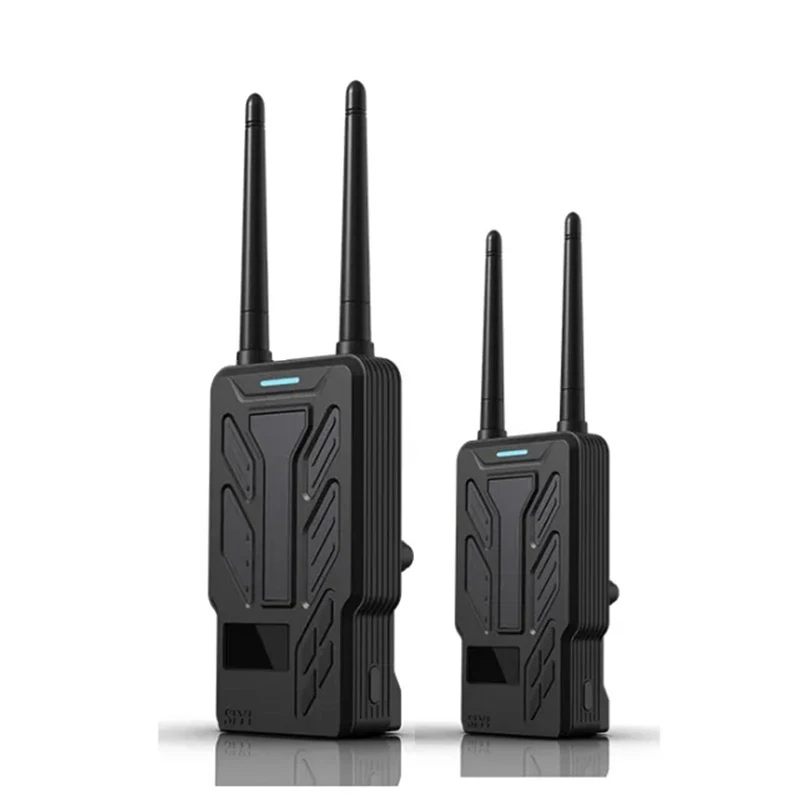

2 x HM30 Ground Unit(Dual Version)
1 x HM30 Air Unit
1 x R1M Recording Camera
2 x Quick Release Battery
2 x PD Fast Charger
SIYI HM30 is a 1080P full HD videolink based on the latest image transmission technology developed by Siyi at 150ms low latency, the range can reach to 30KM. It is suitable for FPV drones, Airplanes, industrial application drones, UAV drones, boats, robotics and etc.
Range Test Video:
Main Features:
–Full HD Digital Image transmission
–Up to 30KM long range
–150ms low latency
–1080P@60fps H.264/H.265 Decoding
–OLED touchscreen
–FPV OSD
–Support PIX and QGC
–Android & IOS Device compatible
Max FPV Range: 30 KM
Datalink Stream supported FC (Mavlink): Pixhawk, APM, SN+, SN-NAVI, MATEK H743/F405, or any other flight controllers with UART output
Video Stream supported GCS (RTSP): QGroundControl, SIYI FPV
Functional Interface:
RC: Remote control signal input
UART: Datalink output
LAN: Ethernet port
VCC: Power output
Type-C: USB video stream output, PD fast charging, PC firmware update, USB WiFi
XT30 VCC: Power input
1/4” Screw Hole: Tripod connector

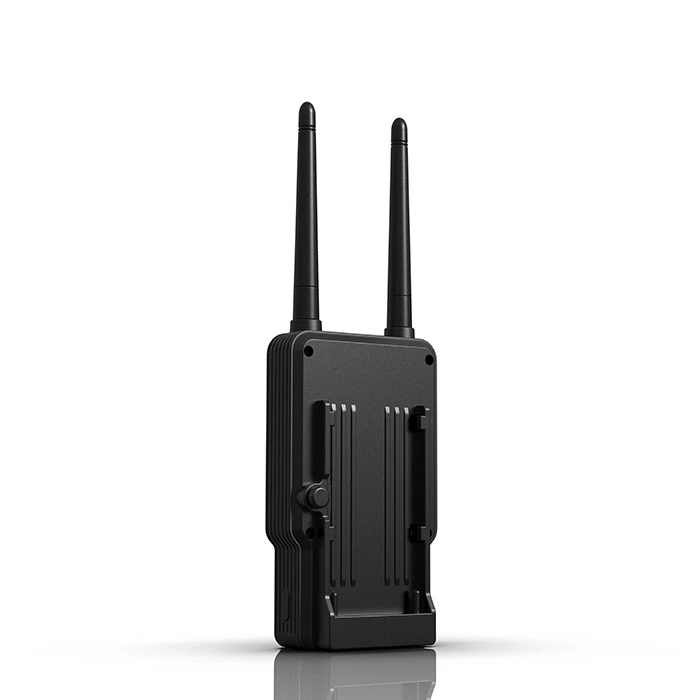

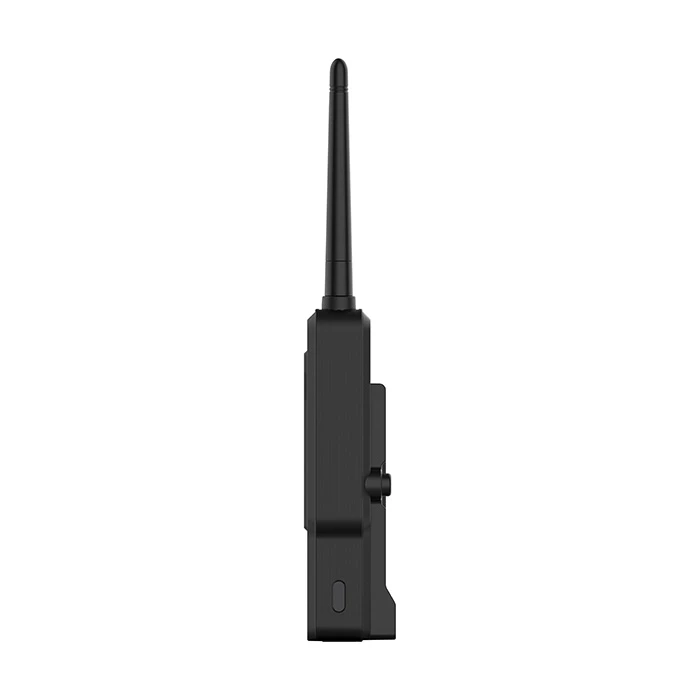

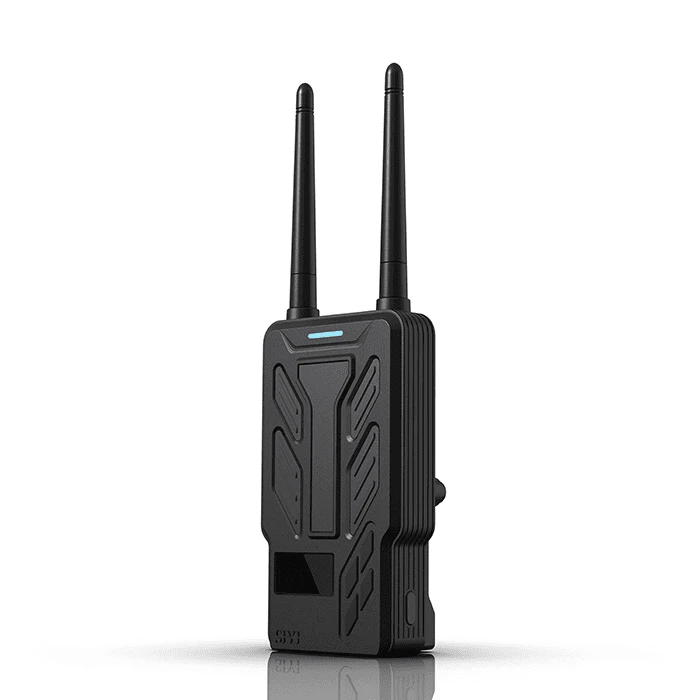

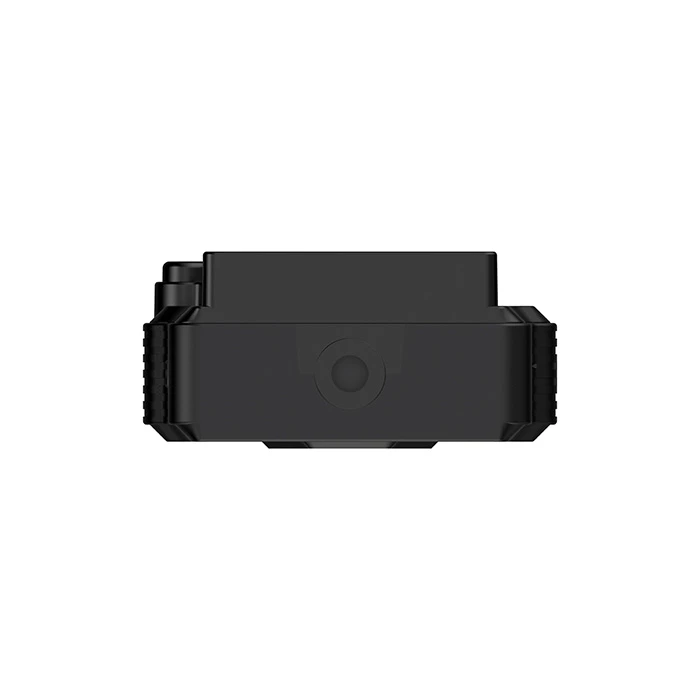

Ground Unit
Monitor: 0.96” OLED Screen
Dimension (antenna and battery excluded): 109 x 61 x 28 mm
Item Weight (antenna and battery excluded): 132 g
Working Temperature: -10 ~ 50 ℃
Supported Battery:
NP-F970 / F750 / F550 / F770 / F950 quick-release battery
*HM30 Fly More Combo comes with NP-F750 battery
Charging: PD 30 W fast charging
Antenna Gain:
Omni Antenna: 5 dBi
Long Range Antenna: 11 dBi
Power Consumption: 5 W
Waterproof Level: IP53
Air Unit
Signal Output: 16 CH S.Bus, 5 CH PWM
Functional Interface:
S.Bus: Remote control signal output
UART: Datalink output to FC
PWM: PWM signal output (CH 1 to 5)
Ethernet: Video stream input
Type-C: Firmware update
Dimension (antenna excluded, fan included): 70 x 55 x 24 mm
Item Weight (antenna excluded, fan included): 74 g
Antenna Gain: 5 dBi
Working Voltage:
11 ~ 16.8 V
*Expandable to 14 ~ 58.8 V with BEC.
Working Temperature: -10 to 50 ℃
FPV Camera
Camera Angle: FOV 120°
Max Resolution: 1080 p @ 30 fps
Dimension: 42 x 42 x 25 mm
Item Weight: 23 g
Working Temperature: -10 ~ 50 ℃
