SIYI MK15 HD Handheld Enterprise Standard Combo Smart Controller With 5.5 Inch LCD Touchscreen + SIYI A8 Mini Gimbal Camera
Original price was: $327.00.$97.99Current price is: $97.99.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION

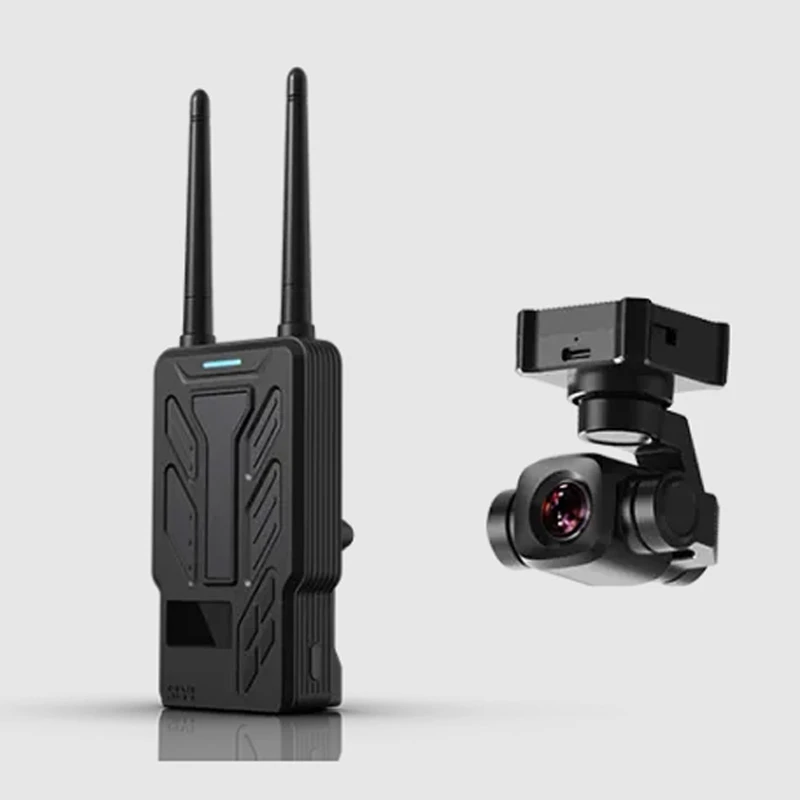

1 x A8 mini Gimbal Camera
1 x MK15 Enterprise Standard Combo(Dual Version)

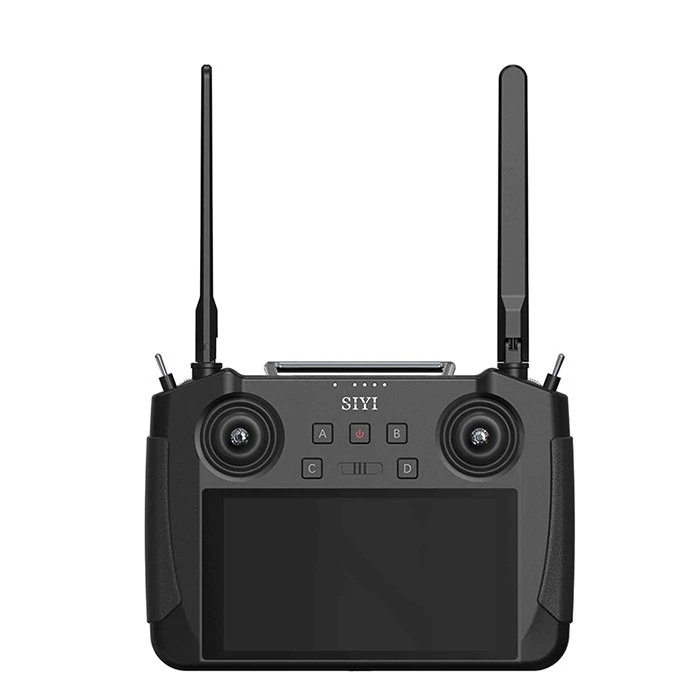

SIYI just release one mini handheld remote controller with 15KM long range 1080P digital image transmission with 5’5″ HD high brightness screen. There are 5 versions, suitable for both agriculture drones and other industrial applications drone or normal UAV multi-rotor drones.
15KM Long Range Test
Main Features:
–15 KM 1080p Digital Image Transmission, 1080P@60fps Video
— Android 9.0 OS for UAV
— 8-Core CPU, 2G RAM, 16G ROM
— IP53 Waterproof/Dustproof
— 5.8G ISM Band
— 5.5″ 1000 cd/m2 High Brightness HD screen
— Radio and Datalink
— IP67 Camera and LED
— 24000mah Built-in Battery-15H long working life-3H fast charging
— Support Dual FPV for Front & Back camera
— 180ms Low Latency
— Support dual RTK Mapping Module
NOTE:
1. Please write the flight controller you use in the comment bar, we will send the radio with compaitble video transmission cables.
2. Due to the built-in battery in it, the shipping time is longer than usual.
SIYI MK15 User Manual

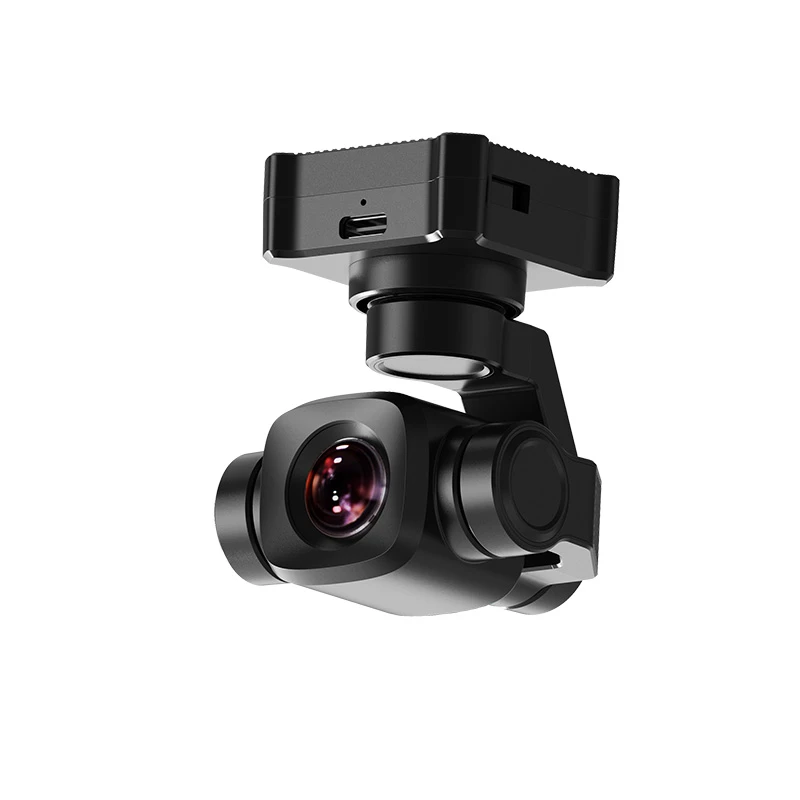

SIYI A8 Mini 4K 6X Digital zoom camera with 3 axis gimbal is great for fpv drones, industrial UAV drones, UGV, USV, Robotics and other applications. With 1/1.7-inch Sony image sensor, it can provide impressive 4K video recording, and smooth 6X digital zooming, it can also keep the image bright even in low light enviroment. What’s more, the SIYI A8 mini gimbal camera can support upside down mode too, which can be widely used on vehicles.
Specifications:
Item Brand: SIYI
Model: A8 mini
Video Output Port: Ethernet, HDMI, CVBS (AV)
Control Signal Input Port: S.Bus / UART / UDP
Control Signal Output Port: S.Bus
Working Voltage: 11 ~ 25.2 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: Approx. 95 g
Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Controllable Roll Angle: -30° ~ +30°
Camera
Lens: 6X Digital
Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV: 93°
TF Recording Resolution:
4K (4096 x 2160) @ 25 fps
2K (2560 x 1440) @ 30 fps
1080p (1920 x 1080) @ 30 fps
720p (1280 x 720) @ 30 fps
Supported File System: FAT32 (exFAT will be supported later by firmware update)
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 128 GB
White Balance: Auto
