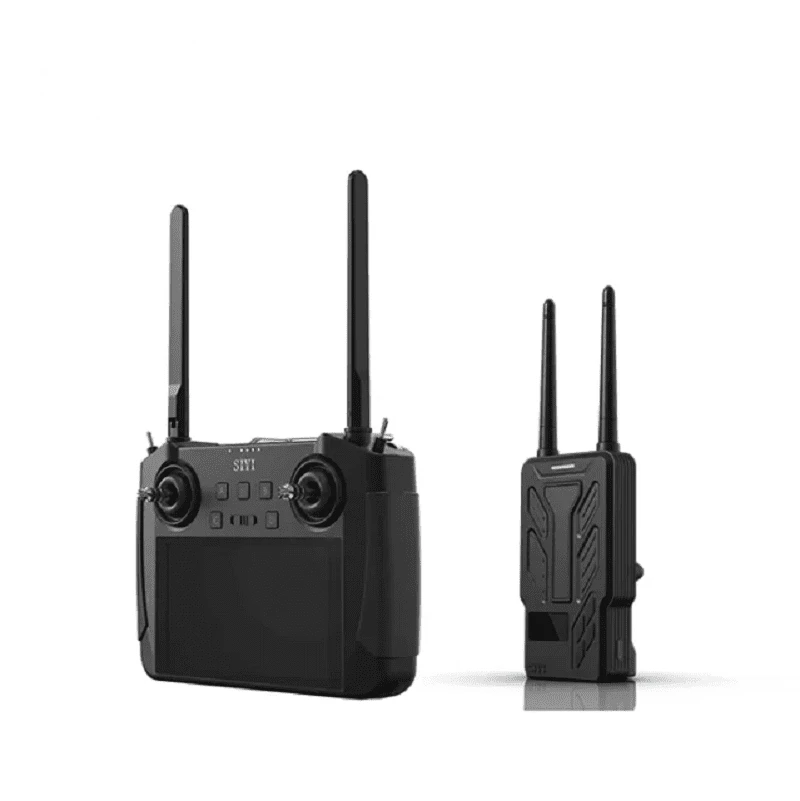

SIYI MK15 HM30 DUAL Mini Handheld Smart Controller Full HD Digital Image Transmission System
Original price was: $359.00.$97.99Current price is: $97.99.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION
1 x MK15 Remote Controller(Dual Version)
1 x HM30 Ground Unit
1 x HM30 Air Unit
1 x R1M Recording Camera
1 x HM30 Quick Release Battery

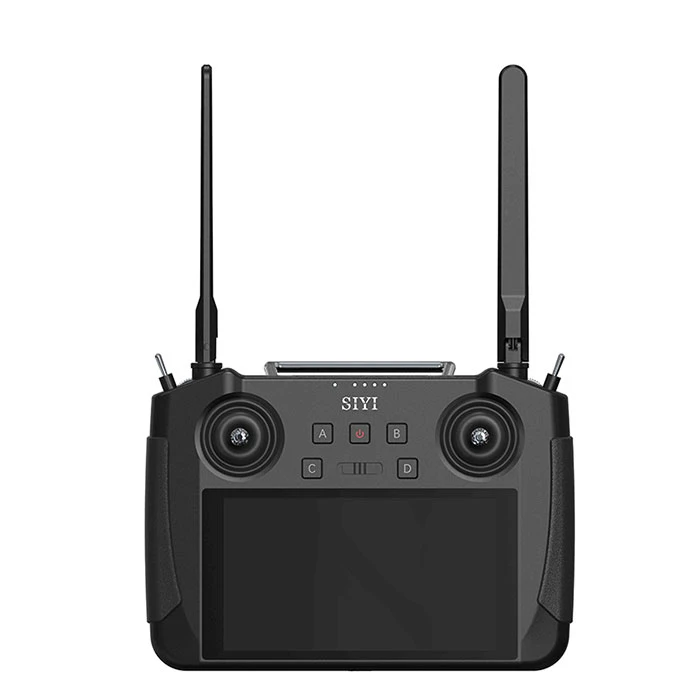

SIYI just release one mini handheld remote controller with 15KM long range 1080P digital image transmission with 5’5″ HD high brightness screen. There are 5 versions, suitable for both agriculture drones and other industrial applications drone or normal UAV multi-rotor drones.
15KM Long Range Test
Main Features:
–15 KM 1080p Digital Image Transmission, 1080P@60fps Video
— Android 9.0 OS for UAV
— 8-Core CPU, 2G RAM, 16G ROM
— IP53 Waterproof/Dustproof
— 5.8G ISM Band
— 5.5″ 1000 cd/m2 High Brightness HD screen
— Radio and Datalink
— IP67 Camera and LED
— 24000mah Built-in Battery-15H long working life-3H fast charging
— Support Dual FPV for Front & Back camera
— 180ms Low Latency
— Support dual RTK Mapping Module
NOTE:
1. Please write the flight controller you use in the comment bar, we will send the radio with compaitble video transmission cables.
2. Due to the built-in battery in it, the shipping time is longer than usual.
SIYI MK15 User Manual
SIYI HM30 User Manual
SIYI HM30 is a 1080P full HD videolink based on the latest image transmission technology developed by Siyi at 150ms low latency, the range can reach to 30KM. It is suitable for FPV drones, Airplanes, industrial application drones, UAV drones, boats, robotics and etc.
Range Test Video:
Main Features:
–Full HD Digital Image transmission
–Up to 30KM long range
–150ms low latency
–1080P@60fps H.264/H.265 Decoding
–OLED touchscreen
–FPV OSD
–Support PIX and QGC
–Android & IOS Device compatible
Max FPV Range: 30 KM
Datalink Stream supported FC (Mavlink): Pixhawk, APM, SN+, SN-NAVI, MATEK H743/F405, or any other flight controllers with UART output
Video Stream supported GCS (RTSP): QGroundControl, SIYI FPV
Functional Interface:
RC: Remote control signal input
UART: Datalink output
LAN: Ethernet port
VCC: Power output
Type-C: USB video stream output, PD fast charging, PC firmware update, USB WiFi
XT30 VCC: Power input
1/4” Screw Hole: Tripod connector
Ground Unit
Monitor: 0.96” OLED Screen
Dimension (antenna and battery excluded): 109 x 61 x 28 mm
Item Weight (antenna and battery excluded): 132 g
Working Temperature: -10 ~ 50 ℃
Supported Battery:
NP-F970 / F750 / F550 / F770 / F950 quick-release battery
*HM30 Fly More Combo comes with NP-F750 battery
Charging: PD 30 W fast charging
Antenna Gain:
Omni Antenna: 5 dBi
Long Range Antenna: 11 dBi
Power Consumption: 5 W
Waterproof Level: IP53
Air Unit
Signal Output: 16 CH S.Bus, 5 CH PWM
Functional Interface:
S.Bus: Remote control signal output
UART: Datalink output to FC
PWM: PWM signal output (CH 1 to 5)
Ethernet: Video stream input
Type-C: Firmware update
Dimension (antenna excluded, fan included): 70 x 55 x 24 mm
Item Weight (antenna excluded, fan included): 74 g
Antenna Gain: 5 dBi
Working Voltage:
11 ~ 16.8 V
*Expandable to 14 ~ 58.8 V with BEC.
Working Temperature: -10 to 50 ℃
FPV Camera
Camera Angle: FOV 120°
Max Resolution: 1080 p @ 30 fps
Dimension: 42 x 42 x 25 mm
Item Weight: 23 g
Working Temperature: -10 ~ 50 ℃
