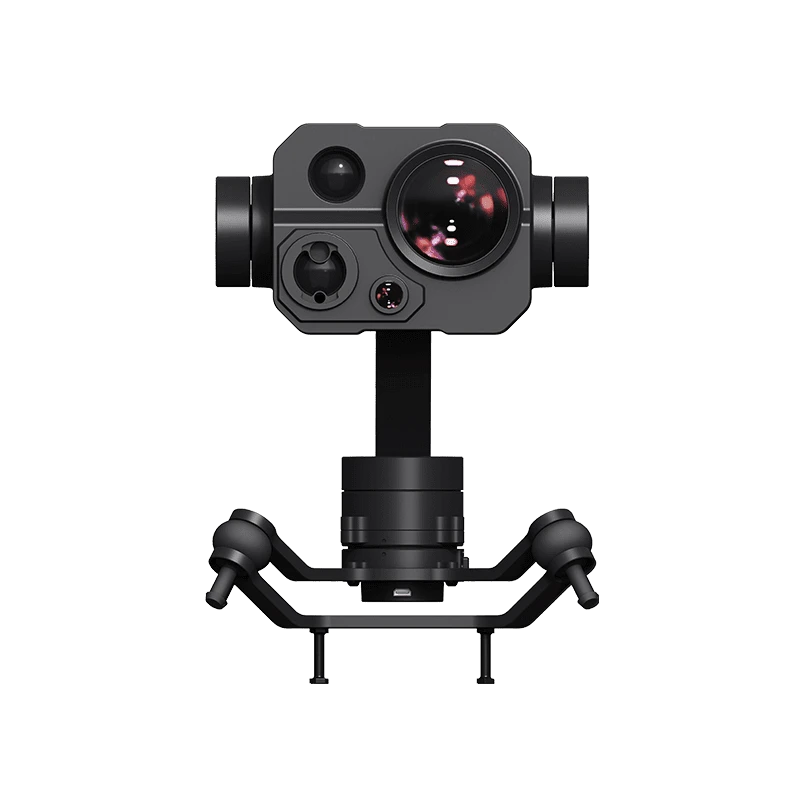

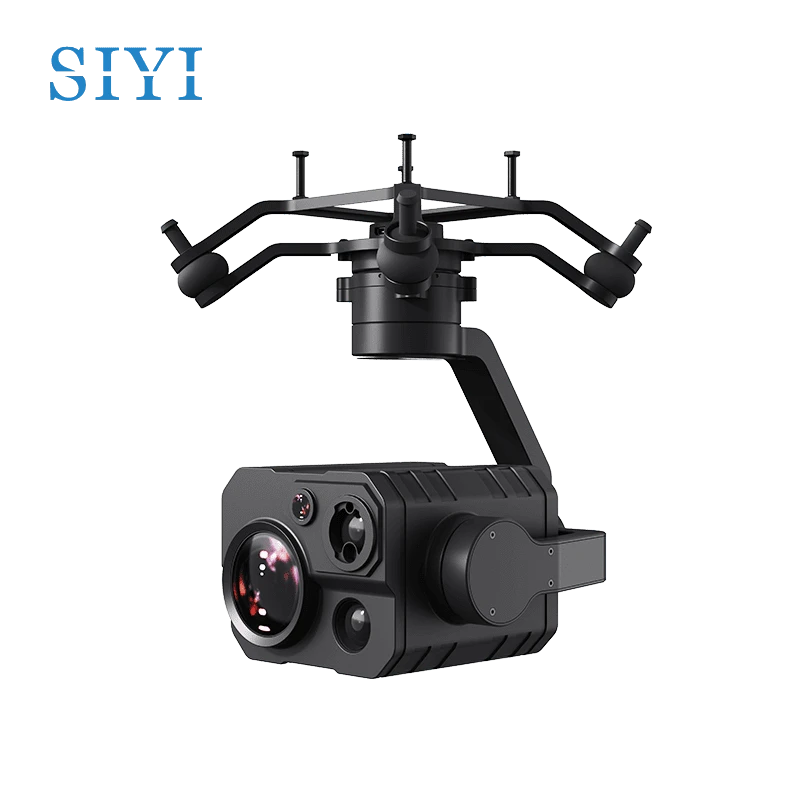

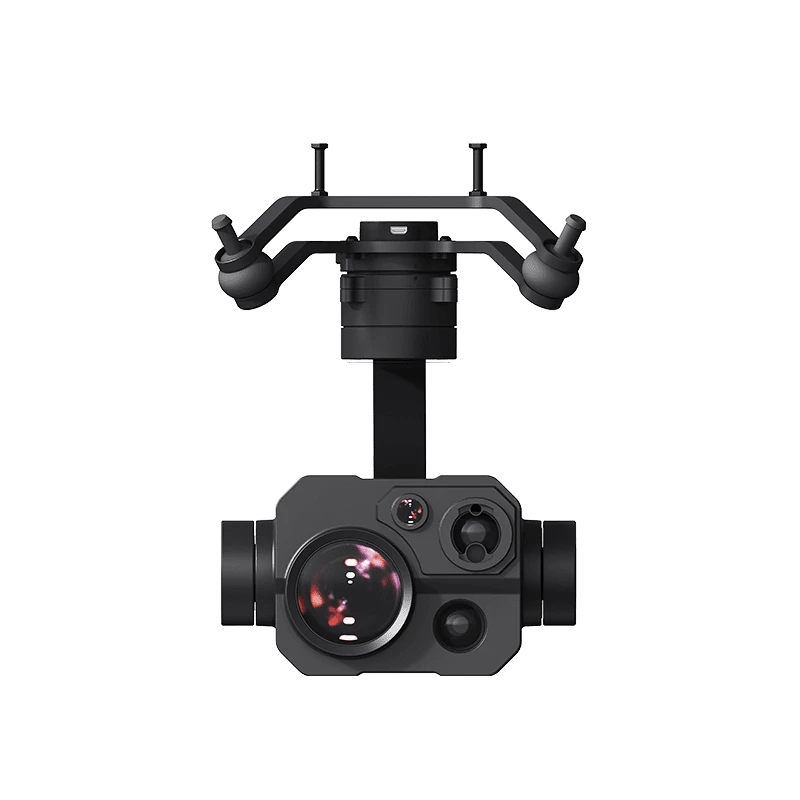

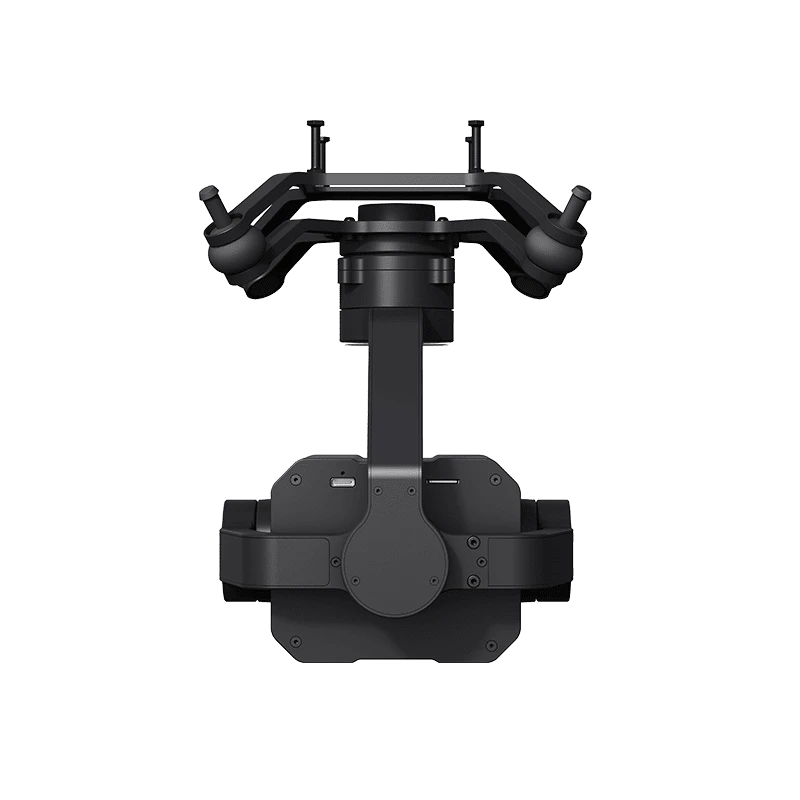

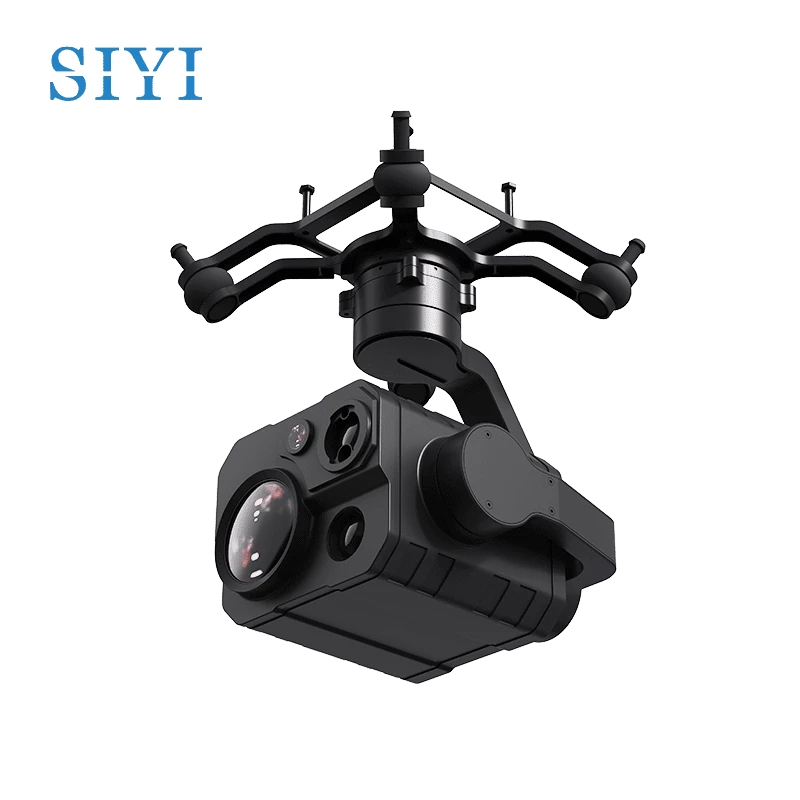

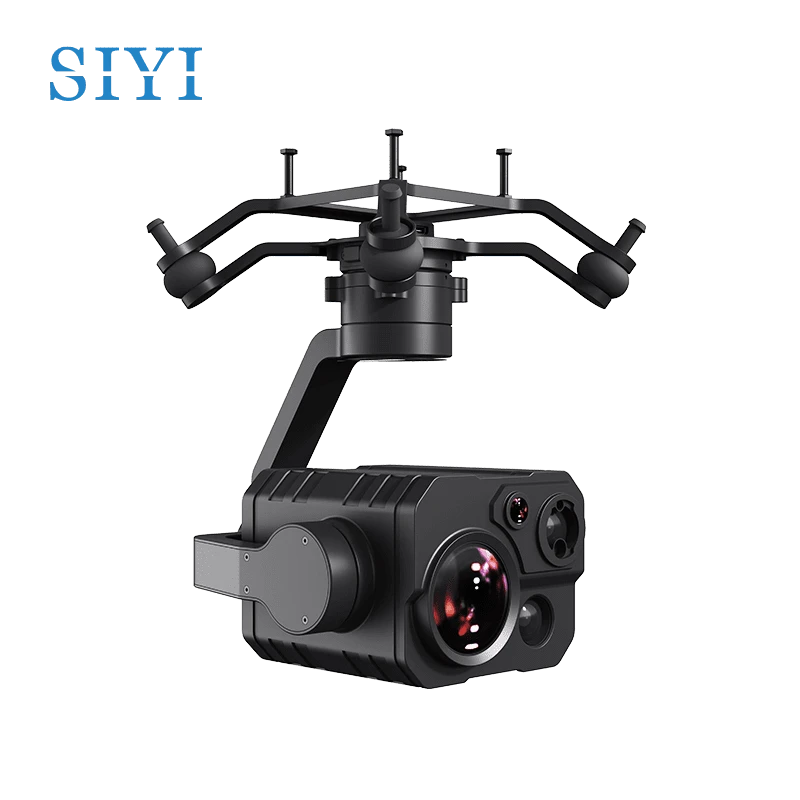

SIYI ZT30 4K 8MP 180X Hybrid 30X Optical Zoom Gimbal Camera Four Sensors Optical Pod 640 X 512 Thermal Imaging With AI Smart Tracking

SIYI ZT30 is 3 Axis gimbla with 4K 180X Hybrid 30X Optical Zoom camera, with 40 x 512 Thermal Imaging  (Temperature Measuring), 2K Ultra-Wide Angle, 1200-Meter Range Laser Rangefinder and AI Smart Identify and Tracking. It has follow mode, lock mode and FPV mode. And if it is placed upside down, it will activates the upside down mode automatically. It is great for UAV drones for survillance inspection, searching, monitoring and other applications.

Specifications:
Item Brand: Siyi
Model: ZT30
Video Output Port: Ethernet
Control Signal Input Port:
– S.Bus, UART
– UDP (Ethernet)
High-Accuracy 3-Axis Stabilization: Yaw, Pitch, Roll
Working Voltage: 11 to 25.2 V
Power Consumption: Average 9 W, Summit 20 W
Waterproof Level: IP4X
Working Temperature: -10 ~ 50 ℃
Dimension: 182*140*134.5 mm (including the quick release anti-vibration claw)
Weight: 870 g (including the quick release anti-vibration claw)

ZT30 Quick Release Anti-Vibration Claw
Dimension: 141*140*42.5 mm
Weight: 104 g

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: Limitless
Roll Angle: -45° to +45°

Zoom Camera
Lens: 30X Optical Zoom (180X Hybrid Zoom)
Focal Length: 4.8% to 149 mm (±5%)
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
Aperture: F1.3 to F4.8 (±5%)
FOV: Horizontal 62°
Video Recording Resolution:
– 4K (4096 x 2160) @ 30 fps
– 2K (2560 x 1440) @ 30 fps
– 1080p (1920 x 1080) @ 30 fps
– 720p (1280 x 720) @ 30 fps
Still Photo Resolution: 4K (4096 x 2160)

Thermal Imaging Camera
Resolution: 640 x 512
Digital Zoom: 2X
Lens
– Focal Length: 19 mm
– Aperture: F1.1
– Fixed Focus
– Athermalization
Wavelength Range: 8 ~ 14 um
Temperature Measuring Range
– High Gain: -20 ~ +150℃
– Low Gain: 0 ~ +550℃
Temperature Measuring Accuracy
– ±2℃ (-20 ~ +150℃)
– ±3℃ (0 ~ +550℃)
Temperature Measuring Mode
– Point to Measurement
– Full Screen Measurement

Wide Angle Camera
Image Sensor: 1/2.8 Inch, 4 MP effective resoultion
Equivalent Focal Length: 21 mm
FOV: Horizontal 88°
Video Recording Resolution: 2K (2560 x 1440) @ 30 fps
Still Photo Resolution: 2K (2560 x 1440)

Range Finder
Range: 5 ~ 1200 m
Wavelength Range: 900 ~ 908 nm
Resolution: 0.1 m
Ranging Accuracy:
– ±1 m (3 ~ 100 m)
– ±1 + L*0.25% m, L=Length (100 ~ 600 m)
Laser Pulse Frequency: 3 Hz
Max Laser Power: 5 mW

General Camera Specs
Video Storage Bitrate: 15 Mbps (H.265 codec)
File Storage Format: FAT32
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
