PRODUCT DESCRIPTION

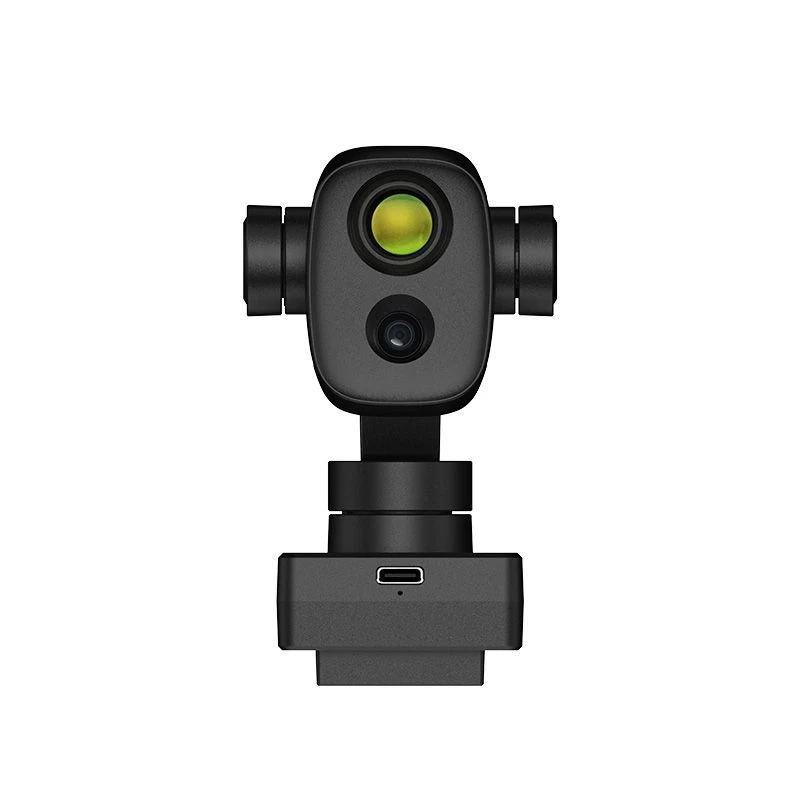

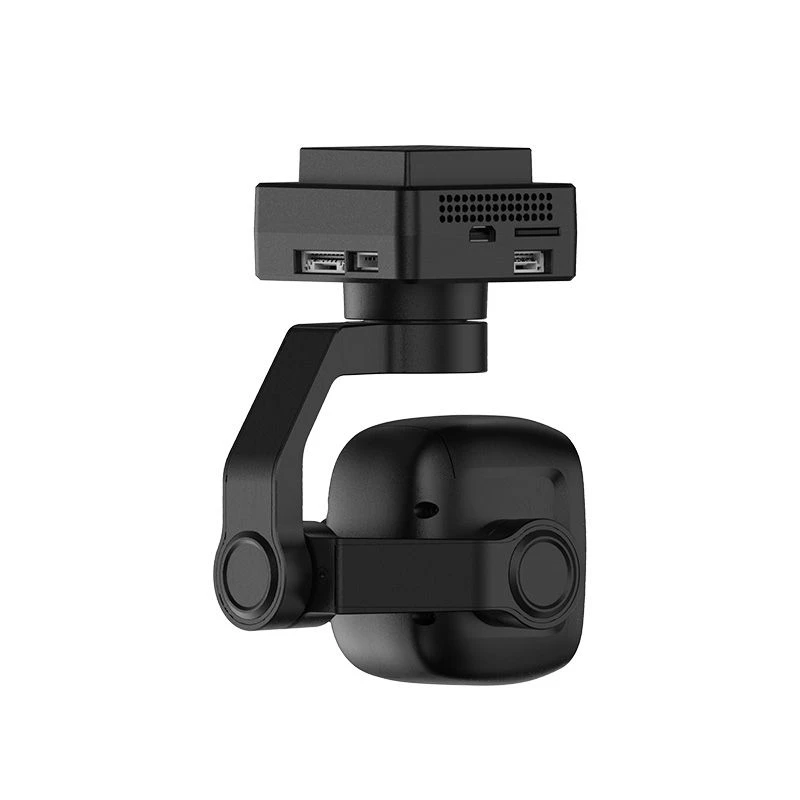

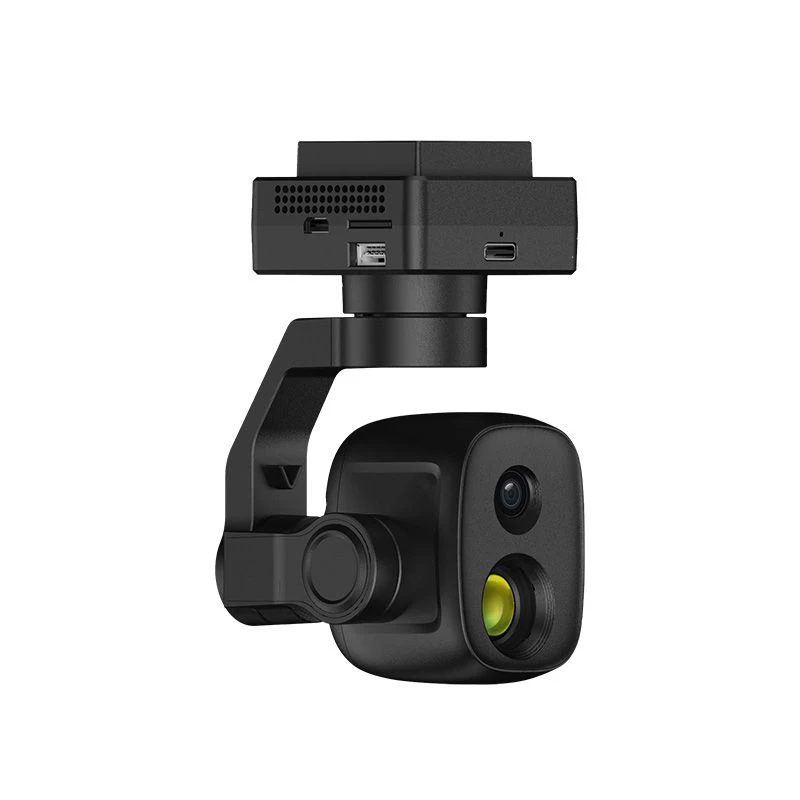

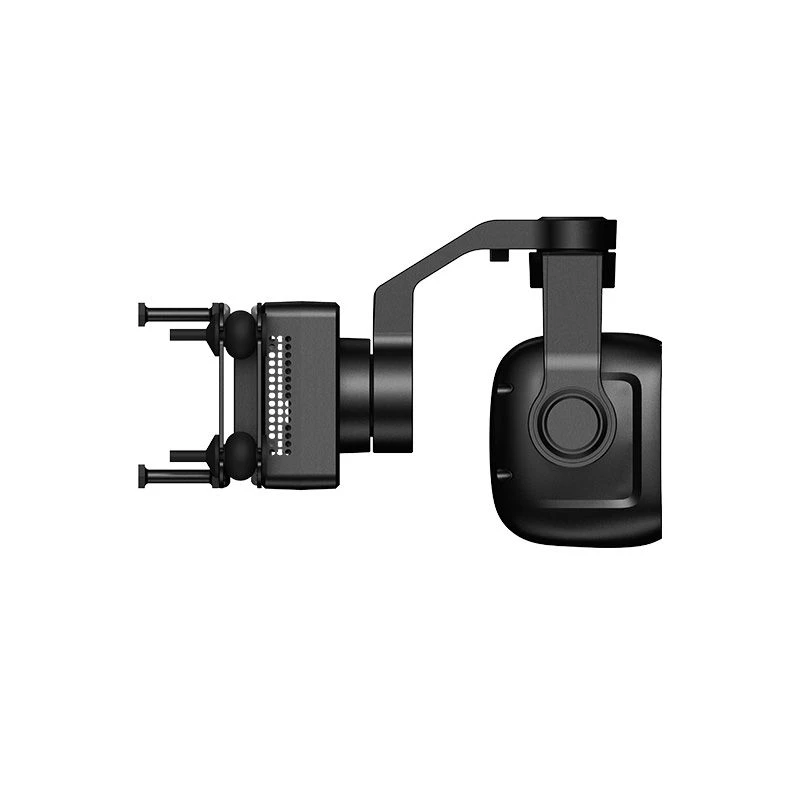

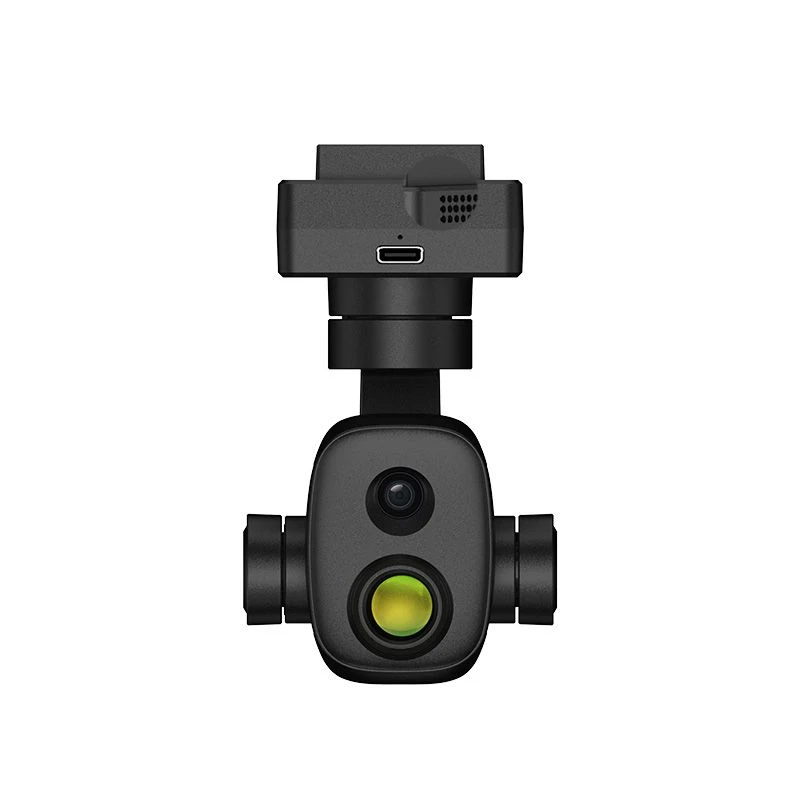

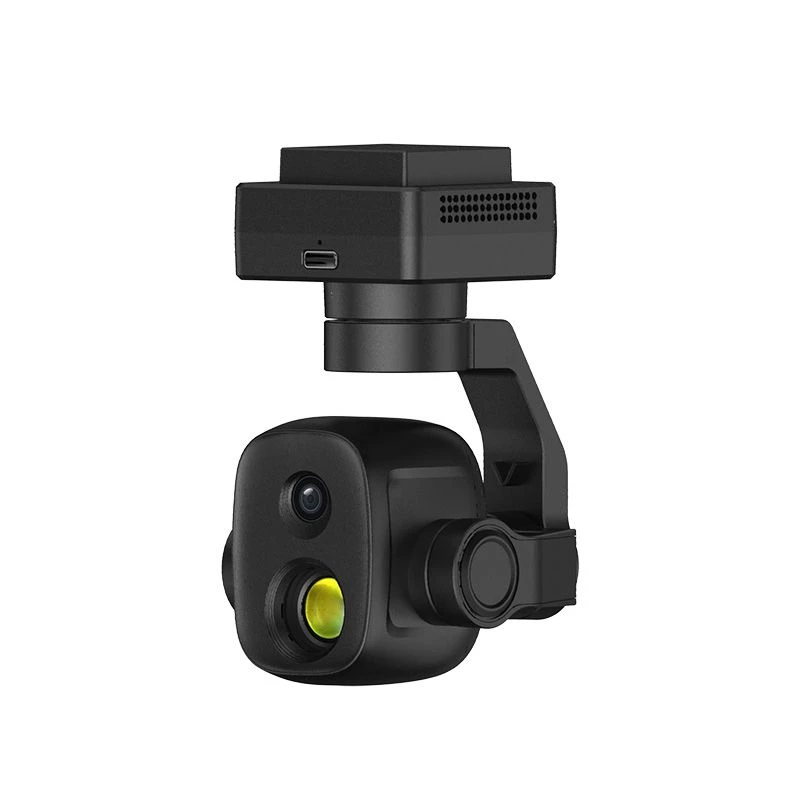

sensor and a thermal imaging sensor. Dual sensors collaborateefficiently to detect heat sources and measure temperature, to capture clear picture and provide a broad view. The Yaw axis of the ZT6 mini optical pod rotates in a range of 540 degrees, providing 360-degree vision around. The ZT6 has 3 working modes: follow mode, lock mode and fpv mode. It is also acutivate upside down mode when it placed upside down. ZT6 mini gimbal camera with thermal imaging is great for security inspection, enviromental monitoring, logistics and transportation and many other industrial applications.
| Video Output Port | Ethernet / CVBS Micro-HDMI |
| Control Signal Input Port | S.Bus UART Ethernet UDP / TCP |
| Control Signal Output Port | S.Bus |
| High Accuracy 3 Axis Stabilization | Yaw Pitch Roll |
| Working Voltage | 11 ~ 25.2 V |
| Power Consumption | Average 6.5 W Summit 15 W |
| Waterproof Level | IP53 |
| Working Temperature | -10 ~ 50 ℃ |
| Dimension | 73.5 x 75 x 131.5 mm |
| Weight | Excluding Anti-Vibration Board: 177 g Excluding Anti-Vibration Board: 197 g |
| Angular Vibration Range |
±0.01° |
| Controllable Pitch Angle |
-90° ~ +25° |
| Controllable Yaw Angle |
-270° ~ +270° |
| Rotatable Roll Angle |
-45° ~ +45° |
| Lens |
Fixed Focal Length 6x Digital Zoom |
| Equivalent Focal Length |
20 mm |
| Image Sensor |
Sony 1/2.7 Inch CMOS 8 MP Effective Resolution |
| Aperture |
F2.8 |
| FOV |
Diagonal 93° Horizontal 84.5° |
| Video Recording Resolution |
4K (3840 x 2160) @ 30 fps 2K (2560 x 1440) @ 30 fps 1080p (1920 x 1080) @ 30 fps 720p (1280 x 720) @ 30 fps |
| Still Photo Resolution |
4K (3840 x 2160) |
| Thermal Sensor |
Uncooled VOx Microbolometer |
| Resolution |
640 x 512 |
| Zoom |
2X Digital |
| Lens |
Focal Length: 13 mm Aperture: F1.0 Fixed Focus Athermalization |
| Wavelength Range |
8 ~ 14 um |
| Temperature Measuring Range |
High Gain: -20 ~ +150℃ Low Gain: 50 ~ +550℃ |
| Temperature Measuring Accuracy |
±2℃ (-20 ~ +150℃) ±5℃ (50 ~ +550℃) |
| Temperature Measuring Mode |
Point Anywhere Measurement Full Image Measurement Selected Box Measurement |
| Video Storage Bitrate |
15 Mbps (H.265 Codec) |
| File Storage Format |
FAT32 ExFAT |
| Image Format |
JPG |
| Video Format |
MP4 |
| Supported MicroSD Cards |
MicroSD Class10, Max 256 GB |
| Still Photography Mode |
Single |
| White Balance |
Auto |
