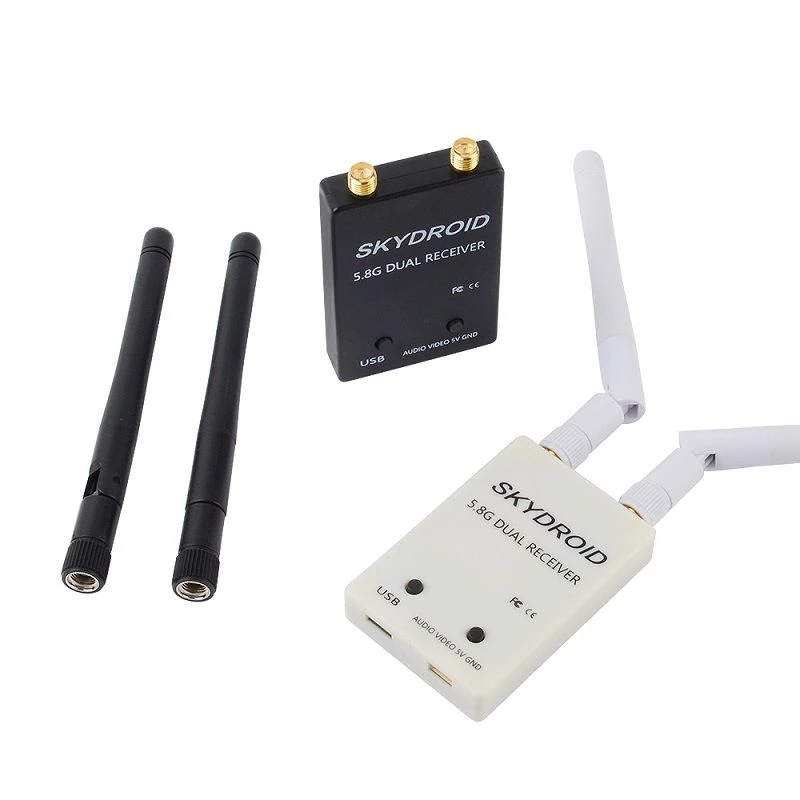

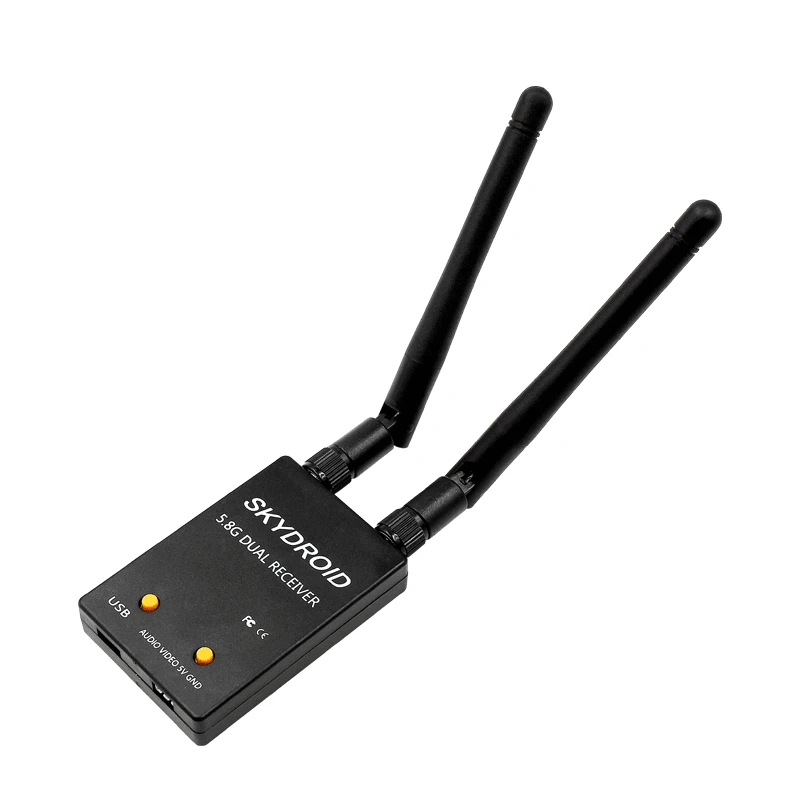

Skydroid 5.8GHz 150CH OTG Dual Antenna FPV Receiver

Before use:
To ensure the best performance, please calibrate the highest and lowest signal before use.
For calibration, please take it outside the open space and pull the transmitter away for more than 30 meters to calibrate. Press and hold the function button to power the receiver into calibration mode.

Use it with phone:
1.Android phone installation APP Download address
Click on the link below to download the Android phone app http://www.fuav.xin/download/skydroidfpv.apk
2. Connect directly to the receiver with OTG cable (no external power supply required)
3. After the airborne image transmission device is powered on, press and hold the function key for 3 seconds on the image transmission to automatically search for the frequency point and automatically lock the signal strongest frequency point.

Use it with PC:
1. Connect the PC with a USB cable
2. (XP) Open the camera software, (WIN7) to install the AMCP camera software, (WIN10) to turn on the camera. Or MP ground station.
3. After the airborne picture transmission device is powered on, press and hold the function button for 3 seconds on the picture to automatically search for the frequency point and automatically lock the signal with the strongest frequency point.

Compatible Mobile Phone request:
1：Android phone
2：Support OTG function
3：Qualcomm series CPU or Kirin 950 CPU and higher or MTK X20 CPU and higher

Specification:
Frequency : 5645MHz~5945MHz
Channel: 150CH
Resolution : 640*480 30fps
Working Current : USB 5V 190mA
Connector : RP-SMA
Antenna Impedance: 50Ω
Antenna Gain: 5db
Working Temp. : -10~65℃
Please calibrate it before use
Usage: Support Win7, Win10, and Smart Phones such as Android
Weight: 29g
Please calibrate it in open area, 30m away from transmitter. Power on the device while holding the menu button to enter into calibration mode.

Package include:
1 x SKYDROID FPV Receiver
2 x Antenna
1 x Micro USB Cable
1 x Type-C Cable
