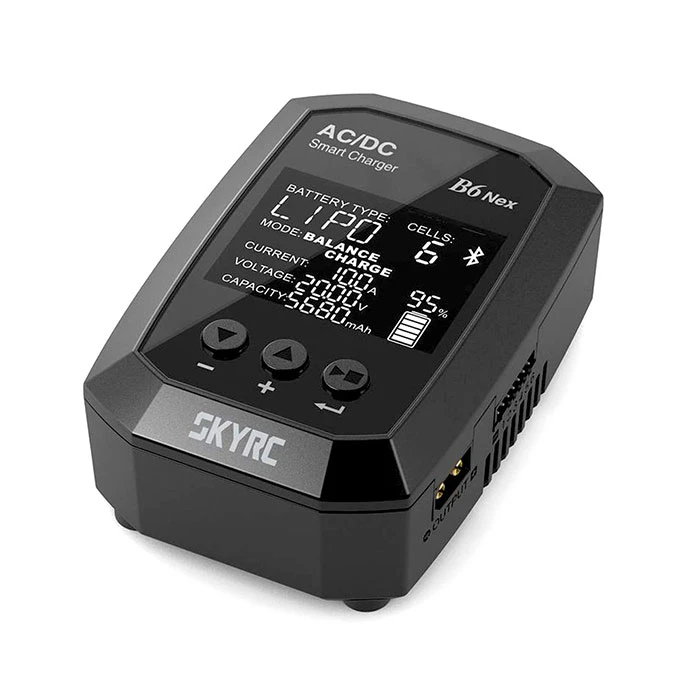

SKYRC B6 Nex AC/DC Charger 10A 200W 1-6S Battery Charger With Bluetooth

The SkyRC B6 Nex, is a high-performance battery charger designed for hobbyists. With the dual power AC/DC input, B6 Nex can charge the 1-6 cell Li-ion or LiPo batteries at a maximum charge current of 10A. The built-in Bluetooth 5.0 enables B6 Nex’s connectivity with smartphones. The app can push notifications reminding users that charge or discharge is completed or there is a firmware upgrade. With B6 Nex, charging becomes a faster and more convenient experience!

Small in size, Big on power
Thanks to the lightweight structure and optimized firmware, B6 Nex can fit into your pocket. The maximum power of B6 Nex can reach up to 200W.

Stunning VA display: everything at a glance
Menu navigation is made easy with the three-button control interface.
With the stunning backlit 2.4-inch VA screen, large viewing angle, high WBC, rapid response, all information is clear at a glance.

On the cutting edge with GaN Power
By replacing silicon with gallium nitride, we’ve been able to implement our proprietary charging algorithm and optimal thermal dissipation technique to shrink its size, minimize the temperature rise, delivers more power, further than ever before! Charging is a breeze!

What is GaN?
Gallium nitride (GaN) is a very hard, mechanically stable wide bandgap semiconductor. GaN is used in the production of semiconductor power devices as well as RF components and light-emitting diodes (LEDs). GaN has demonstrated the capability to be the displacement technology for silicon semiconductors in power conversion, RF, and analog applications.
The rise of GaN
The leading candidate for taking electronic performance to reactivation of positive momentum of Moore’s Law is gallium nitride. GaN’s ability to conduct electrons more than 1000 times more efficiently than silicon, while being able to be manufactured at a lower cost than silicon has now been well established. Silicon is out of gas, and new, higher-performing semiconductor material is emerging – GaN is on the rise.
Advantages of GaN chargers
small size, easy to carry, high-wattage porous output, and high wattage output.
The con of GaN is it is expensive
it requires synthetic materials, which are much more difficult to manufacture than traditional silicon.

Accurate Current Sensing&High Efficiency

AC/DC Dual Power Input
B6 Nex comes with both AC and DC power input, which can meet you on power supply in different circumstances.

Multi-purpose for Most Battery Chemistries
The juice box comes with the charging algorithm for the most common battery chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead acid).

Adjustable Cut-off Voltage
You can set charging cut-off voltage according to your needs. Furthermore, B6 Nex can memorize the last setting parameters (for professional players only).

Smart & Efficient Cooling
Temperature-controlled 12000rpm high-speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, cooling the unit down.

Bluetooth 5.0
A new generation of Bluetooth technology. Faster and more stable connection.
B6 NEX has a built-in Bluetooth 5.0 chip which data transmission rate is 2 times higher than that of Bluetooth 4.0, and the connection is faster and more stable.

Prompt push notifications
When charging or discharging is completed, the app automatically pushes to remind the user that the process is completed. The user will get a push notification whenever there is a software upgrade.

Scan to go Charge on the go
A unique feature of the B6 Nex is SCAN TO GO (automatically charging system): with the SkyCharger app, a unique QR code sticker can be printed and pasted on the battery. Since all the essential information is stored in the QR code, all you need to do is to scan the QR code, and the charge or discharge process will start automatically.


Specifications:

Size and Weight	Case Material: Plastic Case Size: 112x75x38mm Weight: 237.7g
Display	Type: VA LCD
Buttons And Port	External Port: 2-6S Balance Socket-XH,Battery Socket, DC Input, AC Input Buttons: Increase Button, Decrease Button, Start/Stop Button
Power	DC Input : 10-30V Charge: 200W Discharge: 10W AC Input: 100-240V(50-60HZ) Charge: 50W Discharge: 10W
Battery	BatteryTypes/Cells: LiPo/LiIon/LiFe/LiHV: 1-6cells NiMH/NiCd: 1-15cells Pb: 1-10S(2-20V) Battery Capacity Range: NiMH/NiCd: 100-50000mAh LiPo/LiIon/LiFe/LiHV: 100-50000mAh Pb: 100-50000mAh
Charge and Discharge	Charge Voltage NiMH/NiCd: Delta peak detection LiPo: 4.18-4.25V/cell LiFe: 3.58-3.7V/cell Pb: 2.4V/cell LiIon: 4.08-4.2V/cell LiHV: 4.25-4.35V/cell AGM/COLD: 2.45V/cell Discharge Cut-off Voltage NiMH/NiCd:0.1-1.1V/cell LiPo: 3.0-3.3V/cell LiFe: 2.6-2.9V/cell Pb: 1.8V/cell LiIon: 2.9-3.2V/cell LiHV: 3.1-3.4V/cell Charge Current: 0.1A-10.0A Discharge Current: 0.1A-2.0A Balance Cells: 1-6 cells Balance Current: 1000mA/cell Max Safety Timer: 1-720minutes off Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
Free App	Smart Phone Control (both iOS and Android) The free SkyCharger App unleashes tons of features and advanced settings, which tremendously expands the user experience of B6 Nex.
Language	Simplified Chinese,Traditional Chinese,English,Japanese,Spanish,Swedish, Polish,French,Czech,Italian,German,Bokmal Norwegian
Working and Storage	Operating temperature: 0℃-40℃ Working humidity: 0%-75% Storage temperature: -10℃-70℃ Storage humidity: 0%-75%
