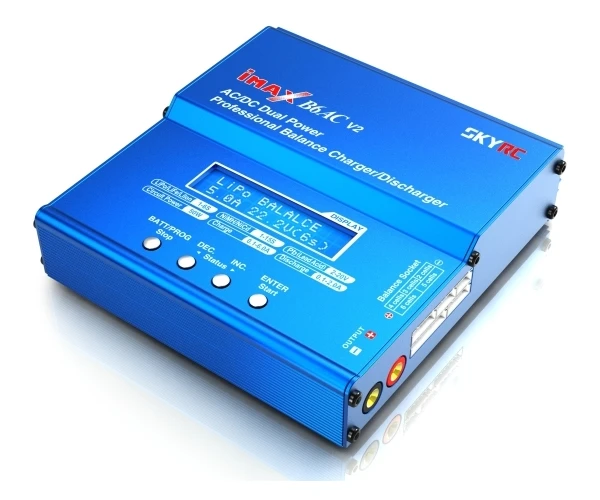

SKYRC IMAX B6AC V2 Professional Balance Charger/Discharger

SKYRC IMAX B6AC V2 is the upgraded version for well-known IMAX B6AC. Compared with B6AC V2, it is more accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What’s more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safer than V1.
SKYRC B6AC V2 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.

Specifications:
AC Input Voltage: 100-240V
DC Input Voltage: 11-18V
Circuit Power: Max Charge: 50W /Max Dischage: 5W
Charge Current Range: 0.1-6.0A
Discharge Current Range: 0.1-2.0A
LiPo/LiFe/LiIon Cells： 1-6S
NiMH/NiCd Cells：1-15S
Pb(Lead Acid) battery Voltage:2-20V
Net Weight: 632g
Dimension: 135 x 144 x 36mm
