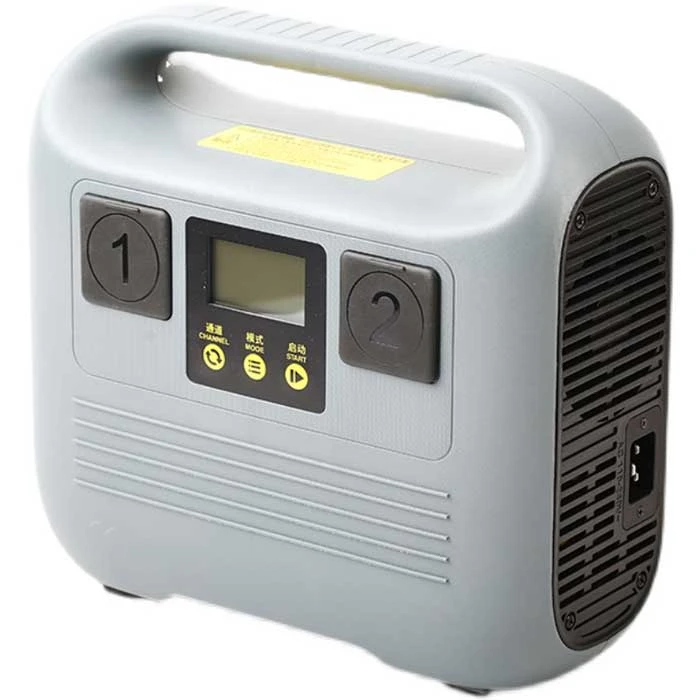

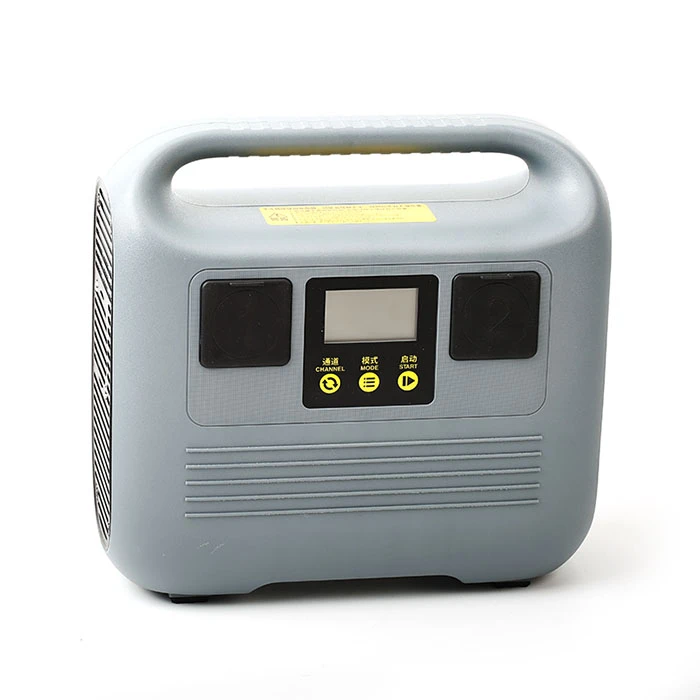

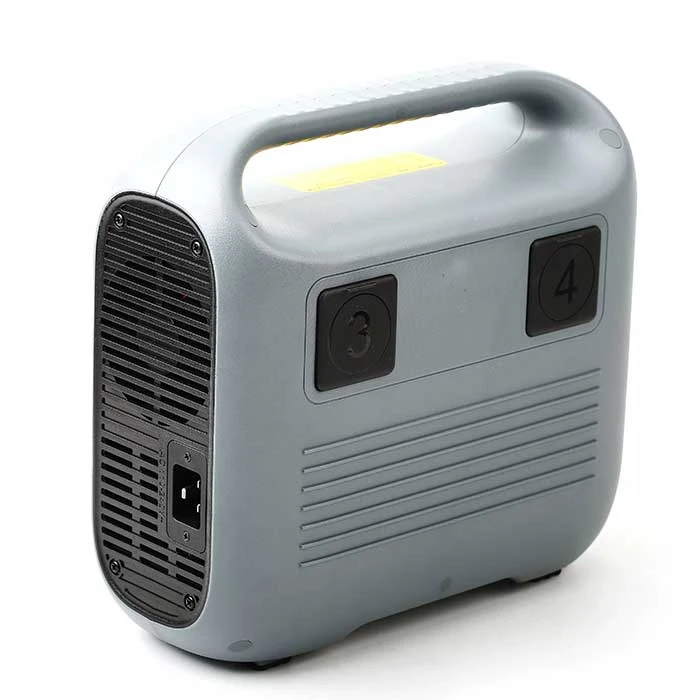

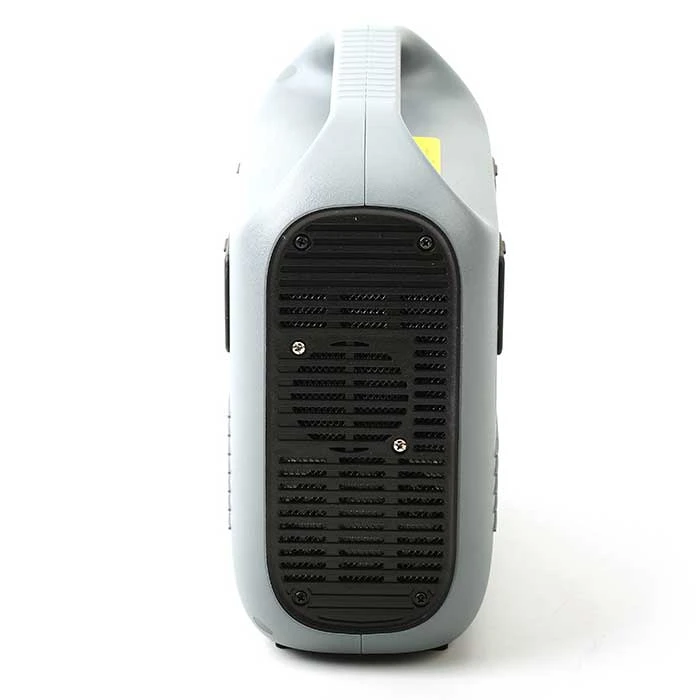

Skyrc PC2500 2500W 45A Battery Charger 4 Channel 12S 14S Smart Battery High-power Fast Charger AS150U Connector

SkyRC PC2500 battery charger can connect four batteries at the same time. The charger’s maximum output power is up to 2500W, with three modes: Fast(Fast Charge), Charge(Slow Charge), Storage. The charger can recognize the batteries with customized CAN communication instantly. Charging is convenient and straightforward with a better user experience.

Main Features:
—The Max. output can reach 2500W and the Max. Current is 45A, a 12S 16000mah battery can be fully charged in about 15 minutes;
—The LCD shows the charging process in real time, such as the charging time, battery percentage, single cell voltage and etc;
—PC2500 charger comes with built-in CAN Bus communication;
—Effectively filtering dust and sediment with a high-quality ventilator
—Short Circuit Protection;
—Reverse Polarity Protection;
—Over-temperature Protection.

Specifications:
Item brand:  SKYRC
Item Model:  PC2500

Size and Weight
Housing Material: Plastic (Flame Retardant PC+ABS)
Size: 294mmx139mmx282mm
Weight: 5.6Kg

Power Supply: AC Input: 100-240V
Charging Power:
AC220V：2500W
AC120V：1200W

Battery
Type：Lithium Battery
LiPo Battery Cells： 12S/14S
LiHV Battery Cells：12S

Charge/Discharge
AC 220V
Fast Charge Current: max. 45A single channel
Slow Charge Current: max. 20A single channel; max. 45A multi channels in total

AC 120V
Fast Charge Current: max. 1200W single channel
Slow Charge Current: max. 20A single channel; max. 1200W multi channels in total

Storage Discharge Power
Main Port: 75W Max.
Balance Port: 80W Max. (The current will be adjusted based on the balance port’s temp)

Max Charge Output Power
AC220V Output Power: 2500W
AC120V Output Power: 1200W

Discharge Power：60W
Charging Mode：Fast Charge, Slow, Storage

Working and Storage
Working Temperature: 0℃-40℃
Working Humidity: 0%-75%
Storage Temperature: -10℃-70℃
Storage Humidity: 0%-75%
