SKYZONE SKY02X 5.8G 48CH Diversity FPV Goggles With Head Tracker Support DVR HDMI Headsets

Main Specs of the goggles

SKYZONE SKY02X. 5.8G 48CH Diversity FPV Goggles With Head Tracker Support DVR HDMI Headsets is the latest version of the fpv goggle released by Skyzone.

Main Features:
Build in 5.8Ghz diversity receiver, more stable reception, and convenient to use.
Build in Head Tracker, more immerse FPV experience for fix wing pilot
With Use interface, more convenient to use.
Integrated with defogging fan, no fog during the cold weather.
Build in DVR, pilot can playback the recording video.
Spectrum Analyzer, pilot can check signal strength in the field.
Support 2S~6S battery, more convenient in the field.
HD Port Input
AV Output/Input

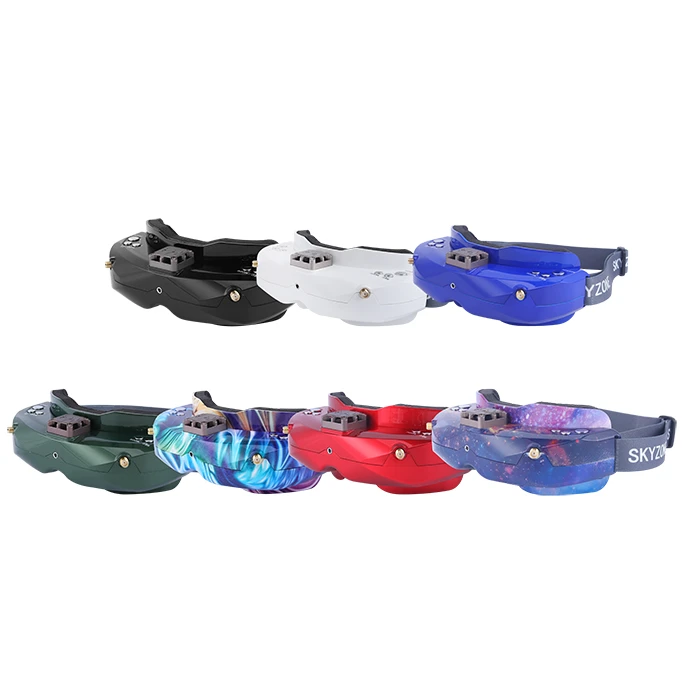

7 colors (black, white, red, blue, green, galaxy, lollipop)

RF Mode:
3D Mode, only available under the RF mode.
2D Mode

Specifications:
Brand Name: Skyzone
Item Model: SKY02X FPV Goggles
Binocular Display:
FOV: 30 degree(Diagonal)
Resolution: 854×480(WVGA) 1,229,760 color sub-pixels
Brightness: 350cd/㎡
Interpupillary Distance(IPD): 59-69MM Adjustable
Sensitivity: -90dBmą1dBm
Antenna: SMA 50ohm
Front Camera:
FOV: 60 degree(Diagonal)
Resolution:640×480(VGA)
Focal Length: f=4.0mm
F/NO:=2.8
Head Tracker:
Sensor: Magnetic,Inertial and gyro
Output: PPM 8CH, Optional 5‐6CH,5‐7CH,5‐8CH,6‐7CH,6‐8CH,7‐8CH
Micro SD: Support to 32GB
Compression:MJPEG, 30fps,AVI
Picture: JPEG
Record Rate: 6Mbps
Video Standard: NTSC/PAL
Video output level:1.0Vp‐p Typ. / 75ohm
Audio output level:1.0Vp‐p Typ. / 10Kohm
Div. AV OUT(3.5mm4P):Diversity Video, Audio output
EAR OUT(3.5mm3P):Stereo 16Ω/150mW
AV IN(3.5mm4P):Video ,Audio input
HD Port IN(Micro HD Port/C‐Type):HD Port 1.4 specification
1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50,1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i, PC Format(Not all)
DC IN: DC 7~26V/ 1A(2S~6S)
Power Consumption:12V input, 5.4W
Dimensions:168(L)X92.5(W)X41(H)MM
Operating Temperature:0 ℃~+60℃

Package Included:
1 x Skyzone SKY02X FPV Goggles
1 x Futaba Data Cable
1 x JR Data Cable
1 x WFLY Data Cable
2 x 5.8G 2dBi Antenna
1 x AV Cable
1 x Power Cable
