SKYZONE SKY03O 5.8G 48CH Diversity FPV Goggles With Head Tracker Support DVR HDMI RSSI Headsets

Main Specs of the goggles





SKYZONE SKY03O. 5.8G 48CH Diversity FPV Goggles With Head Tracker Support DVR HDMI Headsets is the latest version of the fpv goggle released by Skyzone and add RSSI function.

Main Features:
Build in 5.8Ghz diversity receiver, more stable reception, and convenient to use.
Build in Head Tracker, more immerse FPV experience for fix wing pilot
With Use interface, more convenient to use.
Integrated with defogging fan, no fog during the cold weather.
Contain DVR support to 128GB
Spectrum Analyzer, pilot can check signal strength in the field.
Support 2S~6S battery, more convenient in the field.
Support HDMI in
AV Output/Input

High-quality H.264 video

Bulit-in with de-fogging and heat-sink fan

Front camera

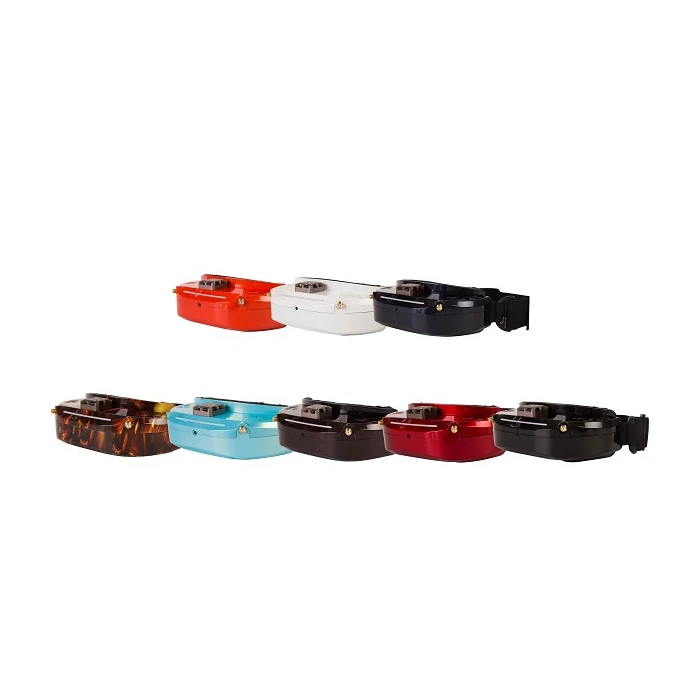

9 colors (Diamond Blue,Camouflage,Ice blue,Amber,Metallic orange,Metallic black,Red,Black,White)

RF Mode:
3D Mode, only available under the RF mode.
2D Mode

Specifications:
Brand Name: Skyzone
Item Model: SKY03O FPV Goggles
Binocular Display:
FOV: 30 degree(Diagonal)
Resolution: 1024×768(WVGA) 1,229,760 color sub-pixels
Brightness: 350cd/㎡
Interpupillary Distance(IPD): 63.5ą6mm
Sensitivity: -90dBmą1dBm
Antenna: SMA 50ohm
Front Camera:
FOV: 60 degree(Diagonal)
Resolution:1024×768(VGA)
Focal Length: f=4.0mm
F/NO:=2.8
Head Tracker:
Sensor: Magnetic,Inertial and gyro
Output: PPM 8CH, Optional 5‐6CH,5‐7CH,5‐8CH,6‐7CH,6‐8CH,7‐8CH
Micro SD: Support to 32GB
Compression:MJPEG, 30fps,AVI
Picture: JPEG
Record Rate: 6Mbps
Video Standard: NTSC/PAL
Video output level:1.0Vp‐p Typ. / 75ohm
Audio output level:1.0Vp‐p Typ. / 10Kohm
Div. AV OUT(3.5mm4P):Diversity Video, Audio output
EAR OUT(3.5mm3P):Stereo 16Ω/150mW
AV IN(3.5mm4P):Video ,Audio input
HD Port IN(Micro HD Port/C‐Type):HD Port 1.4 specification
1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50,1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i, PC Format(Not all)
DC IN: DC 7~26V/ 1A(2S~6S)
Power Consumption:12V input, 5.4W
Dimensions:168(L)X92.5(W)X41(H)MM
Operating Temperature:0 ℃~+60℃

Package Included:
1 x Skyzone SKY03O FPV Goggles
1 x Futaba Data Cable
1 x JR Data Cable
1 x WFLY Data Cable
2 x 5.8G 2dBi Antenna
1 x AV Cable
1 x Power Cable
