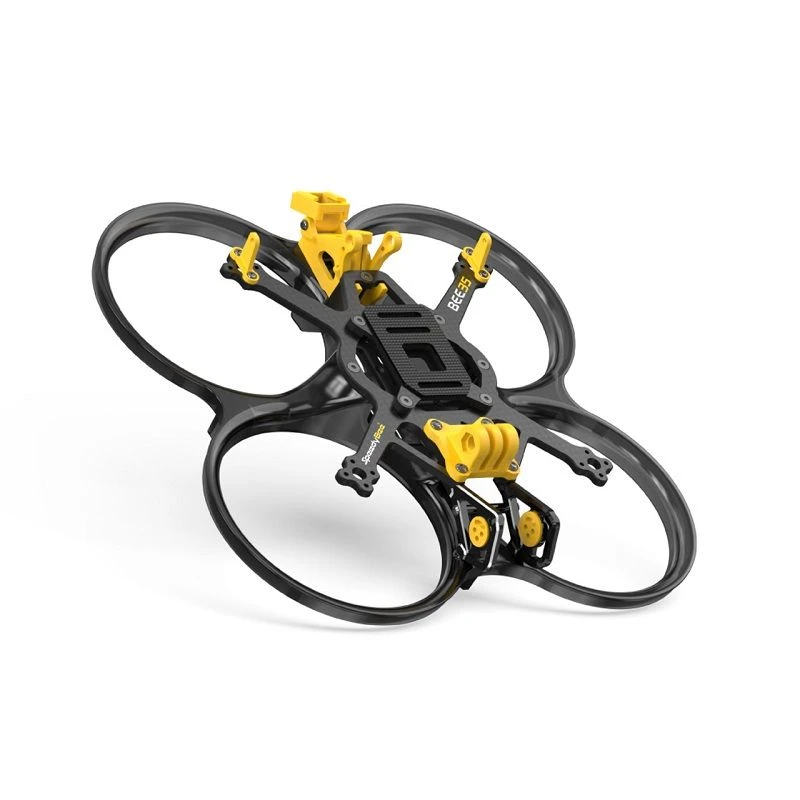

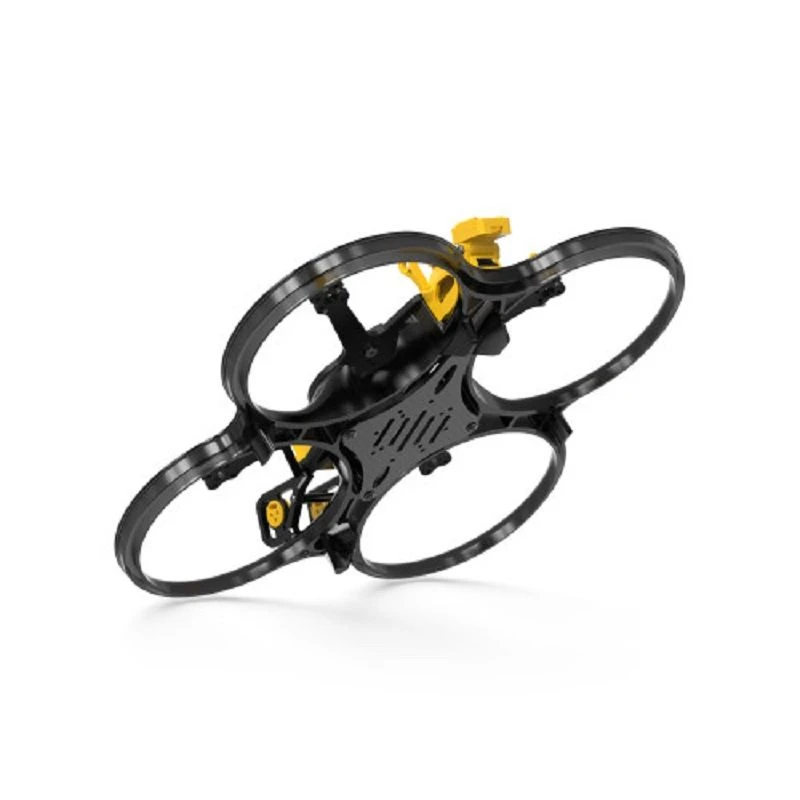

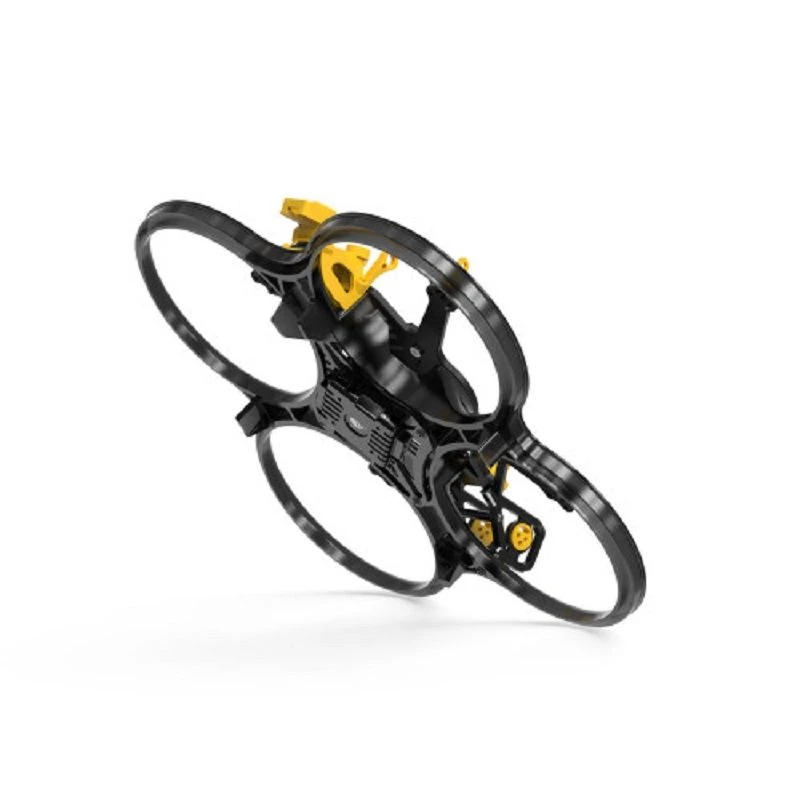

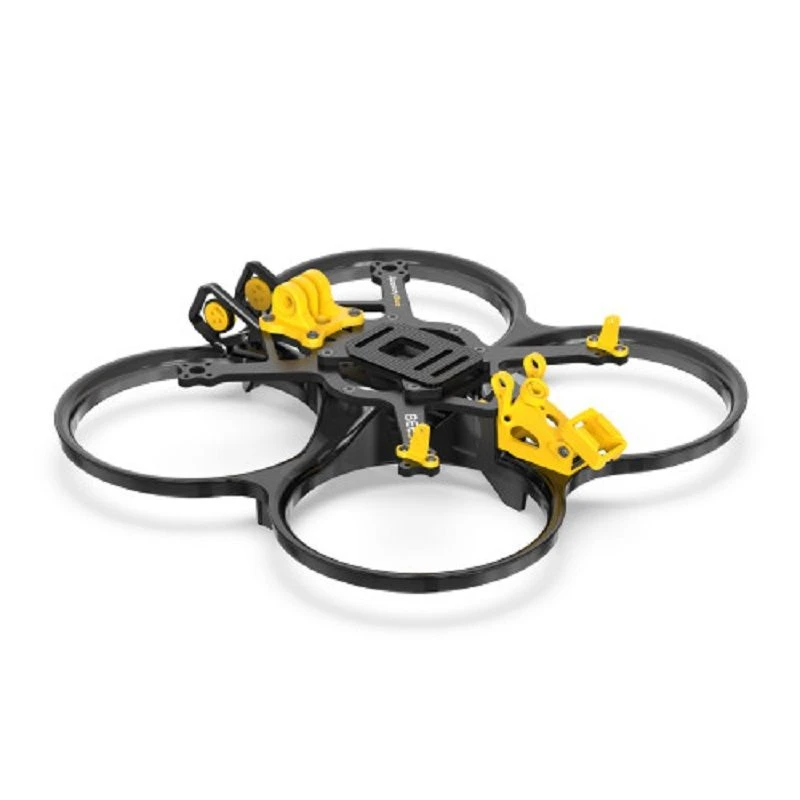

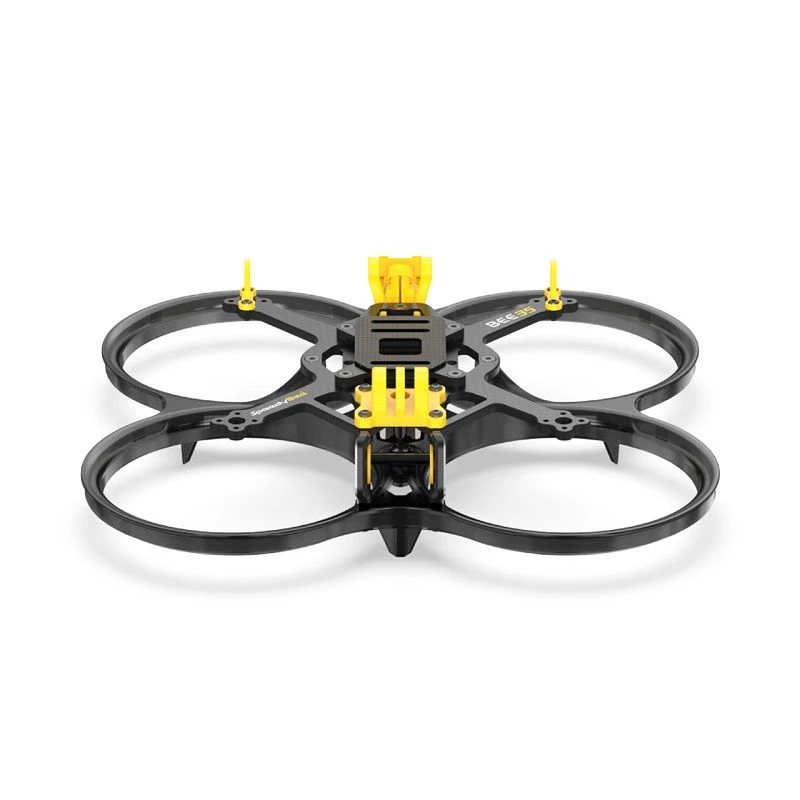

SpeedyBee Bee35 3.5 Inch Frame

Features:
1.Customized aluminum alloy front end to effectively protect unobstructed O3.
2.Customized silicone gel shock aborption for the O3 lens, eliminating jelly effect.
3.Customized aluminum alloy heat dissipation device at the bottom,seamlessly integrated with O3 and runcam link transmission,while aslo facilitating type-c and memory card insertion for convenient frequency adjustments.
4.Flight tower compatibility:Hole patterns for 2020mm/25.5×25.5mm/30.5×30.5mm.
5.Adjsutable GPS mount compatible with both GPS and MASTER 5 V2 GPS mounts,with 121GPS mount included standard.
7.Supports detachcable shock-absorbing gimbal.
8.H-FOV 135° wide-angele without dark corners.
9.Super durable injection-molded ring.

Specification:
Product Name:SpeedyBee Bee35 Frame
Wheelbase:153mm
Top Plate Thickness:3.5mm
Bottom Plate Thickness:2mm
Camera Mounting Distance:19/20mm
ESC/Motor Mounting Height:24mm
Flight Stack Mounting Holes:20*20/25.5*25.5/30.5*30.5mm
Video Transmitter Mounting Holes:20*20/25.5*25.5
Propeller Size:90mm
Motor Mounting Holes:12*12mm
Weight:138g
CNC Heat Sink:15g
Camera Gimbal:28g
Recommended Motor:1806/2004/2006
Recommended KV:4S/2500-3500KV,6S/1800-2300KV
Recommended Battery:900-1500mAh 4S/6S

Package Includes:
1x SpeedyBee Bee35 3.5 inch Frame
