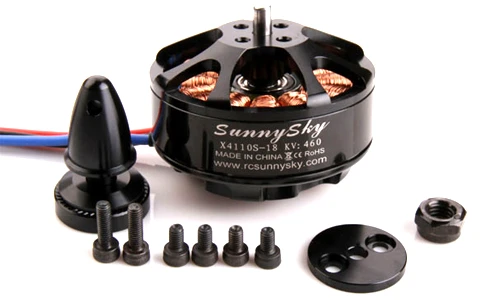

Sunnysky X4110S 340KV/400KV/460KV/580KV/680KV Brushless Disc Motor For Multicopter
Original price was: $39.99.$27.99Current price is: $27.99.
- Excellent customer service online in a timely manner
- The quality you expect, the service you deserve.
- The best quality products, always.
- 100% Quality Promise
PRODUCT DESCRIPTION
Specifications:
– Model: X4110S 340KV
– Stator Outer Diameter: 41mm
– Stator thickness: 10mm
– Structure: 12N14P
– KV: 340KV
– Empty load current: 0.2A
– Resistance: 143m
– Max.continuous current: 21A/30S
– Max.continuous power: 466W
– Weight: 148g(with cable)
– Rotor Diameter: 48.2mm
– Outer shaft diameter: 4mm
– Length: 30.5mm
– Total length: 36.5mm
– Max.battery cell: 6S
– Recommanded propeller: DJI15*5.5 1750 Carbon fiber propeller
– Model: X4110S 400KV
– Stator Diameter 41mm
–
Stator Thickness 10mm
–
No. of Stator Arms 12
–
No. of Stator Poles 14
–
Motor KV 400
–
No-Load Current (A/10V) 0.3A
–
Motor Resistance 112mΩ
–
Max Continuous Current 26A/30S
–
Max Continuous Power 577W
–
Weight 149g
–
Outside Diameter 48.2mm
–
Shaft Diameter 4mm
–
Body Length 30.5mm
–
Overall Shaft Length 36.5mm
–
Max Lipo Cell 6S
–
Recommended Prop(inch) APC12x3.8,APC13x4, APC14x4.7, DJI15x5.5
– Model: X4110S 460KV
– Stator Outer Diameter: 41mm
– Stator thickness: 10mm
– Structure: 12N14P
– KV: 460KV
– Empty load current: 0.4A
– Resistance: 102m
– Max.continuous current: 26A/30S
– Max.continuous power: 577W
– Weight: 148g(with cable)
– Rotor Diameter: 48.2mm
– Outer shaft diameter: 4mm
– Length: 30.5mm
– Total length: 36.5mm
– Max.battery cell: 6S
– Recommanded propeller:Â APC12x3.8
– Model: X4110S 580KV
– Stator Outer Diameter: 41mm
– Stator thickness: 10mm
– Structure: 12N14P
– KV: 580
– Empty-load current: 0.5A
– Resistance: 51m
– Max.continuous current: 32A/30S
– Max.continuous power: 473W
– Weight: 148g(w/cable)
– Rotor diameter: 48.2mm
– Out shaft diameter: 4mm
– Motor length:Â Â Â 30.5mm
– Total length: 36.5mm
– Max.battery cell: 4S
– Propeller recommanded: APC12x3.8 APC14x4.7 DJI15x5.5
– Model: X4110S 680KV
– Stator Outer Diameter: 41mm
– Stator thickness: 10mm
– Structure: 12N14P
– KV: 680
– Empty-load current: 0.6A
– Resistance: 38m
– Max.continuous current: 40A/30S
– Max.continuous power: 592W
– Weight: 148g(w/cable)
– Rotor diameter: 48.2mm
– Out shaft diameter: 4mm
– Motor length:Â Â Â 30.5mm
– Total length: 36.5mm
– Max.battery cell: 4S
– Propeller recommanded: APC12x3.8 APC14x4.7 DJI15x5.5
Â
| Spec | 340KV(GA0094), 400KV(GA0095), 460KV(GA0096), 580KV(GA0097), 680KV(GA0098) |
|---|
