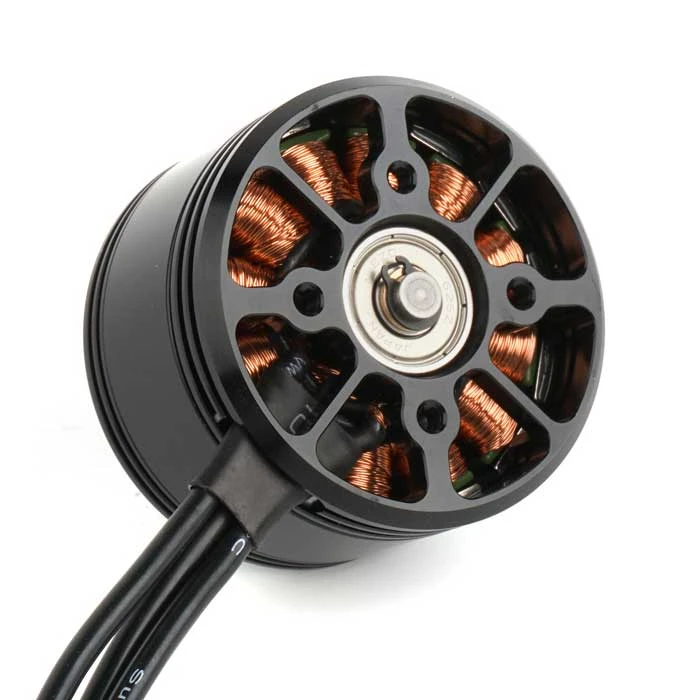

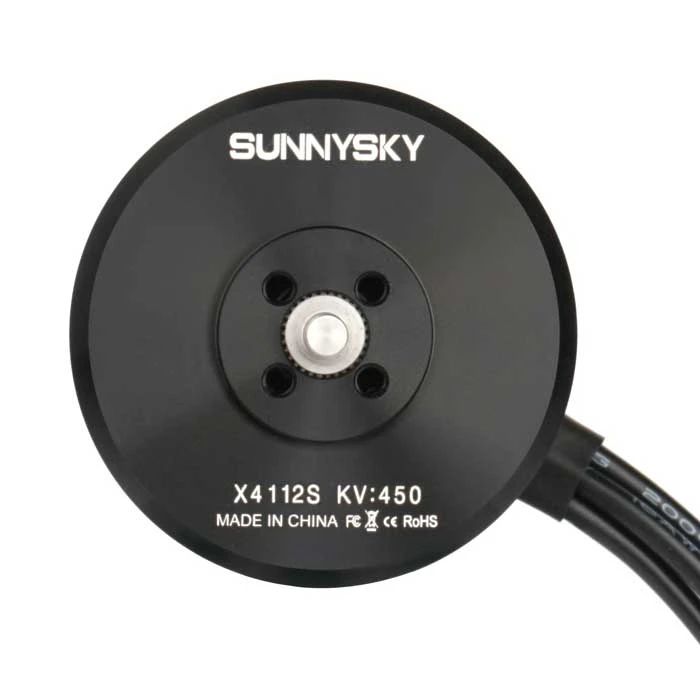

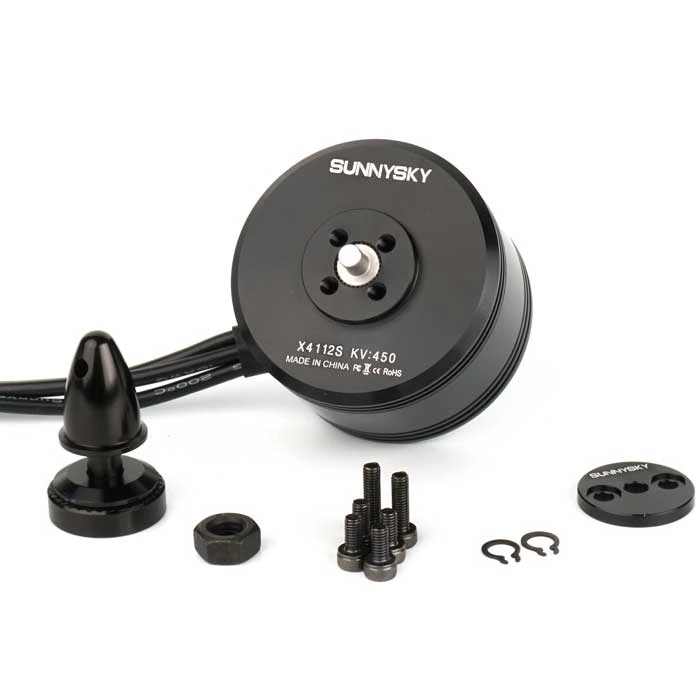

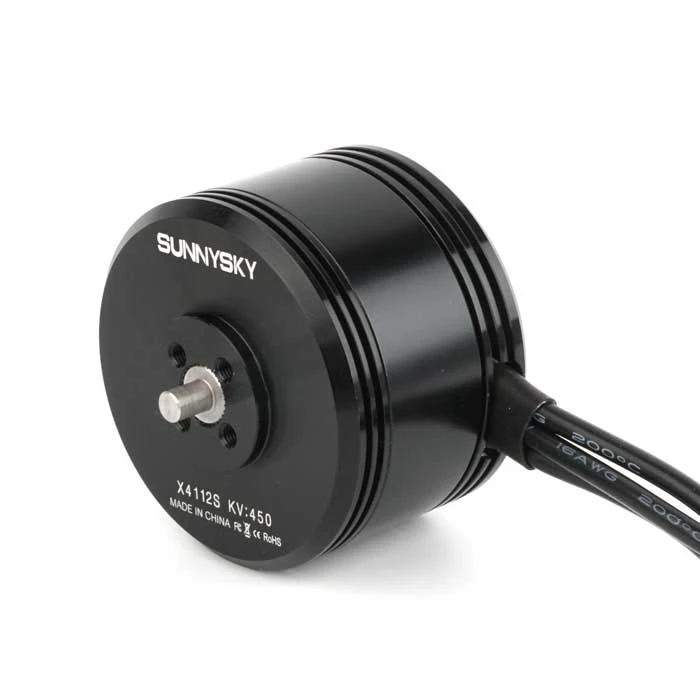

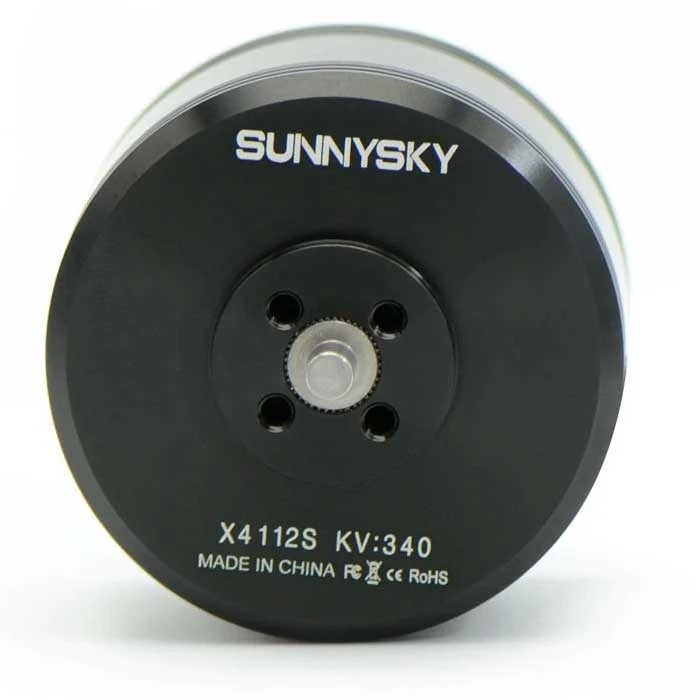

Sunnysky X4112S 340KV 400KV 450KV High Power 6S Brushless Motor For Drones

Sunnysky X4112S 340KV 400KV 450KV High Power 6S Brushless Motor For Drones - Image 2

Sunnysky X4112S 340KV 400KV 450KV High Power 6S Brushless Motor For Drones - Image 3

Sunnysky X4112S 340KV 400KV 450KV High Power 6S Brushless Motor For Drones - Image 4

Sunnysky X4112S 340KV 400KV 450KV High Power 6S Brushless Motor For Drones - Image 5

Sunnysky X4112S 340KV 400KV 450KV High Power 6S Brushless Motor For Drones -Drone Supply Store sunnysky x4112s 340kv 400kv 450kv high power 6s brushless motor for drones 45

Sunnysky X4112S 340KV 400KV 450KV High Power 6S Brushless Motor For Drones

Original price was: $54.99.Current price is: $38.49.

SKU: CMMTD 2029282858 Categories: Motor for Drones, MULTI-ROTORS

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

PRODUCT DESCRIPTION

Sunnysky X4112S series motor is great for multi-rotor drones, the max thrust can reach 4100g.
Sunnysky X412S brushless motor is suitable with 6S battery. And it is suitable for 15″ to 18″ propellers. With the EZO bearing, the X4112S motors are stable, quiet, and have great longevity.

X4212S 340KV

No.of Stator Slots	12	Rotor Diameter	47.5mm
No.of Rotor Poles	14	Shaft Diameter	4mm
Motor Kv	340	Body Length (Without Shaft)	35mm
No-load current	0.6A/10V	Body Length	33.5mm
Motor Resistance	108mΩ	Max Lipo Cell	6S
Max Continuous Current	30A/30s	ESC	40-60A
Max Continuous Power	750W	Recommended Prop(inch)	144.7/155.5/16*6
Weight	188g	Weight for multirotors	≤1500g

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
14×4.7	22.2	2	500	44.4	11.26126126	45℃
		3.4	750	75.48	9.936406995
		5.2	1000	115.44	8.662508663
		7.1	1250	157.62	7.930465677
		9	1500	199.8	7.507507508
		11.4	1750	253.08	6.914809546
		14	2000	310.8	6.435006435
		15.4	2160	341.88	6.318006318
	25	1.7	500	42.5	11.76470588	58℃
		3	750	75	10
		4.5	1000	112.5	8.888888889
		6.2	1250	155	8.064516129
		8	1500	200	7.5
		10.1	1750	252.5	6.930693069
		12.5	2000	312.5	6.4
		15.3	2300	382.5	6.013071895
		19	2690	475	5.663157895
15*5.5	22.2	1.9	500	42.18	11.85395922	42℃
		3.2	750	71.04	10.55743243
		4.8	1000	106.56	9.384384384
		6.6	1250	146.52	8.531258531
		8.6	1500	190.92	7.856693903
		10.8	1750	239.76	7.298965632
		13.3	2050	295.26	6.943033259
	25	1.7	500	42.5	11.76470588	56℃
		2.9	750	72.5	10.34482759
		4.4	1000	110	9.090909091
		5.9	1250	147.5	8.474576271
		7.8	1500	195	7.692307692
		9.5	1750	237.5	7.368421053
		12	2000	300	6.666666667
		14.5	2300	362.5	6.344827586
		16.5	2520	412.5	6.109090909
16*6	22.2	2	500	44.4	11.26126126	48℃
		3.4	750	75.48	9.936406995
		4.9	1000	108.78	9.192866336
		6.8	1250	150.96	8.280339163
		8.4	1500	186.48	8.043758044
		10.7	1750	237.54	7.367180264
		13	2000	288.6	6.93000693
		16	2300	355.2	6.475225225
		19.3	2660	428.46	6.20828082
	25	1.8	500	45	11.11111111	68℃
		3.1	750	77.5	9.677419355
		4.5	1000	112.5	8.888888889
		6	1250	150	8.333333333
		7.8	1500	195	7.692307692
		9.6	1750	240	7.291666667
		11.6	2000	290	6.896551724
		14.1	2300	352.5	6.524822695
		17.1	2600	427.5	6.081871345
		21.5	3000	537.5	5.581395349
		23.8	3220	595	5.411764706

X4212S 450KV

No.of Stator Slots	12	Rotor Diameter	47.5mm
No.of Rotor Poles	14	Shaft Diameter	4mm
Motor Kv	450	Body Length (Without Shaft)	35mm
No-load current	0.7A/10V	Body Length	33.5mm
Motor Resistance	91mΩ	Max Lipo Cell	6S
Max Continuous Current	40A/30s	ESC	40-60A
Max Continuous Power	1000W	Recommended Prop(inch)	144.7/155.5/16*6
Weight	188g	Weight for multirotors	≤1700g

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
14*4.7	22.2	2	500	44.4	11.26126126	53℃
		3.5	750	77.7	9.652509653
		5.2	1000	115.44	8.662508663
		7.3	1250	162.06	7.713192645
		9.2	1500	204.24	7.344300823
		11.8	1750	261.96	6.680409223
		14.3	2000	317.46	6.3000063
		17.8	2300	395.16	5.820427169
		21.5	2600	477.3	5.447307773
		23.2	2760	515.04	5.358807083
	25	1.9	500	47.5	10.52631579	68℃
		3.2	750	80	9.375
		4.7	1000	117.5	8.510638298
		6.5	1250	162.5	7.692307692
		8.5	1500	212.5	7.058823529
		10.5	1750	262.5	6.666666667
		12.9	2000	322.5	6.201550388
		15.8	2300	395	5.82278481
		19.1	2600	477.5	5.445026178
		24.5	3000	612.5	4.897959184
		27.9	3350	697.5	4.802867384
15*5.5	22.2	2	500	44.4	11.26126126	46℃
		3.3	750	73.26	10.23751024
		5.1	1000	113.22	8.832361774
		6.9	1250	153.18	8.160334247
		8.7	1500	193.14	7.766387077
		11	1750	244.2	7.166257166
		13.5	2000	299.7	6.673340007
		16.6	2300	368.52	6.24118094
		20.2	2650	448.44	5.909374721
	25	1.7	500	42.5	11.76470588	63℃
		3	750	75	10
		4.4	1000	110	9.090909091
		6.1	1250	152.5	8.196721311
		7.8	1500	195	7.692307692
		9.7	1750	242.5	7.216494845
		11.8	2000	295	6.779661017
		14.5	2300	362.5	6.344827586
		17.8	2600	445	5.842696629
		21.9	3000	547.5	5.479452055
		25.3	3290	632.5	5.201581028
16*6	22.2	2.1	500	46.62	10.72501073	71℃
		3.5	750	77.7	9.652509653
		5.1	1000	113.22	8.832361774
		6.9	1250	153.18	8.160334247
		9	1500	199.8	7.507507508
		11	1750	244.2	7.166257166
		13.2	2000	293.04	6.825006825
		16.3	2300	361.86	6.356049301
		19.6	2600	435.12	5.975363118
		24.5	3000	543.9	5.515719801
		28.6	3360	634.92	5.292005292
	25	2	500	50	10	5 min 98℃
		3.3	750	82.5	9.090909091
		4.7	1000	117.5	8.510638298
		6.3	1250	157.5	7.936507937
		8.1	1500	202.5	7.407407407
		9.9	1750	247.5	7.070707071
		12.1	2000	302.5	6.611570248
		14.9	2300	372.5	6.174496644
		17.8	2600	445	5.842696629
		22	3000	550	5.454545455
		28.2	3500	705	4.964539007
		36.3	4100	907.5	4.517906336
