PRODUCT DESCRIPTION
Features:
1.The dual-band RF system combines the features and advantages of 2.4GHz and 5GHz together into one system.
2.Consistent performance  interference environments.
3.Support manual fixed frequency and adaptive.
4.1080p@60fps video,Android 9.0 OS,10ms transmission Latency,and long operating time.
5.High brightness display endurance.
6.Long distance:Private proprietary protocol optimized for long range wireless transmission;
             Signal transmission range up to [email protected] and 7KM@5GHz.
7.Ergonomics:the handle grips made with a high-quality compfortable material and designed ergonomically to fit hands well.
           the layout and position of mechanical control parts are designed with special consideration.
8.Integrated data link,remote control and video display into single device.
9.Compacted and portable GCS.
Specification:
Working frequency: Â Â Â Â Â Â Â Â Â Â Â Â 2.4GHz/5GHz
Transmitting power: Â Â Â Â Â Â Â Â Â Â Â [email protected], 24dBm@5GHz
Max. range: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 15 km
Arg. range: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 3 Km
RC channels: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 14
Air Unit
Dimension: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 83*50*22.5mm
Weight: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 41 g
Voltage input:                   6S~16S(22.2V-59.2V
Power consumption: Â Â Â Â Â Â Â Â Â Â Â Â Â 8W
Interface: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â ETH*2, TTL*2, S.BUS*1

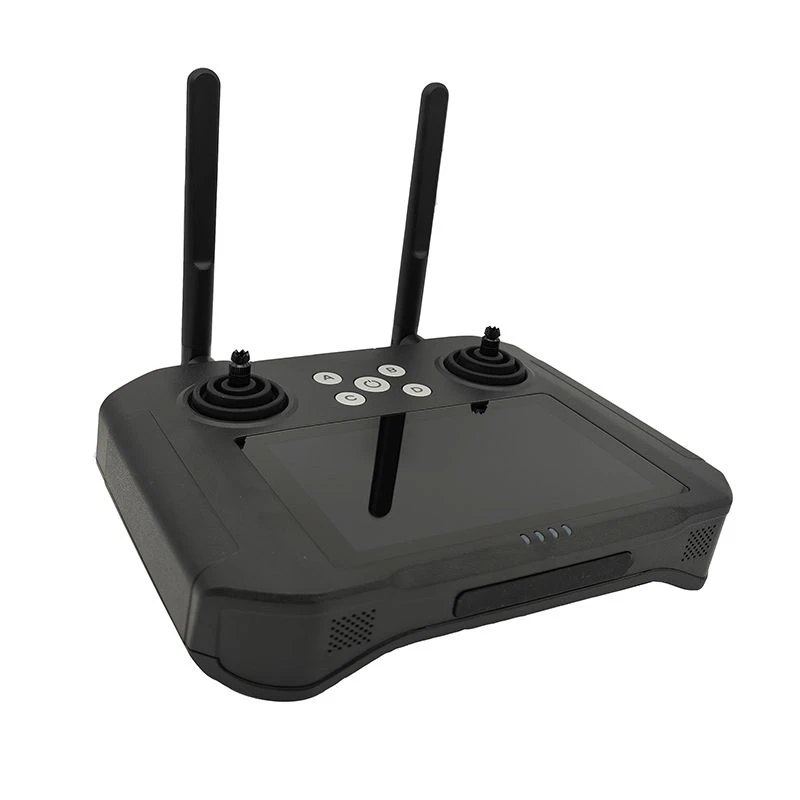

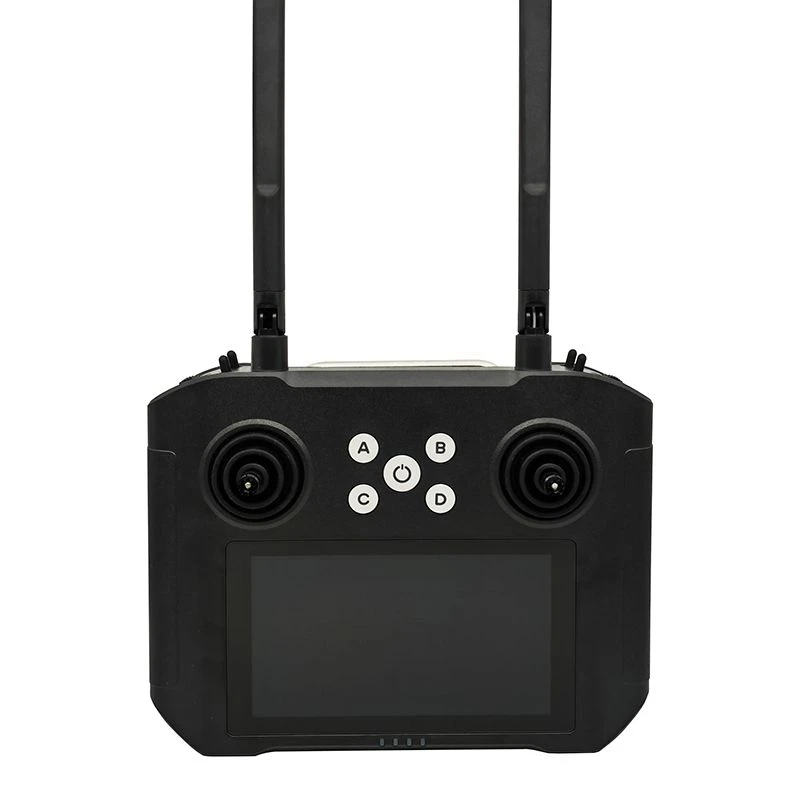

Remote Controller
Display:                        5.5’’ LCD touch panel
Operating system: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Android 9.0, 2GB RAM
Capacity: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 16 GB
Dimension:                      210×178×75 mm
Weight: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 793 g
Battery: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 7800mAh 7.4V
Power charge interface: Â Â Â Â Â Â Â Â Â Â Type-C
Charging time: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 2 hours
Flying time: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 6 hours
Package Includes:

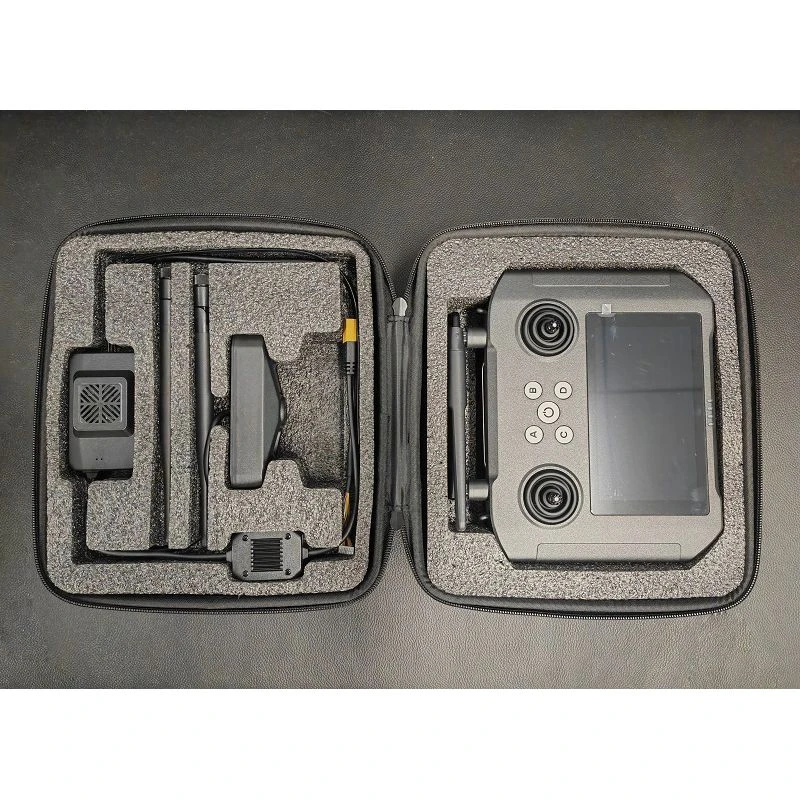

1x aisync ViuRC5 Â Dual-band 2.4Ghz/5Ghz Long Range Remote Controller
