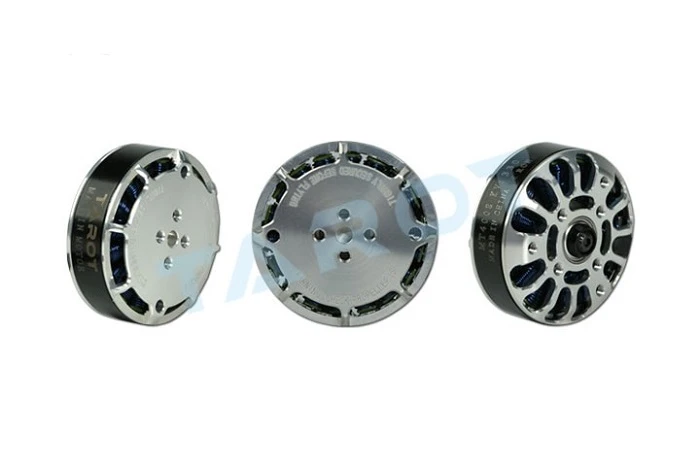

Tarot 4008 330KV 6S Martin Long Flight Time Brushlessless Motor TL2955 For 17-19 Inch Propellers

Product description:
4008 Martin long endurance non brush motor applicable to long endurance multi rotor UAV (quadrotor machine weight of less than 3.5 kg, six rotor machine weight 5 kg below). The folding blade can be obtained without collocation Martin demand for long endurance uav. The overall design of the motor is very low, so as to increase the stability of the motor. The high efficiency active heat sink is provided, which brings the super low temperature, and effectively improves the energy conversion efficiency.
TAROT to performance of the CNC lathe and milling composite processing technology, high standard manufacturing the star motor, single motor weighs only 85 grams (including folding blade clip). Martin series belong to the TAROT power matching updating new products, new products all through long time testing and tuning, in order to obtain a low power consumption and high lift to meet requirements of market of long endurance UAV.

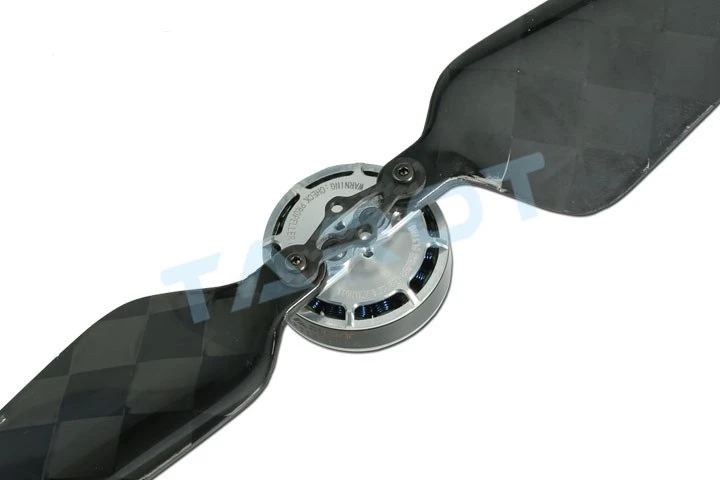

The new design of the folding rotor mounting seat adaptability is wide, general purpose conventional propeller and the installation of new Martin folding propeller. The base of the motor is made of high hanging design, which has a protective effect on the coil. Installation hole 19MM/ triangular mounting hole 27.7MM, compatible with the current mainstream of the market on the rack installation, the appearance of the consistency of the consistency with the traditional motor. The advantages of long service life, high efficiency, low power consumption, low noise and stable control of TAROT brushless motor are inherited.
Related product number:
4008 Martin Hale brushless motor TL2955
4006 Martin Hale brushless motor TL2954
19.5 inch 49.53cm /4 TL2949 folding Martin carbon paddle
17.5 inch 44.45cm /4 TL2948 folding Martin carbon paddle
15.5 inch 39.37cm /4 TL2947 folding Martin carbon paddle
1865 Martin quick release carbon paddle TL2934
1555 Martin quick release carbon paddle TL2933
Product parameters:
Support lithium section number: 6S
Propeller installation diameter: 10MM/12MM/34MM
Propeller: 17-19 inch
Stator diameter: 38MM
No load current: 20V 0.53a
Stator end thickness: 8
Stator end number: 18N
Motor pole number: 24P
Speed: 330KV + 5%
Motor external diameter: 44.5MM
Axis diameter: 4MM
Motor height: 22MM
Maximum continuous current (1): 30A
Maximum continuous power: 497W
Motor weight: 85G (including the propeller seat)

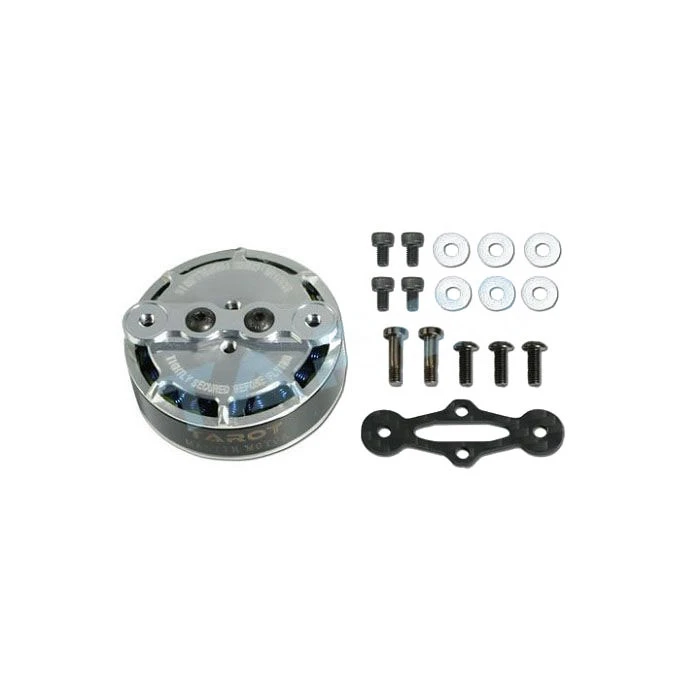

Product specifications:
4008 Martin Hale brushless motor * 1
Metal folding propeller base (44 * 10 * 2.5MM) 2.0G * 1
Carbon fiber folding propeller base clip (44 x 15 x 1 x 0.85G 2.0MM)
A metal folding propeller base mounting screws: M3 * 4MM * 0.4g 2 half round head screw
Rotor mounting screw: M3 * 11.3MM * 0.6g 2 screw sleeve
Motor mounting screws: M3 * 8MM * 0.4g 3 half round head screw
Spare motor mounting screws: M3 * 5MM cup head screws 0.4g * 4
Teflon gasket (8 x 6 x 3 x 0.5MM) 0.05g

Package Includes:
1 x Tarot 4008 Martin motor TL2955
