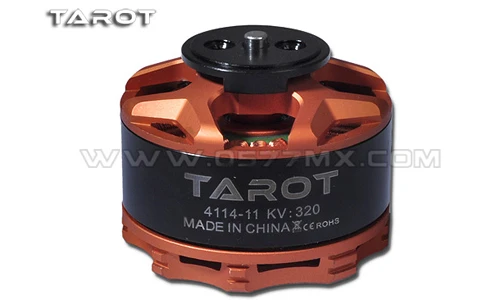

Tarot 4114/320KV Multi-copter Brushless Motor TL100B08-02

Original price was: $49.98.Current price is: $34.99.

SKU: CMMTD 2972992821 Categories: Motor for Drones, MULTI-ROTORS

Excellent customer service online in a timely manner
The quality you expect, the service you deserve.
The best quality products, always.
100% Quality Promise

Description
Reviews (0)

PRODUCT DESCRIPTION

:
4114/320KV Brushless Motor is designed for multi-copter.
CNC processed, smooth surface and well-balanced.
Brand-new turbofan cover, which provide good heat dissipation effect.
Rotor is made by neodymium iron boron, and stator is made by Epoxy resin, motor is well-balanced from factory, which solves vibration issue a lot. Motor shaft is alloy steel applied.

Motor upper and lower cover are special bearing applied, which has advantages such as low frictional torque, low power consumption, impact resistance, strong radial support.

Parameter:
Outer diameter: 46mm
Stator diameter: 41mm
Stator thickness: 14mm
Stator number: 24N
Magnet Poles: 22P
Wire diameter: 0.31mm
Motor KV: 320RPM/Volt
22.2V No-load current: 0.5Amps
Resistance: 126m§Ù
Weight: 148g
Gear shaft diameter:¡Ë4.0 mm
Motor length: 32mm
Motor shaft length: 37mm

Specification:
M2.5 x 6 screws x 3
4114-11KV320 x 1
