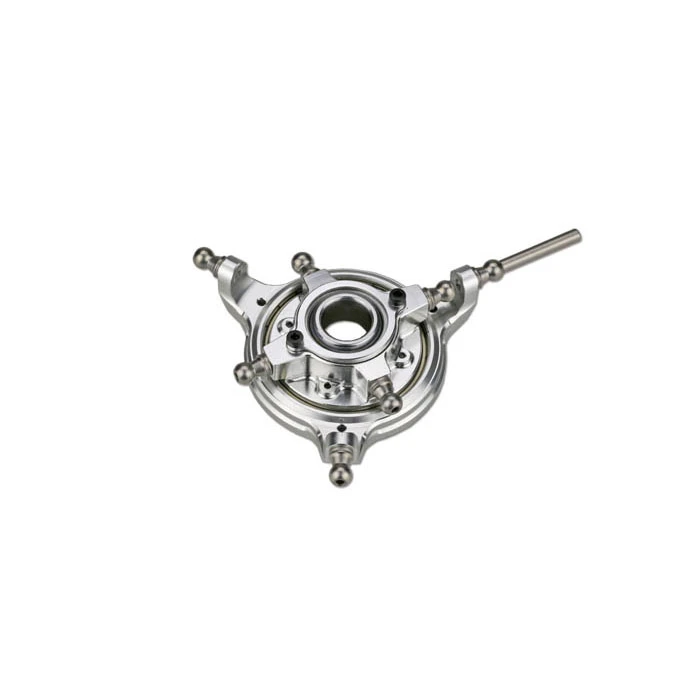

Tarot 550/600 Swashplate MK55011

This swashplate is suitable for Tarot 550 and 600 rc helicopter. It adopts 6061-T6 aluminum alloy material, high-precision four-axis turning and milling composite 3D integrated molding, with high precision structural strength. It can meet the demanding flight load requirements and effectively improve flight stability and handling performance.

The swashplate adopts a patented design with no virtual structure and an independent fixing method. This patented design can reduce the assembly clearance, leaving only the virtual position of the bearing itself. The use of this structure makes it very convenient to repair, disassemble, and maintain the swashplate.

With the Japan NSK bearings, all the ball head threads are increased to 3.0MM, which avoids the problem that the original M2 ball head is easy to slip and be vulnerable, so as to adapt to the current load requirements of the mainframe on the swash plate.

Product specifications:
External disk of swashplate x1 (Φ60.4xΦ30x14mm) 17G
The inner disk of the swash plate x1 (Φ36.7×17Φx10mm) 5.6G
Under the swash plate bearing seat x 1 (32.5Φ x 16.5Φ x 3mm) 2.7G
Brake disc outer disk bearing x 1 (Φ37 x Φ30 x 4mm)
Fisheye bearing x 1 GE10mm 10.7G
Fisheye bearing gland x 1 (27Φ x 17Φ x 1.8mm) 0.4G
M3x4mm guide plate long ball head x 1 (Φ4.7×29.5mm) 1.8G
M3x4mm ball head x1 (Φ4.7×10.6mm) 0.85G
M2x5mm cup head screw x5
M2x4mm semi-circular head screw x4
M2 metal gasket surface x3
