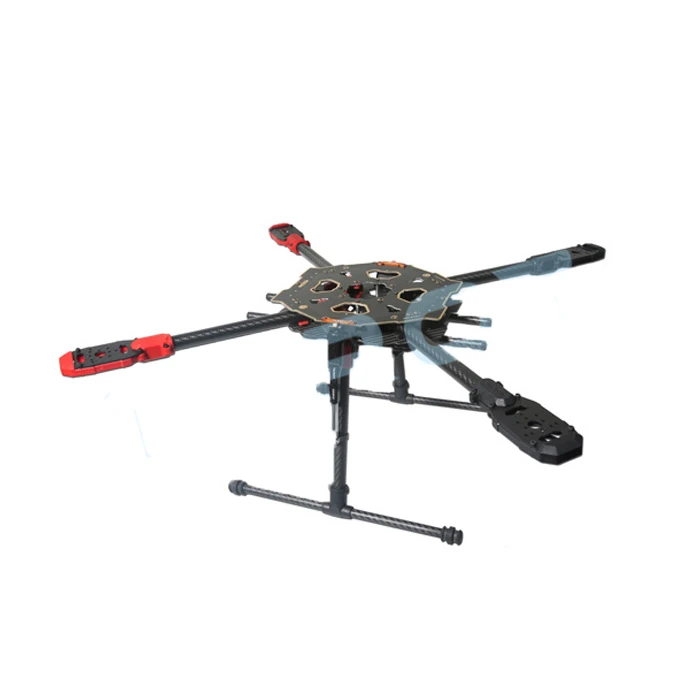

Tarot 650 Sport Quadcopter TL65S01 With Electric Retractable Landing Skid

:
Tarot 650 Sport quadcopter frame is the latest generation multicopter frame for 650 class multicopter. Tarot company independent designed the frame and hold several patents. The Tarot 650 Sport comes with the new electronic retractable landing skid, retractable landing skid controller board TL8X002. The gravity center is lower, the installation space is bigger, and the quadcopter is more stable.

The main frame comes with the high strength matt surface PCB circuit board. With it, it will be faster and safer to connect the power and esc wires. Meanwhile, it saves much space on the frame. The new version motor mount plate added the brushless esc installation hole, clamp-on design make it more convenient to adjust the horizontal of the motor mount. Two different color of the motor mount design has strong visual effect, and it will be easy to know the direction of the quadcopter in the air.

Tarot 650 Sport quadcopter frame is specially designed for those who has requirements on ¡°easy to carry¡±, and it can used for monitoring, remote sensing, mapping, aerial reconnaissance, observing on fire, farm monitoring and some other fields.

The wheelbase diameter of the Tarot 650 Sport is 600mm, and the weight is 750g.

Recommended Configuration (Not Include)
Propeller: 12 to 15 inches T series propeller
Brushless Motor: 4S/ 620KV 4006 brushless motor TL68P02
Tarot 4114 320KV brushless motor TL100B08-01/TL100B08-02
Tarot 380kv 4008 brushless motor TL68P07
Battery: 10-15C; 14.8V-22V; 4000mah to 5000mah
ESC: 20A – 30A
