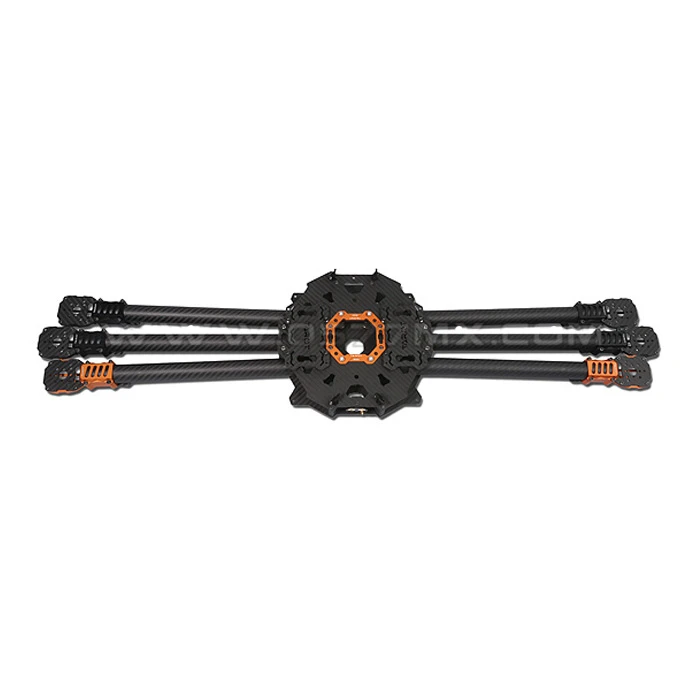

Tarot Foldable Hexa-copter Carbon Fiber Frame TL810A

Product :

• Pure carbon main frame is Japan TORAY 3K carbon fiber applied and CNC processed
• Pure carbon matte CF plate has ultra-high quality and strength
• Foldable design is allowed to equip with wiring directly; please avoid connecting circuit by plug
• Main frame has M3 nut self-locking on the carbon fiber plate, the thread structure has self-locking design, which is capable to resist lateral vibration
• Foldable portion has unique clamping design, which has strong stronger structure
• The whole set is non-slip while folding. Lightweight dual color motor has been CNC processed, the appearance has strong visual effect
• High current gilded aggregator included
• Payload 3kg
• Weight: 1020G
• Tube diameter: 25MM
• Distance from motor to motor: 810MM
• Frame diameter: 850MM
• Main plate: 210 x210 x2.0MM
• Motor installation space: 16MM/19MM/25MM/27MM equilateral triangle installation

Recommend configuration:

• 4114/320KV Brushless Motor for Multi-copter TL100B08
• TAROT Carbon Fiber Propeller 15×5.5 DJI CW/CCW TL2812
• 30-35 ESC for multicopter
• 6S battery 10000-15000MAH

Specification:

• T810 foldable hex-copter frame set x1
• Titanium coated rasp x1
• Water sticker x1
• Colored sticker x1
• Hook & loop fastening tape x1
• Instruction manual x1
• Spare screw x
