Tarot GOPRO 2-Axis Gimbal Stabilizer ZYX22

Tarot 2 axis Gyroscope ZYX22 Gyro for Tarot T-2D Brushless Gimbal

s:
Suitable for GOPRO brushless yuntai TL68A08 (SKU:25824) brushless gimbal or other similar products, used in entertainment, film and television photography, advertising model aircraft photography and so on many fields.

Features:
Support the GOPRO Hero3 video aux output
Support the power supply voltage reverse connection protection and voltage compensation
Support for motor drive side short circuit protection
Support initial pitch angle
Support the sensitivity parameters adjustment and the software 3 d posture display
Support the rocker rate model and location
Support the receiver: conventional receiver S – BUS receiver, DSM2 DSMJ/DSMX receiver
Support remote control equipment: PPM/PCM / 2.4 G
Operating voltage: 7.4 V ~ 14.8 V DC (recommended 12 V, three lithium electricity
Work current :200 ma – 500 ma (related to the power supply voltage and motor power
Working environment temperature: 15-65C
Processor: dual high-speed 32-bit ARM core processor
Sensors: three MEMS gyroscope rotor and rotor MEMS accelerometer
Maximum angular rate: 2000 deg/ SEC
Maximum acceleration: 16 g
Control frequency: 2000 hz
Motor drive frequency: 20 KHZ (noiseless smooth drive)
Accuracy:0.1 deg
Control range: – 45 ~ 45 (roll), – 135 ~ 90 (pitch)
Gesture decoding algorithm: dedicated to brushless motor driven yuntai decoupling EKF algorithm
Applicable filming equipment: GOPRO Hero3

Specification:
Gimbal tuning parameter interface: a serial port module connected to the computer through the USB, used in gimbal main controller tuning parameters and status monitoring
Motor drive tuning parameter interface: a serial port module connected to the computer through the USB, is used to adjust the number of motor driver module,power voltage and current monitoring

Receiver steering gear output interface
R: common receiver roll inputs
T: common receiver pitch input
C: common receiver model input (rocker arm Angle mode or speed)
S: S – BUS receiver channel or photo input channel
P: take pictures steering gear output (infrared photo module can be attached)
+ 5 v output, – : power supply
Satellite interface: used to connect to the satellite receiver
Roll motor and pitch interface: used to connect the motor
Sensor interface: used to connect to sensor

Package including:

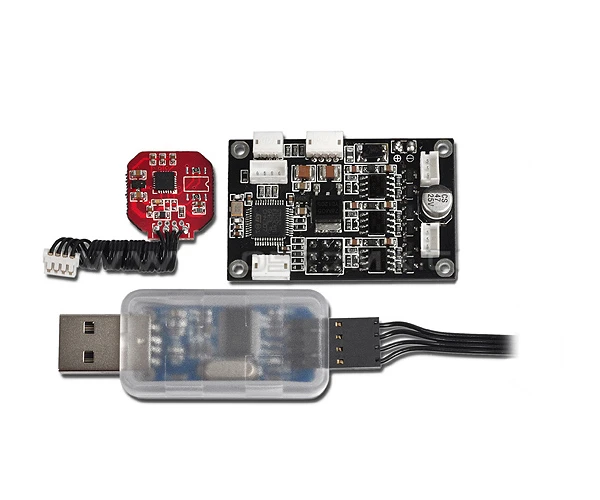

ZYX3 rotor gyroscope quad ZYX07 x 1
GOPRO two axis gyro sensor x1
GOPRO gimbal two axis gyroscope main controllerx 1
4.5x 4.5 MM insulation spacer x 4
2×3 mm round head cross screw x8
