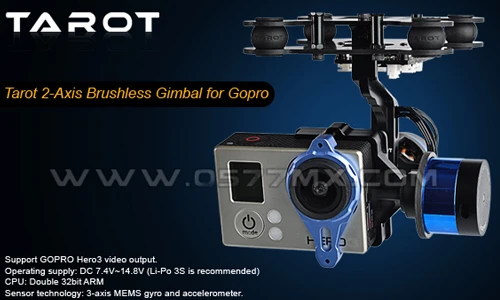

TAROT Gopro3 Two-Axis Brushless Gimbal W/Gyro TL68A00

Tarot T-2D gimbal is designed for the Gopro Hero3, which is widely usedinfilm,television productions, advertising aerial photography, etc. Using 6061T6 aluminum alloy full CNC precision machining and brushless motor driving,its overall framework is designed with the idea of compact, easy installation, high precision, lightweight, high stability and many other characteristics. Evenif the aircraft is in high-speed flight, it can still stabilize and control the Goprocamera precisely with the highest stability, so pictures or videos output can reach the best quality.

Product Features:
– Support GOPRO Hero3 video auxiliary output
– Support the supply voltage polarity protection and voltage compensation
– Support the motor drive end short-circuit protection
– Support for custom initial pitch angle
– Support sensitivity parameter adjustment and software 3D pose show
– The support rocker rate mode and position mode
– Support Receiver: conventional receiver, S-BUS receiver, DSM2/DSMJ/DSMX receiver
– Support for remote devices: PPM/PCM/2.4G
– The working voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
– Working current: 200mA-500mA (power supply voltage and the motor related)
– The working environment temperature: -15¡æ ~ 65¡æ
– The processor: Dual 32-bit high-speed ARM core processor
– The sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers and the three
– The maximum angular rate: 2000¡ã / sec
– The maximum acceleration: 16g
– The control frequency: 2000Hz
– The motor drive frequency: 20KHz (no noise smoothing driven)
– The control accuracy: 0.1¡ã
– The control angle range: -45¡ã ~ 45¡ã (roll), -135¡ã ~ 90¡ã (tilt)
– Pose solver algorithms: PTZ dedicated brushless motor decoupled EKF algorithm
– For shooting equipment: GOPRO Hero

Related Part Number:
– Head hanging hook TL68A01
– GOPRO camera fasteners TL68A02
– GOPRO brushless PTZ camera frame assembly TL68A03
– GOPRO head roll arm TL68A04
– GOPRO PTZ stand arm motor base TL68A05
– GOPRO brushless motor TL68A06 PTZ
– GOPRO two axes PTZ shock group TL68A07
– GOPRO brushless pan rack assembly TL68A08
– GOPRO head roll axis brushless motor TL8A09
– GOPRO AV video output cable TL68A10
– GOPRO PTZ suspension ball TL68A11
– GOPRO two-axis gyroscope ZYX22 PTZ

Manual Download: http://www.myrcmodel.com/manual/tarot-Gopro3-gimbal.rar
