Tarot Iron Man 650 Carbon Fiber Fully Foldable Quadcopter Frame TL65B01

Tarot Iron Man 650 Carbon Fiber Fully Foldable Quadcopter TL65B01

:

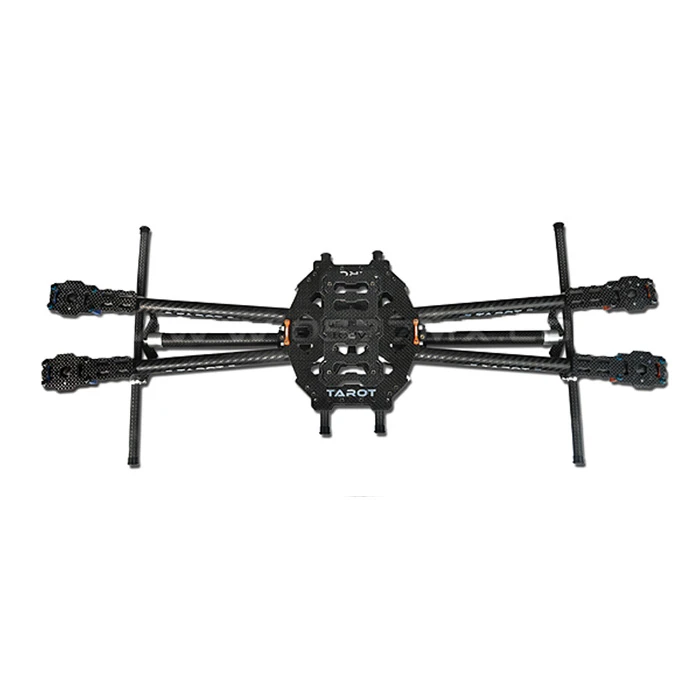

– Tarot Iron Man 650 Rack adopts Toray 3K carbon fiber cloth woven carbon fiber board with 3K hollow twill pure carbon fiber carbon fiber tube (non-3K glassy carbon tube) CNC machining,design standards higher than similar products, the full set of rack weighs only 476 grams. Full folding design, installation designed for users with high portability requirements,the user can flexibly according to the weight of the loaded photographic equipment adjust the center of gravity. Particularly suited to do surveillance, remote sensing, mapping, aerial reconnaissance, fire observed explore life cable line patrol, farm monitoring, and other the mobile performance requirements equipment. You may need other Tarot Quadcopter for your other options and comparison.

Recommended Configuration :
1: gopro configuration (recommended)
-180-250W Motor plus 20 A ESC the plus 4 S 5000 battery plus 10-12 inch propeller
– Recommended configuration: micro single configuration (generally recommended)
– 300-400W Motor plus?30 A ESC the plus 4 S 5000-10000 battery plus 12-14 inch propeller
– Recommended configuration: SLR configuration (not recommended)
– 400W motor plus 40 A ESC plus 6 S 5000-10000 battery plus 14-17 inch propeller

Tarot Iron Man 650 Rack Supporting optional products:
– Tarot 2212/920KV multi-axis high efficiency brushless motor / red TL9014
– Tarot 2212/920KV multi-axis high efficiency brushless motor / Blue TL9013
– The folding tripod TL68B11 of FY680 six-axis aircraft
– The FY680 inverting battery frame TL68B14
– 650 carbon fiber four-axis battery plate TL65B03
– 650 carbon fiber four-axis up-lower cover TL65B04
– M2.5H5 hexagonal aluminum column 22mm TL65B05
– Dia 10MM 3K plain carbon tube (200MM) TL65B06
– The the M16 flight seat motor mount / orange TL68B08
– Dia 16MM 3K pattern matte pure carbon tube TL6809-2
– The M10 metal silicone damping Seat TL68B10
-16MM carbon tube folding the positioning seat plastic components TL68B04
– Four-axis, six-axis, DIY skid landing TL8201
– Dia 16MM carbon fiber GPS holder TL68B13
