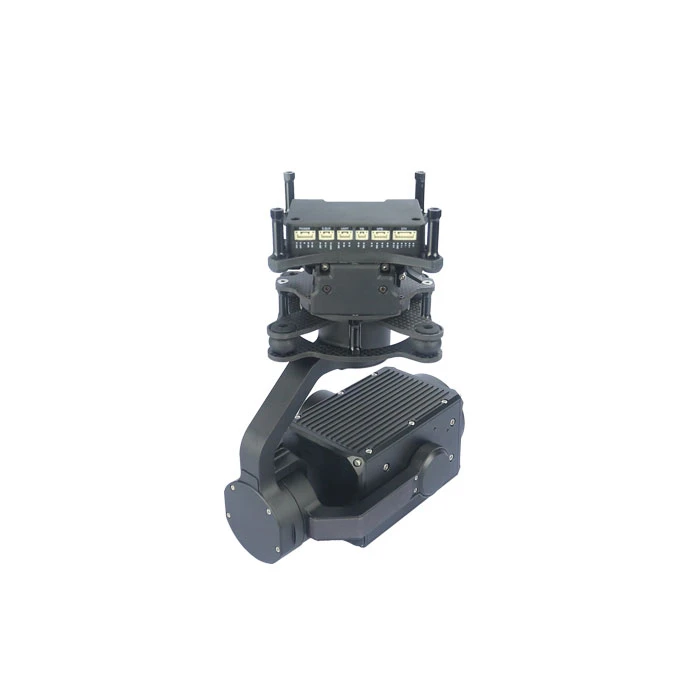

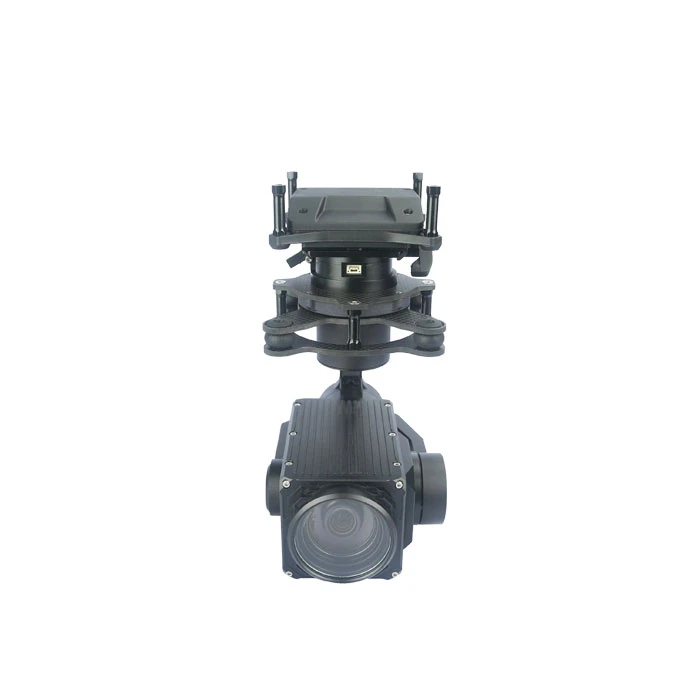

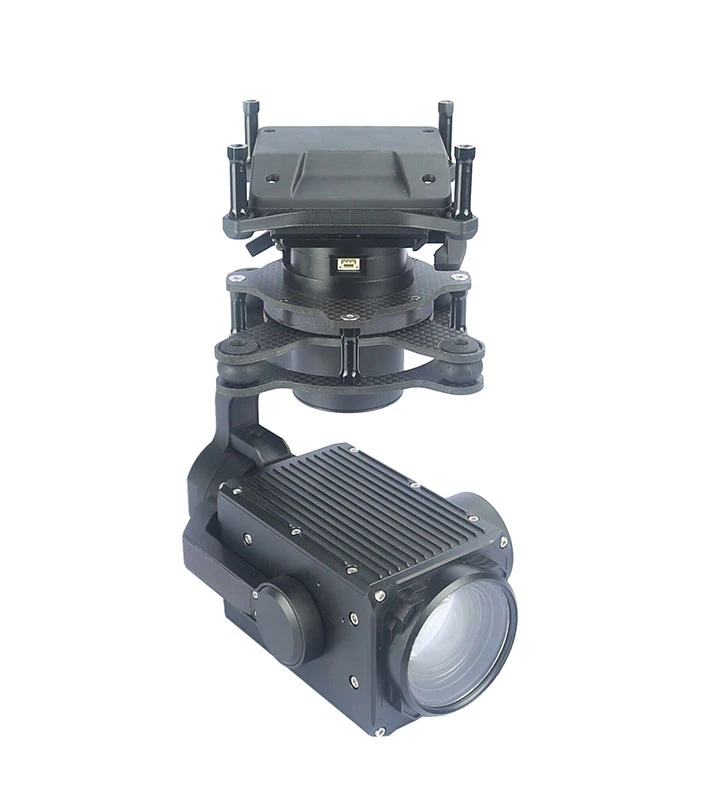

PRODUCT DESCRIPTION
The pod adopts professional three-axis mechanical stabilization technology, and the image stabilization accuracy reaches ±0.01°. It supports connection with unmanned aerial vehicles through the quick release interface, and can be used in many industries such as fire protection, forest public security, public security monitoring, search and rescue, and etc.
Main Features:
1. The optical zoom camera supports 30x optical zoom, the field of view range is 60°~2.3°, and the optical zoom range is f: 4.7~141mm;
2. 4x digital zoom, 120x mixed zoom;
3. Video resolution 1080P@30fps; photo resolution 1920*1080;
4. The minimum illuminance of color mode can reach 0.05Lux/F1.6; the minimum illuminance of black and white mode can reach 0.005Lux/F1.6;
5. Highly optimized servo motor vector control algorithm;
6. Mechanical three-axis image stabilization, ±0.01° image stabilization accuracy;
7. Aluminum alloy structure design, light and strong, good heat dissipation performance;
8. Support tracking function;
9. Weight 755g;
10. Support connection with UAV through quick release interface.
Specifications:
Input power: 20-52V
Average Consumption: 6.0W
Working Enviroment: -20 to 60℃
Size: 150 x 92 x 187mm
Weight: 817g
Camera
Sensor: 1/2.8″ CMOS
Resolution: 2.07mp
Video resolution: 1080P@30fps
Photo resolution: 1920*1080
Optical zoom: 30X
Digital zoom: 4X
Min. Lux: 0.05Lux/F1.6 (Color)
        0.005Lux/F1.6 (Black and White)
S/N: >=55dB (AGC Off, Weight ON)
Video Compression: H.265/H.264/H.264H
Storage: TF Card (256G max)
Network protocol: ONVIF, GB/T28181,HTTP,RTSP,TCP,UDP,RTP
Video output: HDMI(1080P 30FPS)
Support control: UART, SUBS
Advanced Features: Smart Tracking
Max Controllable Rotation Speed:
Pan: +-200°/s
Tilt: +-200°/s
Controllable Rotation Range:
Pan: +-360°
Tilt: -120° to 30°
Attitude Control Accuracy: +-0.01°
Package included:

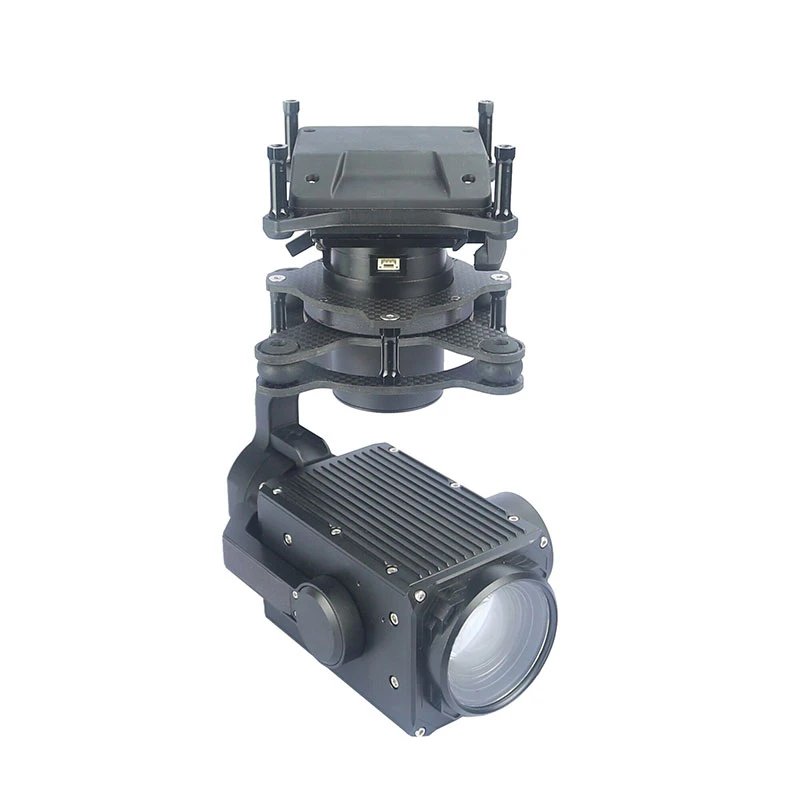

Tarot T30X gimbal x 1
Gimbal parameter adjustment module x 1
Power cable x 1
S.Bus receiver cable x 1
Serial cable/3P x 1
Micro-USB cable x 1
Micro-SD Card 32Gb x 1
Network output and debugging line/4P × 1
Rj45 female seat (network crystal head female seat) ×1
