Tarot T18 UAV Foldable Octocopter TL18T00 Drone Combo With Motor ESC Propellers

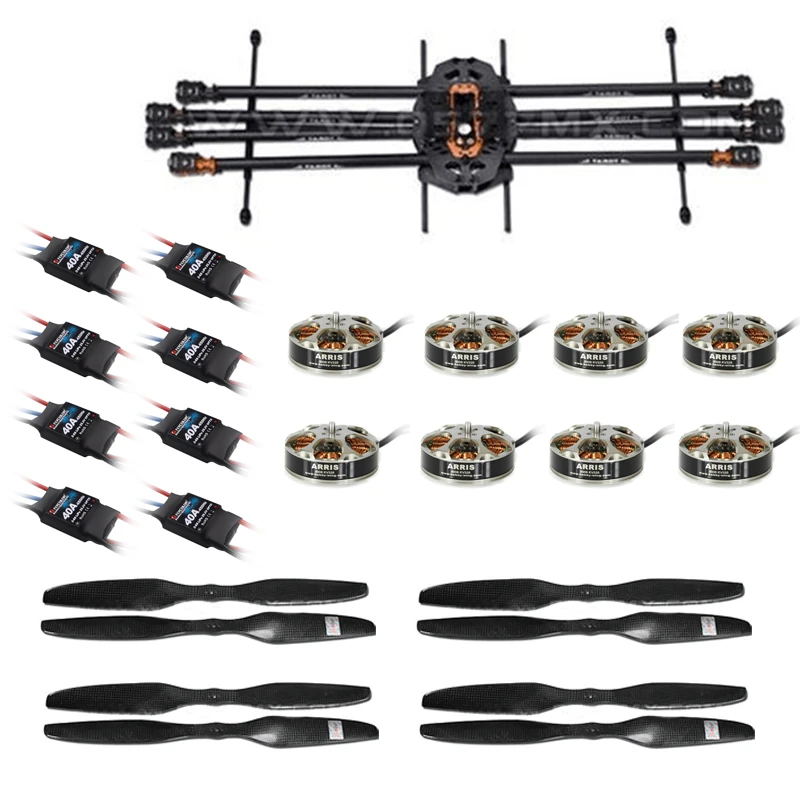

Package Incudes:
1x Tarot T18 Foldable Octocopter Frame Kit
8x ARRIS 5008/335KV Motor
8x Flycolor 40A OPTO ESC
4x TAROT 18inch Propllers CW+CCW

Product :

• Designed for UAV Aerial Photography. Perfect for light capacity, long time, and large range job; for example, RC monitoring, aerial researching, measure sketching, farm developing etc.
• Applicable to 5DII, RED EPIC, C300, FS700.
• Toray 3K carbon fiber applied, CNC processed. Light weight, high strength, vibration resistant.
• Battery mount is detachable, prevent crash damage.
• Metal clamp is 40 dovetail designed, with a strong clamping force.
• Foldable boom is applied with self-tightening thread structure.
• Light weight motor mount is CNC processed, double color appearance, brings strong visual focus.
• Standard mount rod diameter is 12MM. Applicable to gimbals with center distance 165MM.
• Standard equipment: Foldable GPS mount, 8 in 1 aggregator, and multi-copter foldable landing gear.

Difference between TL18T00 and TL15T00:
Mounting distance extended from 155MM to 165MM. Wider center plate. The shaft of TL18T00 is longer, applicable to 17-18 inches propellers and 5008/340KV motor [TL96020].

Parameter configuration requirements:

• Boom diameter: 25MM
• Distance between axis diameter: 1270MM
• Kit diameter: 1320MM
• Height: 420CM
• Center plate: 301x209x2.5MM
• Motor mounting pitch:16MM/ 19MM/ 25MM/ 27MM equilateral triangle installation.
• Propeller specification: 17-18 inch propeller
• Brushless Motor: 5008/340KV, TL96020
• Battery: 6S 22.2V 15000-20000MHA
• Brushless ESC: 35-40A
• Mounting boom diameter: 12MM
• Weight with full accessories: 11KG
• Kit Weight: 2.0KG

Specification:

• T15/T18 Battery Mount [TL15T01] x2
• T15/T18 Aluminum Bolt [TL15T02] x2
• T15/T18 Metal Reinforcement Plate [TL15T03] x1
• T18 UAV center plate [TL18T03] x1
• Pure Carbon Boom for T18 [TL18T01] x4
• Pure Carbon Boom for T18 [TL18T02] x4
• T15/T18 Foldable Oct-copter Mount [TL15T06] x2
• Foldable Mount for GPS Antenna [TL15T08] x1
• T810/T960 Foldable Landing Gear Set [TL96013] x1
• Multi-copter Spacing Shim / 4 pieces [TL96021] x4
• T810/T960 Gimbal Hanging Parts [TL96014] x1
• 8 in 1 Aggregator [TL100B14] x1
• Metal Clamping Holder for Multi-copter [TL9605] x8
• 25MM Motor Mount for Multi-copter/ Orange [TL9602] x2
• 25MM Motor Mount for Multi-copter/ Black [TL9603] x6
• Titanium contact file x1
• Water sticker x8
• Color sticker x2
• Velcro sticker x2
• Instruction x1
• Spare screw pack x1
• Color Box x1
