Tarot X6 6-Axis Hexacopter TL6X001 Super Combo (Not Assembled)

Tarot X6 6-Axis Hexacopter TL6X001 Super Combo (Not Included)

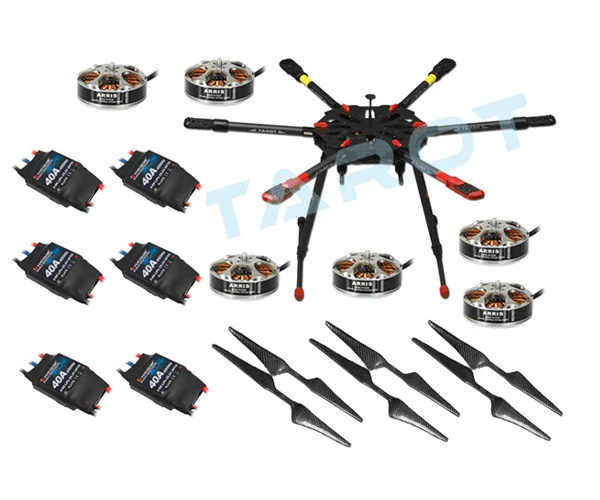

Package Includes:
1 x Tarot X6 TL6X001 Frame

6 x ARRIS 5008/335KV Brushless Motor
6 x Flycolor 40A OPTO 2-6S Brushelss ESC
6 x Tarot 1755 Carbon Fiber Propeller TL2812 (3 pairs) or 1855 carbon fiber propeller TL2848 (Optional)

Tarot X6 multicopter frame is specially designed for professional aerial photography or FPV users. It comes with the new style electronic retractable landing skid, umbrella type folding arms, integrated PCB board which make the power wire and ESC wire connections more safety. Meanwhile, it provides enough installation space for flight controller or other equipments.0″2
For the Tarot X6 multicopter frame, if one of the arms stopped working by accident, the multicopter frame could still in stable status. The main feature of this frame is light in weight, and easy to carry. The max take-off weight is about 9kg, and it is easy to carry the Canon 5D camera with the gimbal. The flight time is about 12 minutes.

The state intellectual property has been awarded the TAROT model.,ltd five patents. Any units orindividual without the license holder manufacture copy use and sale the product will be patent lawsuit.

patent number: 2014204282854
patent number: 014203682366
patent number: 014302624585
patent number: 0143015411040″2
patent number: 014302583208

Specifications:
Diagonal wheelbase: 960mm
Propeller size: 18 inches
Length of one arm: 392mm
Weight of one arm: 113g
Diameter of center plate: 328mm
Height of landing skid:395mm
Battery recommended: 15C, 22.2V 10000mah to 20000mah
6S brushless ESC recommended: 40A
Max Power Consumption: 4000W
Hovering Power Consumption: 1800W
Hovering time: 18min
Working temperature: -10℃󕾘℃
Net weight: 2.0kg
Package weight: 2.7kg

Folding arm design on the Tarot X6 decreased much preparing time before flight. The 4 direction lock folding design with patent make the arm lock on the frame firmly.

The Tarot X6 comes with high strength PCB board; the power plug adopts the AS150 anti-spark connector. The user could get more flight time from the light frame.

The new type motor mount added the brushless ESC installation hole. This is easy to adjust the horizontal of the motor. There is air deflector groove on top; it could bring good heat dissipation effect.

The electronic retractable landing skid has reverse power protection and failsafe function. The retractable landing skid could provide broader views for aerial photography.

The Tarot X6 comes with metal GPS mount. It is plug type, easy to folding.

Black and red color main frame design has strong visual effect. The battery hang under the frame design make the gravity center lower, and it provide more installation space.

ARRIS 5008 335KV High Quality Brushless Motor

Specifications:
Motor Diameter 57.7mm
Motor Length 27.5mm
Stator Diameter 50mm
Stator Length 8mm
Shaft Diameter 4mm
Weight 185.5g
Batteries 6Cells

Top Mounting Holes 12mm*12mm
Bottom Mounting Holes 25mm*25mm

KV		330			Motor Dimension(Dia*Len)		57.7mm*31mm
Configu-ration		12N14P			Weight(g)		183g
Stator Diameter		50mm			idle current(10)@10V(A)		0.42A
Stator Length		8mm			NO.of Cells(Lipo)		6S
Shaft Diameter		6mm
Volts(V)	Prop	Amps(A）	Watts(W)	Thrust(G)	Thrust(OZ)	Efficiency(G/W)	Efficiency(OZ/W)
24V	CF1755	2.0	48.0	565	19.93	11.77	0.42
		4.0	96.0	960	33.86	10.00	0.35
		6.0	144.0	1260	44.44	8.75	0.31
		8.0	192.0	1540	54.32	8.02	0.28
		12.0	288.0	2035	71.78	7.07	0.25
		14.0	336.0	2280	80.42	6.79	0.24
		16.0	384.0	2530	89.24	6.59	0.23
		17.8	427.2	2730	96.30	6.39	0.23
	CF1865	2.0	48.0	590	20.81	12.29	0.43
		6.0	144.0	1320	46.56	9.17	0.32
		12.0	288.0	2070	73.02	7.19	0.25
		14.0	336.0	2300	81.13	6.85	0.24
		16.0	384.0	2500	88.18	6.51	0.23
		20.0	480.0	2820	99.47	5.88	0.21
		24.7	592.8	3300	116.40	5.57	0.20

Flycolor 40A OPTO 2-6S ESC for Multirotors

Main Features:
Small size, the esc can install in the 22mm diameter arms
It can resist high temperature to 100 degree
Didicated electrical path design, it has strong anti-interference
Quick throttle response,super smooth and accurate throttle linearity
Simplify function setting, the default settings is suitable for most of the brushless motors for multirotors
The working frequency is 450Hz, when the Throttle in the middle, the frequency can reach to 600Hz
Signal lost protection
Great security performance. No matter where the radio throttle stick is when power on , the motor will not start immediately.
Remain the throttle range settings, easy to operate, compatible with all the radio operation settings.

Specifications:
Input Voltage:2-6S
Con. Current: 40A
Max. Current (10s): 50A
BEC: No
Dimension: 45 x 27 x 10mm

Tarot High Effeciency 1755 Carbon Fiber Propeller CW/CCW TL2815

• Applicable to three mounting holes brushless motor
• Carbon content 100% TORAY 3K carbon fiber applied
• Well-balanced from factory
• Optimized propeller efficiency and loading stability

Tarot T Series 1855 High Effeciency Carbon Fiber Propeller CW/CCW TL2848

:
Tarot T series carbon fiber propeller adopts big angle of inclination on the propeller root to enhance the overall strength, and improve the efficiency of the propeller. The propeller contains 100% 3K carbon fiber imported from Toray. After high temperature and high pressure prefabricate precision process, the hardness is better than other products on the market. And each pair of carbon fiber propeller is static and dynamic equilibrium.

Specification:
Blended Winglet increase efficiency by 13%
Stronger design in the center, increases the strength and efficiency.
100% carbon TORAY 3K pure carbon fiber applied .
Well-balanced from factory
Optimized propeller efficiency and loading stability .
Diameter : 18 inch
Pitch : 5.5 inch
Weight: 37.3g / PCS
Hole diameter: 4mm (middle), 3mm (side)
Distance from hole to hole: 12mm

With this high quality, high performance and high effective electronic combo for the X6, it will bring you best flight experience during your flight.
