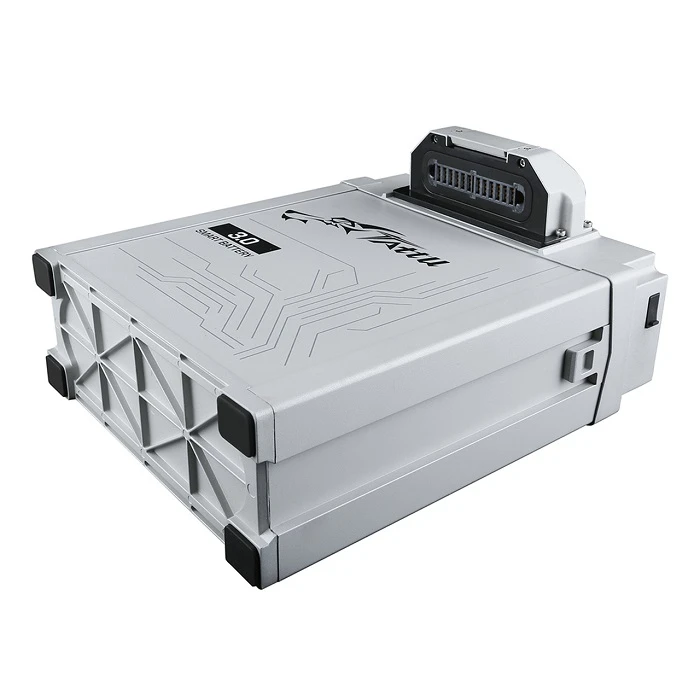

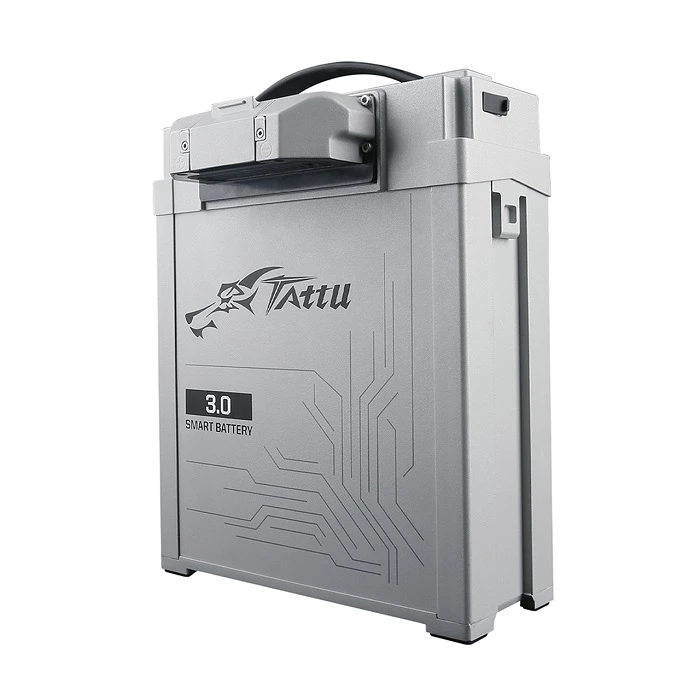

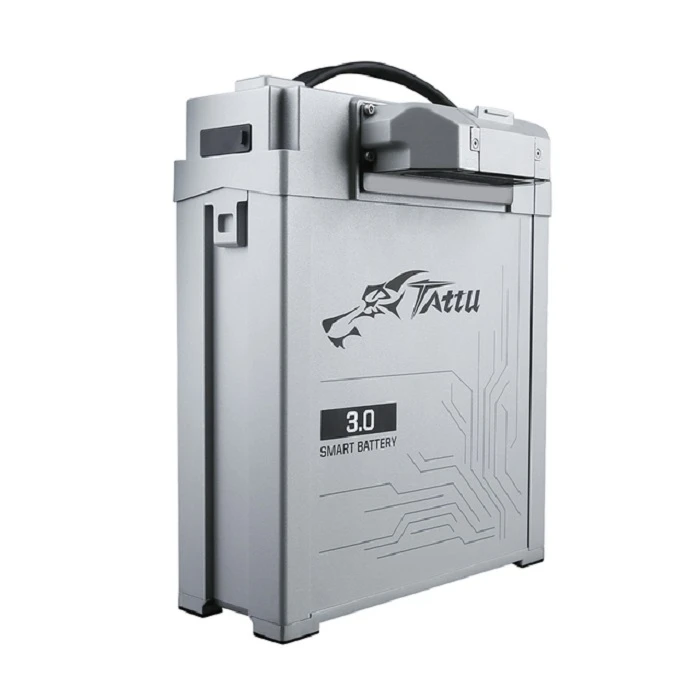

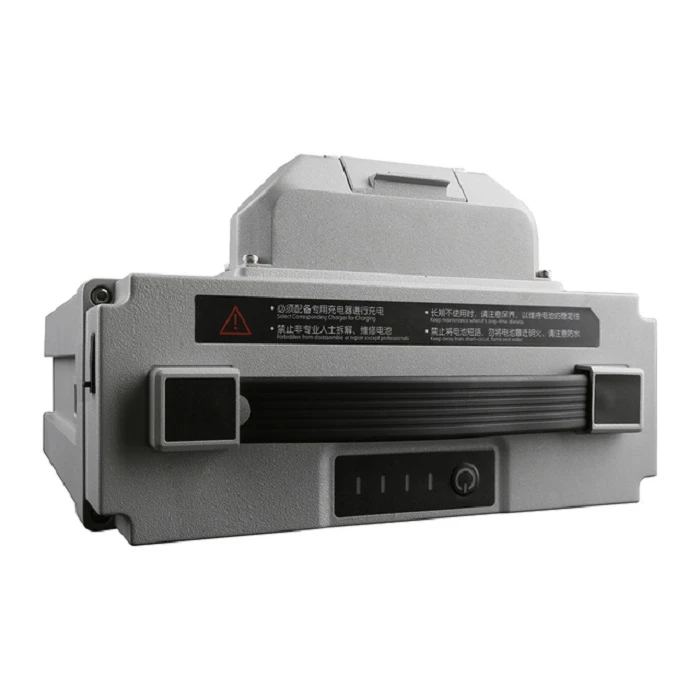

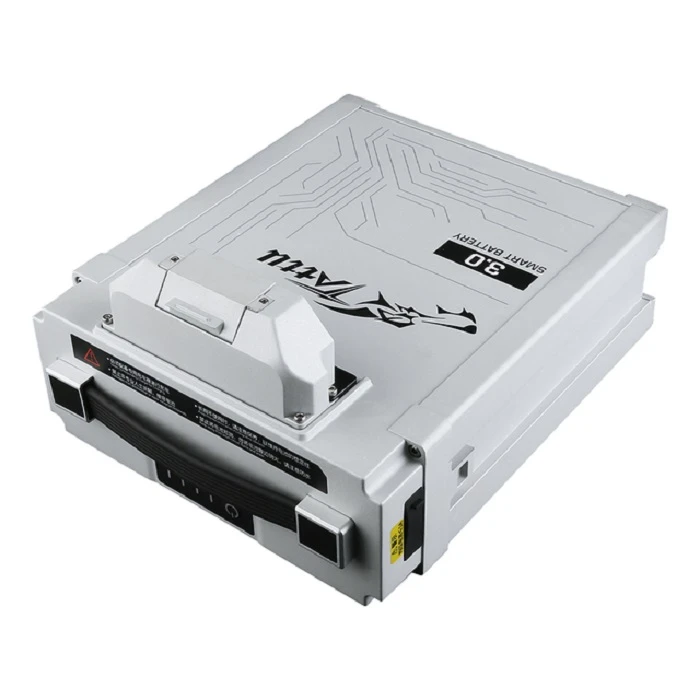

Tattu Plus 3.0 22000mAh 51.8V 25C 14S1P Lipo Smart Battery Pack With Molex Plug

It is created especially for long endurance and high efficiency. Tattu 3.0’s rugged housing and high performance cells provide reliability even in extreme environments. So make the best of your drone’s capabilities. In addition, the on-board battery management system (BMS) notifies you if there is a small change in the battery. The BMS is in control of cell balance, overcharge or undercharge, among other essential conditions, to maximize operating performance and increase the battery pack’s lifetime. BMS is mostly intended for intelligent flight batteries to offer offers security protection.

Cell Features:
Type of cell: high discharge cell, high voltage, both low and high temperatures.
The density of energy: up to 270wh/kg
Life cycle: up to 500 cycles
Temperature operation: -40℃ to +80℃ or -50℃ to +50℃
Charging current: 3C Fast Charging.
Discharging current: continuous current 150A, peak current 200A
It has an anti-spark function
It also has a plug and play installation.

Structure Features:
Shockproof: Shock absorption systems are installed between the cell and the box body and between each cell to reduce or eliminate shock anywhere it occurs. Every shockproof system is isolated from the others, preventing reciprocal attachment and allowing the partial shock to be controlled within a narrow range.
Dustproof & Waterproof: This UAV drone battery can have high-level IP security to avoid dust or water infiltration in various applications. Dust is likely to affect the durability and efficiency of the battery.
Heat dissipation: The Tattu 3.0 batteries have been designed so that there is heat transfer from the region of high concentration to that of low concentration. It, therefore, does not experience overheating. This is aimed at making the battery operate at its optimum.

Specifications:
– Item Brand: Tattu
– Minimum Capacity: 22000mAh
– Configuration: 14S1P / 51.8V / 14Cells
– Discharge Rate: 25C
– Max Burst Discharge Rate: 50C
– Net Weight(±20g): 8800g
– Dimensions: 279mm Length x 236mm Width x 91mm Height
– Charge Plug: Molex-430451600
– Discharge Plug:Molex-46562-2657

Recommend Charger: EV-PEAK U6Q 4 Channel 50A High Current Ultra-fast Charging Smart Charger

Precautions for use:
Since the charger connector is AS150U, this battery does not connect directly, you need a conversion cable of RA0069-P. Of course, you also need a balance cable.
When purchasing this battery, it is recommended that you make sure the drone is equipped with the anti-spark module and the latest version 3.0 plugboard before purchasing this quick release battery.

The smart battery checker is not a standard part of the set, so it is offered as an optional item.
Customers should purchase additional battery checkers as needed, recommended for first-time customers of this set.
The smart battery checker can check the battery status in real time. For example, you can check the voltage difference, which is useful for daily battery maintenance.
